Tektronix AFG31151

Overview

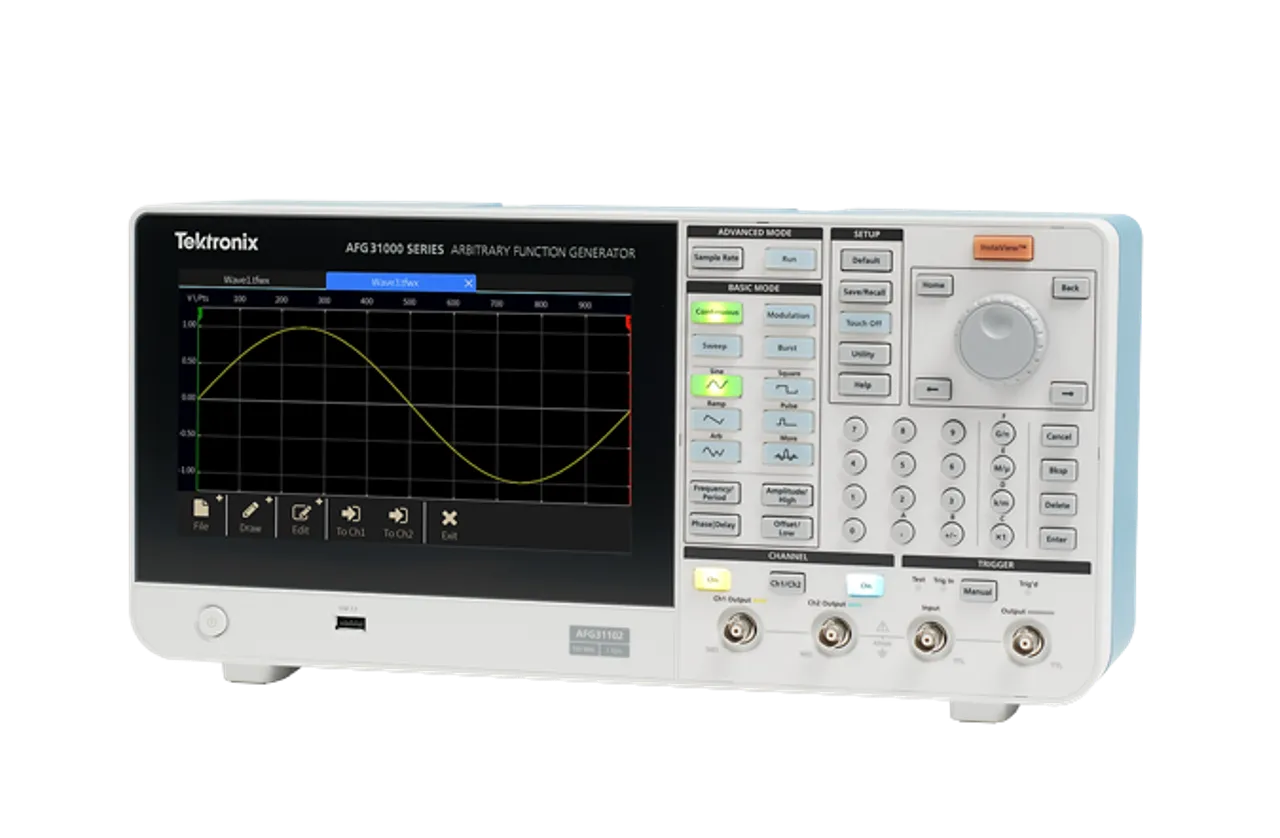

The Tektronix AFG31151 is a high-performance 1-channel, 150 MHz arbitrary/function generator featuring a 9-inch capacitive touchscreen display, real-time waveform monitoring at the device under test, and built-in arbitrary waveform generation. Designed for researchers and engineers who need advanced waveform generation with a modern, intuitive interface.

Key Features

• Frequency range: 1 µHz to 150 MHz
• Maximum sample rate: 2 GS/s with 14-bit vertical resolution
• Memory depth: 16 MSa/ch (128 MSa/ch optional)
• Output: 1 mVp-p to 5 Vp-p into 50 ohms
• 9-inch capacitive touchscreen with intuitive smart device-like interface
• InstaView technology for real-time waveform monitoring at the DUT
• Basic mode for traditional function and arbitrary waveform generation
• Advanced/Sequence mode with up to 256 waveform steps
• Built-in ArbBuilder tool for waveform creation and editing without a PC
• Multi-unit synchronization capabilities
• Output overvoltage and overcurrent protection
• Compatible with TekBench software for setup, control, and analysis
• 3-year warranty included

Applications

• Analog circuit characterization and filter/amplifier frequency response testing
• Replication of real-world signals captured with oscilloscopes
• Function verification and performance characterization
• Clock and system synchronization
• Power device drive pulses
• Advanced research and education
• Embedded circuit design and test
• General-purpose signal generation

Included Accessories

• 3-foot BNC shielded cable
• 3-foot USB A-to-B cable
• Power cord
• NIST-traceable calibration certificate
