Tektronix AFG31102 Arbitrary Function Generator

Overview

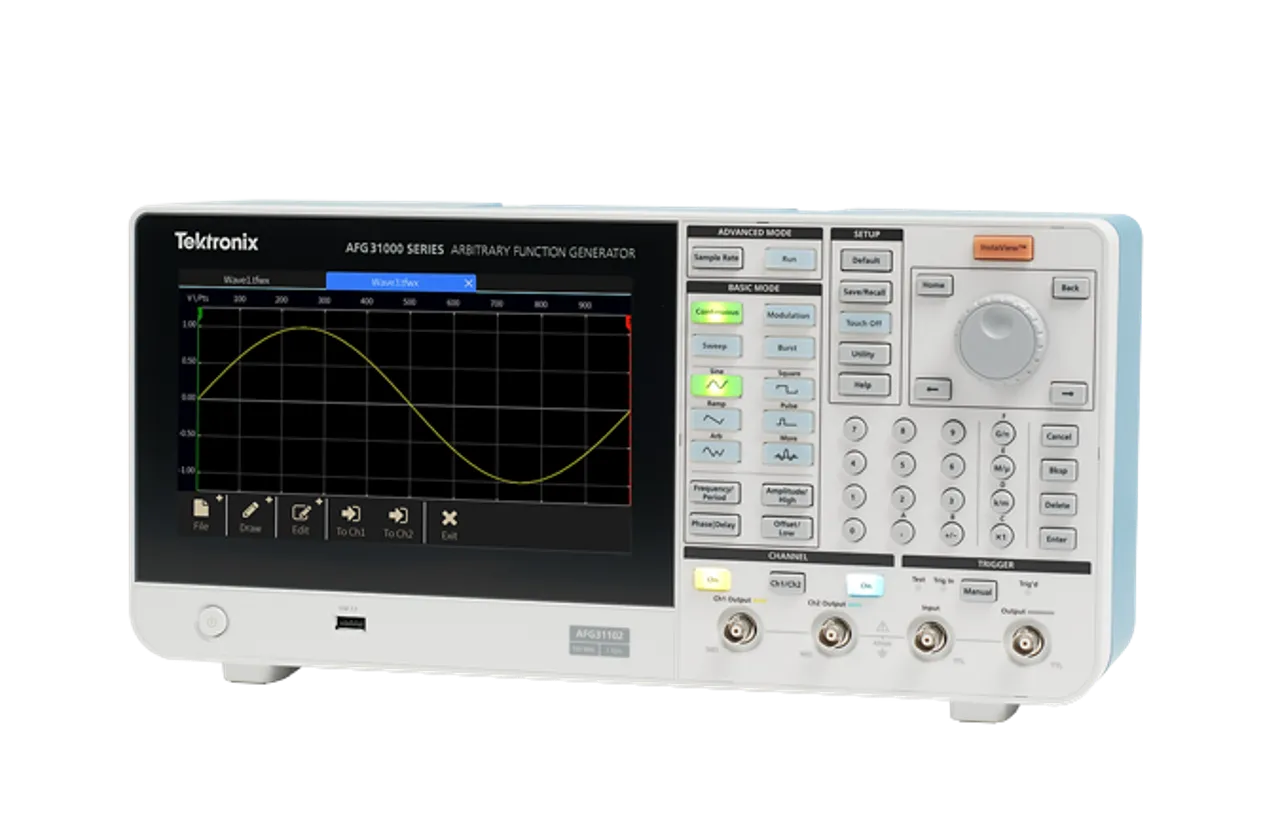

The Tektronix AFG31102 is a high-performance 2-channel arbitrary function generator offering frequency generation from 1 µHz to 100 MHz. Designed for researchers, engineers, and educators, it combines advanced waveform generation with an intuitive 9-inch capacitive touchscreen interface and real-time waveform monitoring at the device under test.

Key Features

• Frequency range: 1 µHz to 100 MHz, 2 channels
• Maximum sample rate: 2 GSa/s with 14-bit vertical resolution
• Memory depth: 16 MSa/ch (128 MSa/ch optional)
• Output: 1 mVp-p to 10 Vp-p into 50 ohms
• 9-inch capacitive touchscreen with smartphone-like interface
• InstaView technology to monitor waveforms at the device under test in real time
• Waveform sequencing with up to 256 steps in Advanced mode
• Built-in ArbBuilder tool for creating and editing arbitrary waveforms without a PC
• Multi-unit synchronization for applications requiring more than 2 channels
• Overload protection on outputs to minimize instrument damage
• Compatible with TekBench software for setup, control, and analysis
• 3-year warranty

Operating Modes

• Basic Mode: Traditional function and arbitrary waveform generation with simplified frequency adjustment
• Advanced Mode: Complex waveform sequencing with up to 256 steps, total waveform length up to 16 Mpts/ch, and variable sample rate technology

Applications

• Analog circuit characterization and frequency response testing
• Replication of real-world signals captured from oscilloscopes
• Function verification and performance characterization
• Clock and system synchronization
• Pulse generation for power device driving
• Advanced research and education
• Embedded circuit design and test
• General-purpose signal generation

Included Accessories

• 3-ft. BNC shielded cable (012-1732-xx)
• 3-ft. USB A to B cable (174-4401-xx)
• Power cord
• NIST-traceable calibration certificate
• Compliance, installation, and safety instructions
