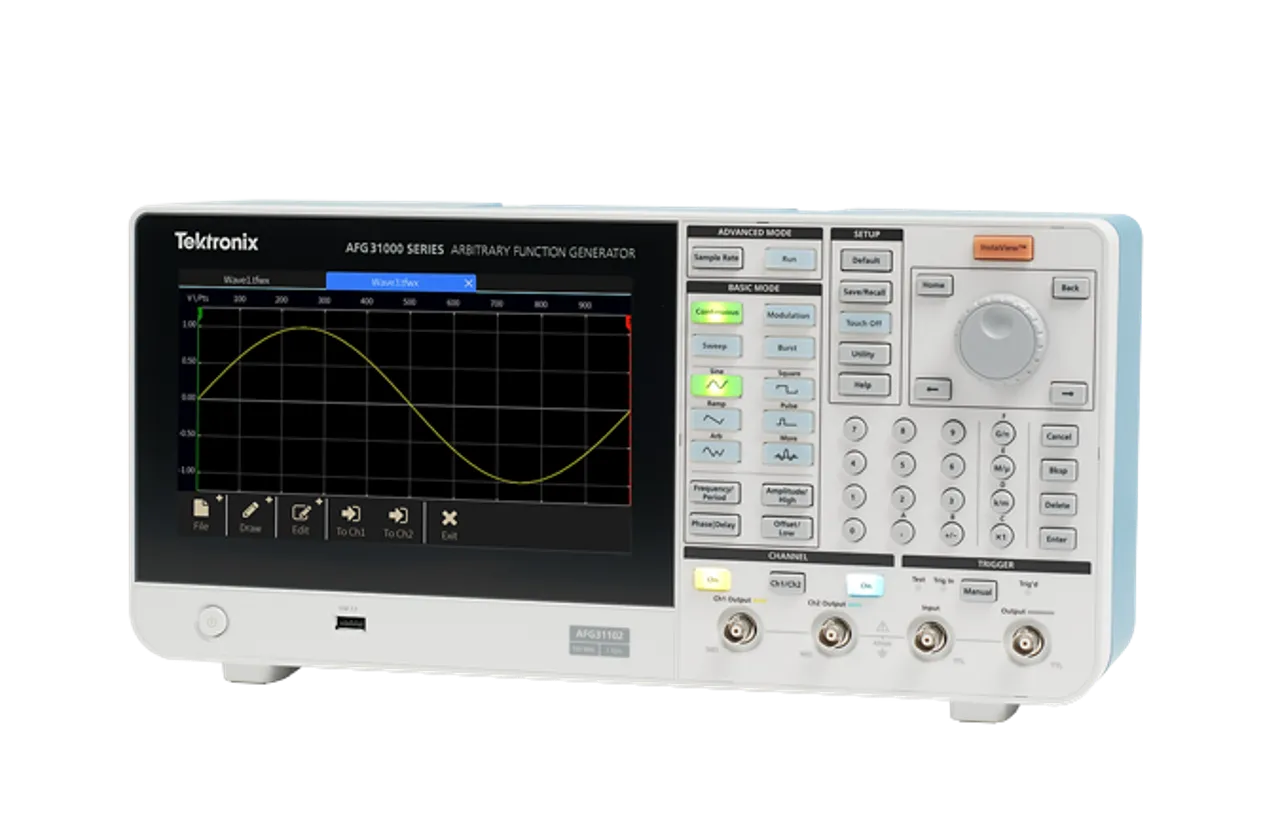

Tektronix AFG31101 Arbitrary Function Generator
Request a quote
Tektronix AFG31101 is a 100 MHz, 1-channel arbitrary function generator with 1 GSa/s sample rate, 16 MSa memory depth, and 9-inch touchscreen interface.
Product details
| Model | AFG31101 |
| Manufacturer | Tektronix |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Tektronix AFG31101 is a high-performance 100 MHz, 1-channel arbitrary function generator with advanced waveform generation capabilities, real-time monitoring, and an intuitive 9-inch capacitive touchscreen interface. It combines traditional function generation with arbitrary waveform creation, making it suitable for researchers, engineers, and educational applications requiring sophisticated signal generation.
Key Features
- Frequency range: 1 µHz to 100 MHz
- Sample rate: 1 GSa/s maximum
- Memory depth: 16 MSa/ch
- Vertical resolution: 14-bit
- Output range: 1 mVp-p to 10 Vp-p into 50 ohms
- 9-inch capacitive touchscreen with intuitive controls
- Real-time waveform monitoring at device under test (InstaView technology)
- Built-in ArbBuilder tool for arbitrary waveform creation and editing
- Sequencing option supports up to 256 waveforms with complex timing
- Multi-unit synchronization capability
- Compatible with TekBench software for setup, control, and analysis
- Overvoltage and overcurrent protection on outputs
- 3-year warranty
Applications
- Analog circuit characterization
- Replication of real-world signals
- Function verification and performance characterization
- Clock and system synchronization
- Pulses to drive power devices
- Advanced research and education
- Embedded circuit design and test
- General purpose signal generation
Included Accessories
- 3-ft. BNC shielded cable
- 3-ft. USB A to B cable
- Power cord
- NIST-traceable calibration certificate
- Compliance, installation, and safety instructions
Specifications
| Channel/Port Count | 1 |
| High Frequency (range) | 10MHz <= 100MHz |
| Frequency | 100 MHz |
| Sampling Rate | 1 GS/s |
| Number of Channels | 1 Channel |
| Vertical Resolution | 14 bit |
| Memory | 16 Mpts |
| Series | AFG31000 Series |
| Dimensions | 7.55 x 16.25 x 5.64" |
| Display Type | 9 GUI/Large Touch |
| Measurement Range | -10 V |
| Noise Level | -3 dB |
| Voltage DC Range | -5 V |
| Warranty | 3 Years |
