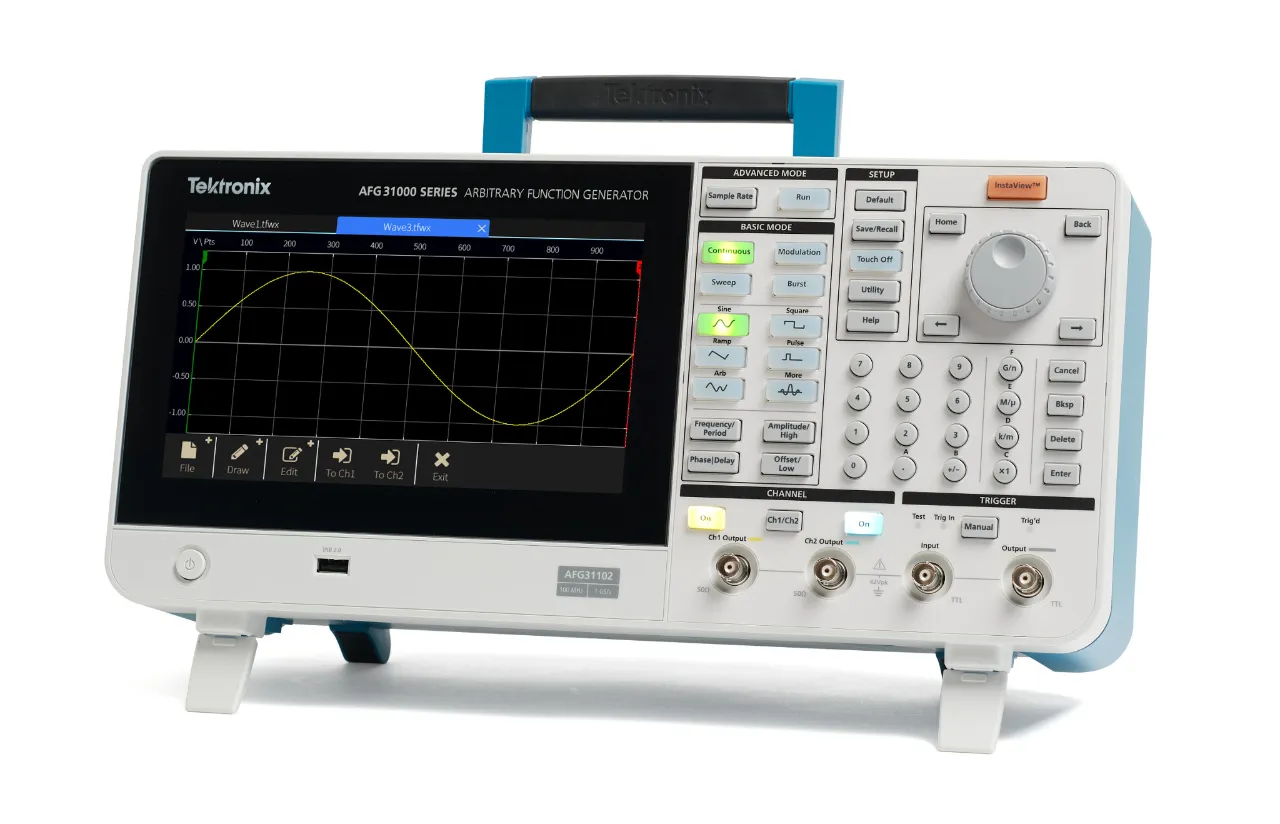

Tektronix AFG31052 Arbitrary Waveform Generator

Overview

The Tektronix AFG31052 is a 50 MHz, 2-channel arbitrary function generator designed for researchers and engineers who need advanced waveform generation with real-time monitoring capabilities. It features a large 9-inch capacitive touchscreen interface, built-in arbitrary waveform creation, and the ability to generate complex multi-waveform sequences for comprehensive signal testing.

Key Features

• Frequency range: 1 µHz to 50 MHz with 2 independent channels
• Maximum sample rate: 1 GSa/s with 14-bit vertical resolution
• Memory depth: 16 MSa/ch (expandable to 128 MSa/ch with sequencing option)
• Output: 1 mVp-p to 10 Vp-p into 50 ohms
• 9-inch capacitive touchscreen with smartphone-like interface
• InstaView technology displays actual waveform at device under test in real time
• Built-in ArbBuilder tool for creating and editing arbitrary waveforms without a PC
• Programmable waveform sequencing with up to 256 steps
• Multi-unit synchronization for coordinating multiple generators
• Overvoltage and overcurrent output protection
• Compatible with TekBench software for educational applications
• 3-year warranty

Applications

• Analog circuit characterization and filter/amplifier frequency response testing
• Replication of real-world signals captured by oscilloscopes
• Function verification and performance characterization of circuits
• Clock and system synchronization
• Pulse generation for power device driving
• Advanced research and educational applications
• Embedded circuit design and testing
• General-purpose signal generation

Included Accessories

• 3-ft. BNC shielded cable (012-1732-xx)
• 3-ft. USB A to B cable (174-4401-xx)
• Power cord
• NIST-traceable calibration certificate
• Compliance, installation, and safety instructions
