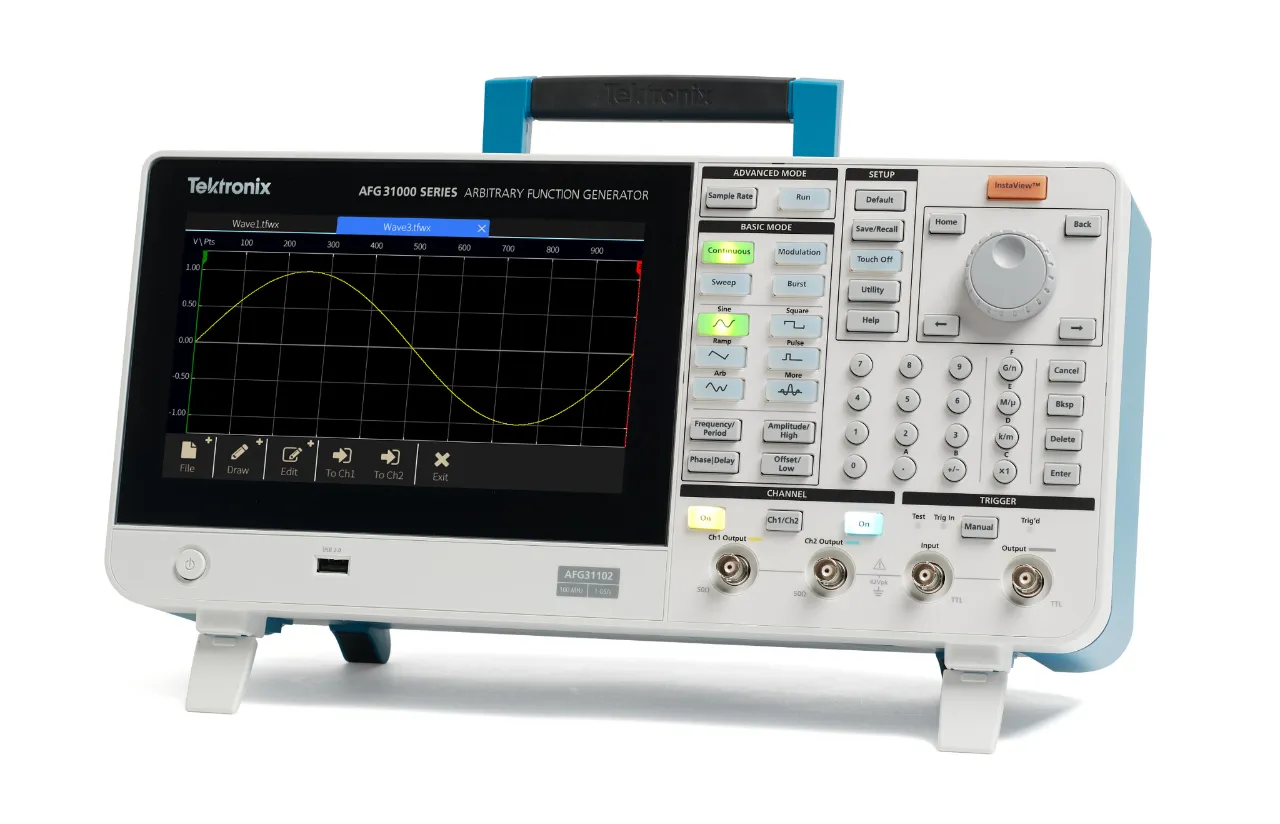

Tektronix AFG31051 Arbitrary Function Generator
Tektronix AFG31051 50 MHz arbitrary function generator with 1 GSa/s sample rate, 16 MSa memory, 9-inch touchscreen, and built-in waveform creation with real-time output monitoring.
Product details
| Model | AFG31051 |
| Manufacturer | Tektronix |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Tektronix AFG31051 is a high-performance one-channel arbitrary function generator delivering 50 MHz frequency coverage with 1 GSa/s maximum sample rate and 16 MSa of memory depth. Featuring a large 9-inch capacitive touchscreen display, built-in waveform creation tools, and real-time output monitoring (InstaView technology), the AFG31051 simplifies arbitrary waveform generation for research, education, and engineering applications.
Key Features
- Frequency range: 1 µHz to 50 MHz (1-channel)
- Sample rate: 1 GSa/s maximum
- Memory depth: 16 MSa per channel
- Output: 1 mVp-p to 10 Vp-p into 50 ohms
- Vertical resolution: 14-bit
- 9-inch capacitive touchscreen with smartphone-like interface
- InstaView technology for real-time waveform monitoring at device under test
- Built-in ArbBuilder waveform creation tool (PC not required)
- Sequencing capability with up to 256 steps for complex waveforms
- Variable sample rate technology preserves waveform fidelity
- Multi-unit synchronization for multi-channel applications
- Output overvoltage and overcurrent protection
- Compatible with TekBench software for education and analysis
- 3-year warranty
Operating Modes
Basic Mode
Generates traditional functions and arbitrary waveforms with touchscreen and front-panel controls. Allows frequency adjustment without concerns for waveform length or sample rate, useful for analog characterization and digital clock generation.
Advanced Mode (Sequencing)
Supports complex waveforms by composing sequences of up to 256 waveforms with total length up to 16 Mpts/ch. Features include repeat, go-to, wait, jump, and triggered events. Variable sample rate technology ensures every sample is output exactly once per cycle.
Applications
- Analog circuit characterization and filter/amplifier response testing
- Replication of real-world signals captured from oscilloscopes
- Function verification and performance characterization
- Clock and system synchronization
- Power device drive pulses
- Advanced research and education
- Embedded circuit design and test
- General purpose signal generation
Included Accessories
- 3-foot BNC shielded cable (012-1732-xx)
- 3-foot USB Type-A to Type-B cable (174-4401-xx)
- Power cord
- NIST-traceable calibration certificate
- Compliance, installation, and safety instructions
Specifications
| Channel/Port Count | 1 |
| High Frequency (range) | 10MHz <= 100MHz |
| Frequency | 50 MHz |
| Sampling Rate | 1 GS/s |
| Number of Channels | 1 Channel |
| Vertical Resolution | 14 bit |
| Memory | 16 Mpts |
| Series | AFG31000 Series |
| Dimensions | 7.55 x 16.25 x 5.64" |
| Display Type | 9 GUI/Large Touch |
| Measurement Range | -10 V |
| Noise Level | -3 dB |
| Voltage DC Range | -5 V |
| Warranty | 3 Years |
