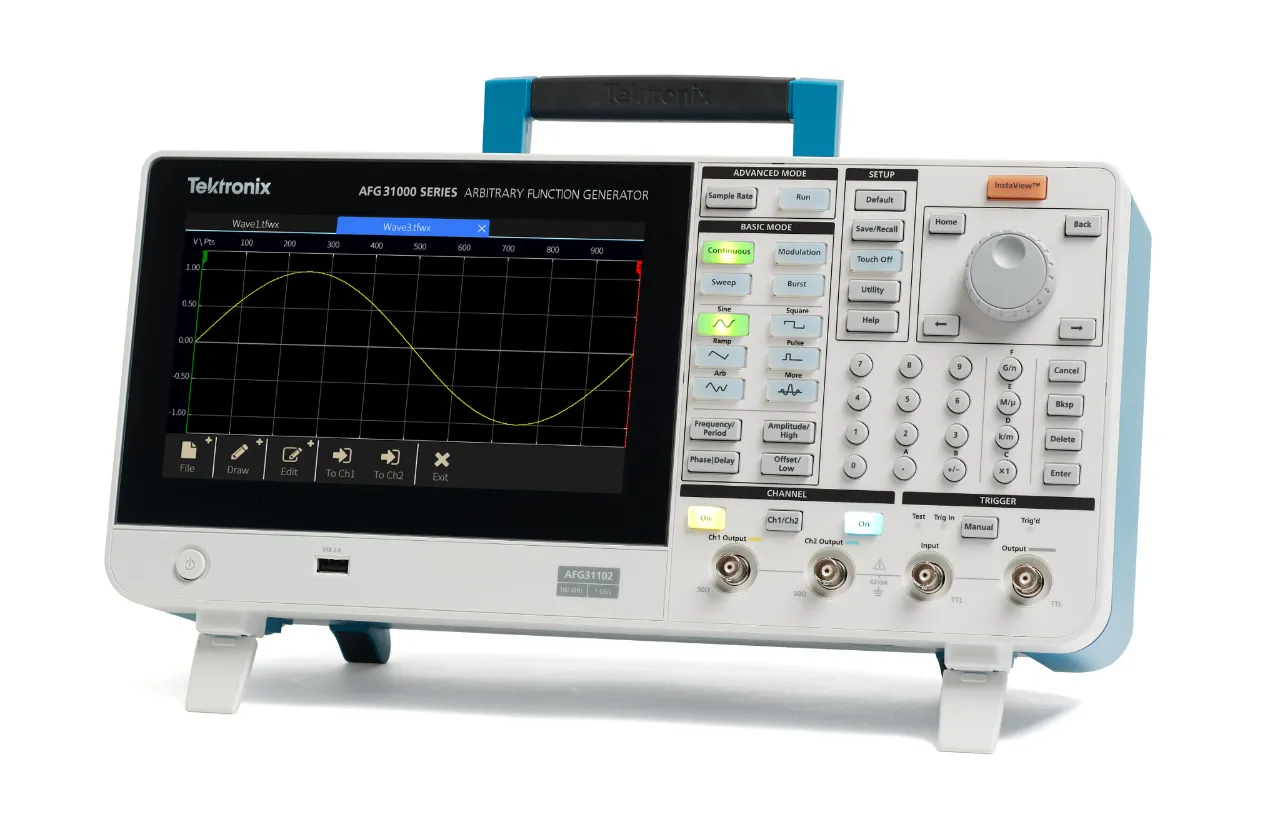

Tektronix AFG31022 Arbitrary Function Generator

Overview

The Tektronix AFG31022 is a high-performance 25 MHz, 2-channel arbitrary function generator designed for signal generation, waveform verification, and advanced research applications. Featuring a 9-inch capacitive touchscreen interface and built-in arbitrary waveform generation capabilities, the AFG31022 simplifies complex test setups with intuitive controls and advanced monitoring features.

Key Features

• 1 µHz to 25 MHz frequency range, 2-channel output
• Maximum sample rate: 250 MSa/s with 16 MSa/ch memory depth
• 14-bit vertical resolution
• Output range: 1 mVp-p to 10 Vp-p into 50 ohms
• 9-inch capacitive touchscreen with intuitive navigation
• InstaView technology for real-time waveform monitoring at the device under test
• Programmable waveform sequencing with up to 256 steps (optional advanced mode)
• Built-in ArbBuilder tool for waveform creation and editing without a PC
• Multi-unit synchronization for complex multi-channel applications
• Output protection against overvoltage and overcurrent
• Compatible with TekBench software for educational and research use
• 3-year warranty

Applications

• Analog circuit characterization and filter/amplifier frequency response testing
• Replication of real-world signals captured from oscilloscopes
• Function verification and performance characterization
• Clock and system synchronization
• Pulses to drive power devices
• Advanced research and education
• Embedded circuit design and test
• General-purpose signal generation

Included Accessories

• 3-ft. BNC shielded cable (012-1732-xx)
• 3-ft. USB A to B cable (174-4401-xx)
• Power cord
• NIST-traceable calibration certificate
• Compliance, installation, and safety instructions
