Tektronix AFG31021 Arbitrary Function Generator
Request a quote
Tektronix AFG31021 is a 25 MHz single-channel generator with 250 MS/s sample rate, 16 MSa memory, real-time monitoring, and advanced waveform sequencing.
Product details
| Model | AFG31021 |
| Manufacturer | Tektronix |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview

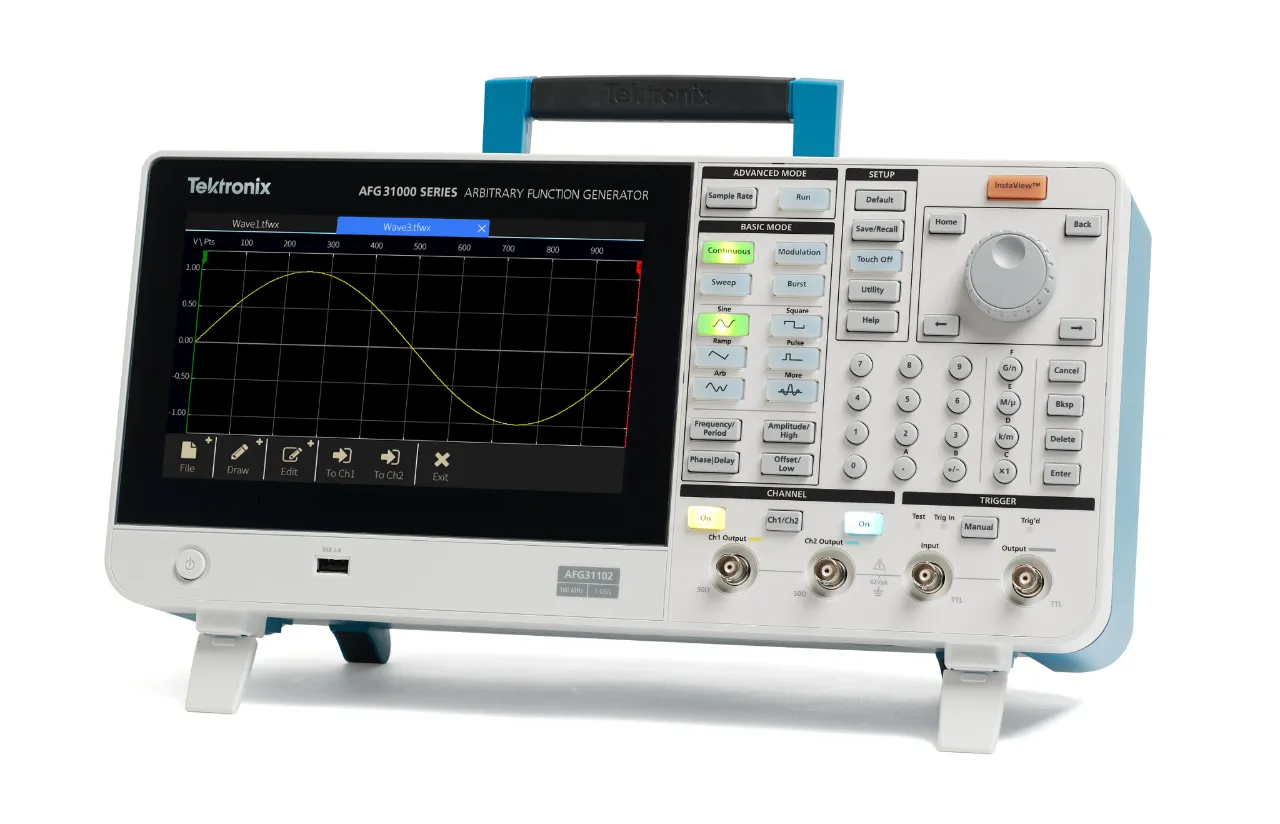

The Tektronix AFG31021 is a single-channel 25 MHz arbitrary function generator featuring a large 9-inch capacitive touchscreen interface and built-in waveform creation tools. Designed for researchers and engineers, the AFG31021 provides advanced waveform generation capabilities with real-time monitoring and programmable sequencing for complex test scenarios without requiring a PC.
Key Features
- Frequency range: 1 µHz to 25 MHz
- Maximum sample rate: 250 MSa/s with 16 MSa/ch memory depth
- Output amplitude: 1 mVp-p to 10 Vp-p into 50 ohms
- 14-bit vertical resolution
- 9-inch capacitive touchscreen display with smartphone-like navigation
- InstaView technology for real-time monitoring at device under test
- Programmable waveform sequencing: up to 256 steps with optional 128 Mpts/ch memory
- Built-in ArbBuilder tool for waveform creation and editing
- Basic and Advanced operation modes
- Variable sample rate technology for signal fidelity
- Multi-unit synchronization capability
- USB and Ethernet connectivity
- Output overvoltage and overcurrent protection
- Compatible with TekBench educational software
Applications
- Analog circuit characterization and frequency response testing
- Replication of real-world signals from oscilloscopes or third-party software
- Function verification and performance characterization
- Clock and system synchronization
- Pulse generation for power device testing
- Advanced research and development
- Embedded circuit design and testing
- General-purpose signal generation and education
Included Accessories
- 3-ft BNC shielded cable (012-1732-xx)
- 3-ft USB A-to-B cable (174-4401-xx)
- Power cord
- NIST-traceable calibration certificate
- Compliance, installation, and safety instructions
Specifications
| Channel/Port Count | 1 |
| High Frequency (range) | 10MHz <= 100MHz |
| Frequency | 25 MHz |
| Sampling Rate | 250 MS/s |
| Number of Channels | 1 Channel |
| Vertical Resolution | 14 bit |
| Memory | 16 Mpts |
| Series | AFG31000 Series |
| Accessories | ACD4000B |
| Dimensions | 7.55 x 16.25 x 5.64" |
| Display Type | 9 GUI/Large Touch |
| Measurement Range | -10 V |
| Noise Level | -3 dB |
| Voltage DC Range | -5 V |
| Warranty | 3 Years |
