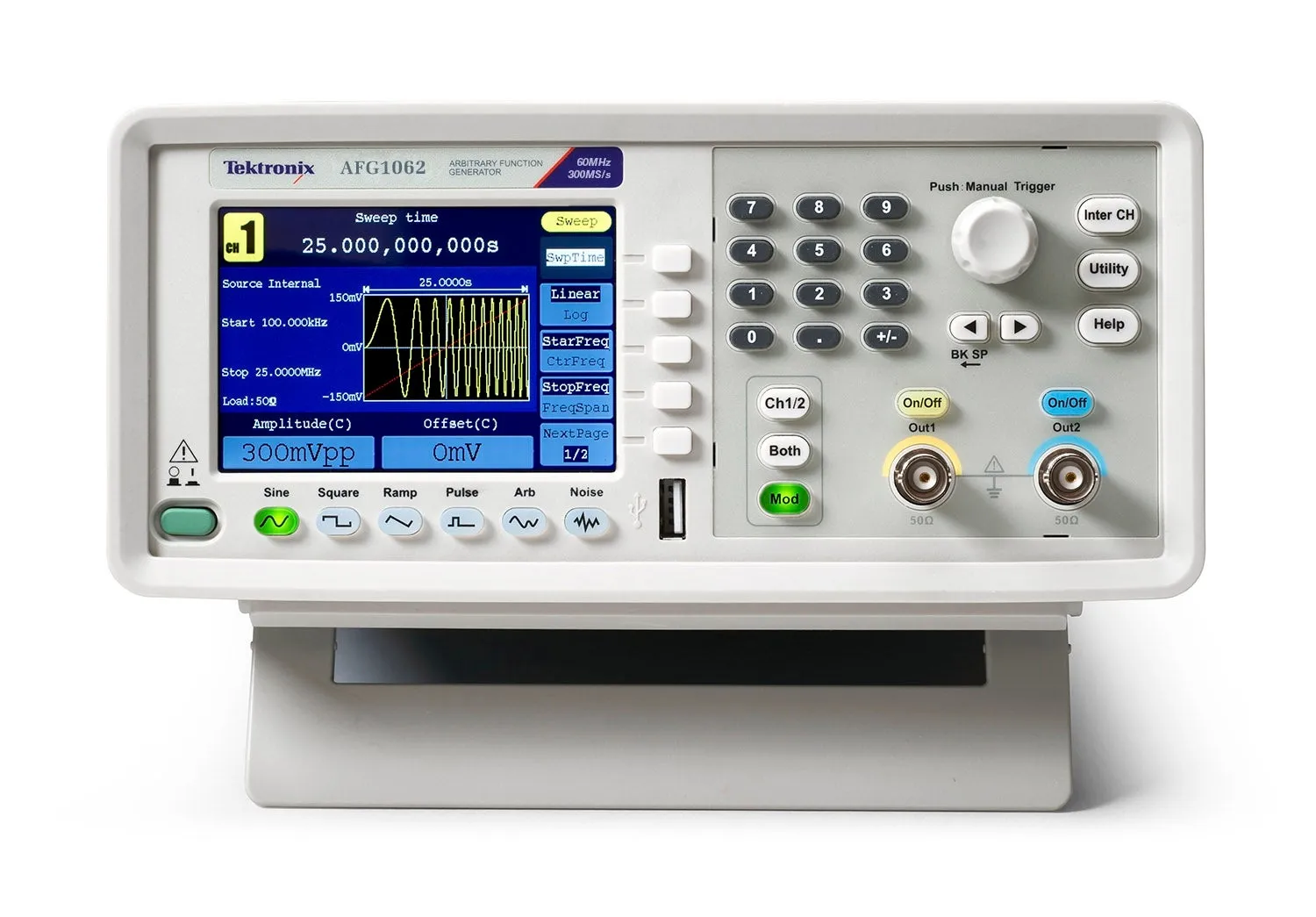

Tektronix AFG1062 Arbitrary Function Generator
60 MHz dual-channel arbitrary function generator with 300 MS/s sampling, 1M-point memory, 14-bit resolution, and integrated frequency counter for precise signal generation and testing.
Product details
| Model | AFG1062 |
| Manufacturer | Tektronix |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Tektronix AFG1062 is a dual-channel arbitrary function generator designed for advanced education and high-frequency electronics testing. With 60 MHz bandwidth, 300 MS/s sampling rate, and 14-bit vertical resolution, it delivers precise waveform generation across an extended frequency range. The instrument supports continuous, sweeping, burst, and multiple modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM), making it suitable for experimental work, communications testing, and sensor simulation at higher frequencies.
Key Features
- Dual-channel operation with 1 μHz to 60 MHz output frequency range
- Continuous, sweeping, burst, and modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM)
- 64 MB internal non-volatile memory for arbitrary waveform storage
- 1 million point arbitrary waveform record length for complex signal generation
- Built-in 200 MHz frequency counter with 6-digit resolution for frequency, period, pulse width, and duty cycle measurement
- 3.95-inch TFT LCD display with intuitive front panel and menu navigation
- USB host/device interface for memory expansion and remote control
- Free ArbExpress software for custom waveform editing via USB memory stick
- 50 built-in standard and arbitrary waveforms
- Compatible with TekSmartLab educational platform
- Standard 5-year warranty
Applications
- Electric and electronics experiments
- Communications experiments
- Sensor simulation
- Functional test
Included Accessories
- Safety and Compliance Instructions
- Documentation CD with Quick Start User Manual, Programmer Manual, and Specifications Manual
- USB cable (Type A to Type B)
- BNC cables (x2)
- Power cord
- Certificate of calibration
- Fuses (0.5 A and 1 A, 5 x 20 mm, time-delay)
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 10MHz <= 100MHz |
| Frequency | 60 MHz |
| Sampling Rate | 300 MS/s |
| Number of Channels | 2 Channel |
| Vertical Resolution | 14 bit |
| Memory | 1 Mpts |
| Series | AFG1000 Series |
| Dimensions | 9.0 x 4.4 x 12.1" |
| Display Type | 3.95 LCD, TFT |
| Interface | Other, USB |
| Warranty | 5 Years |
