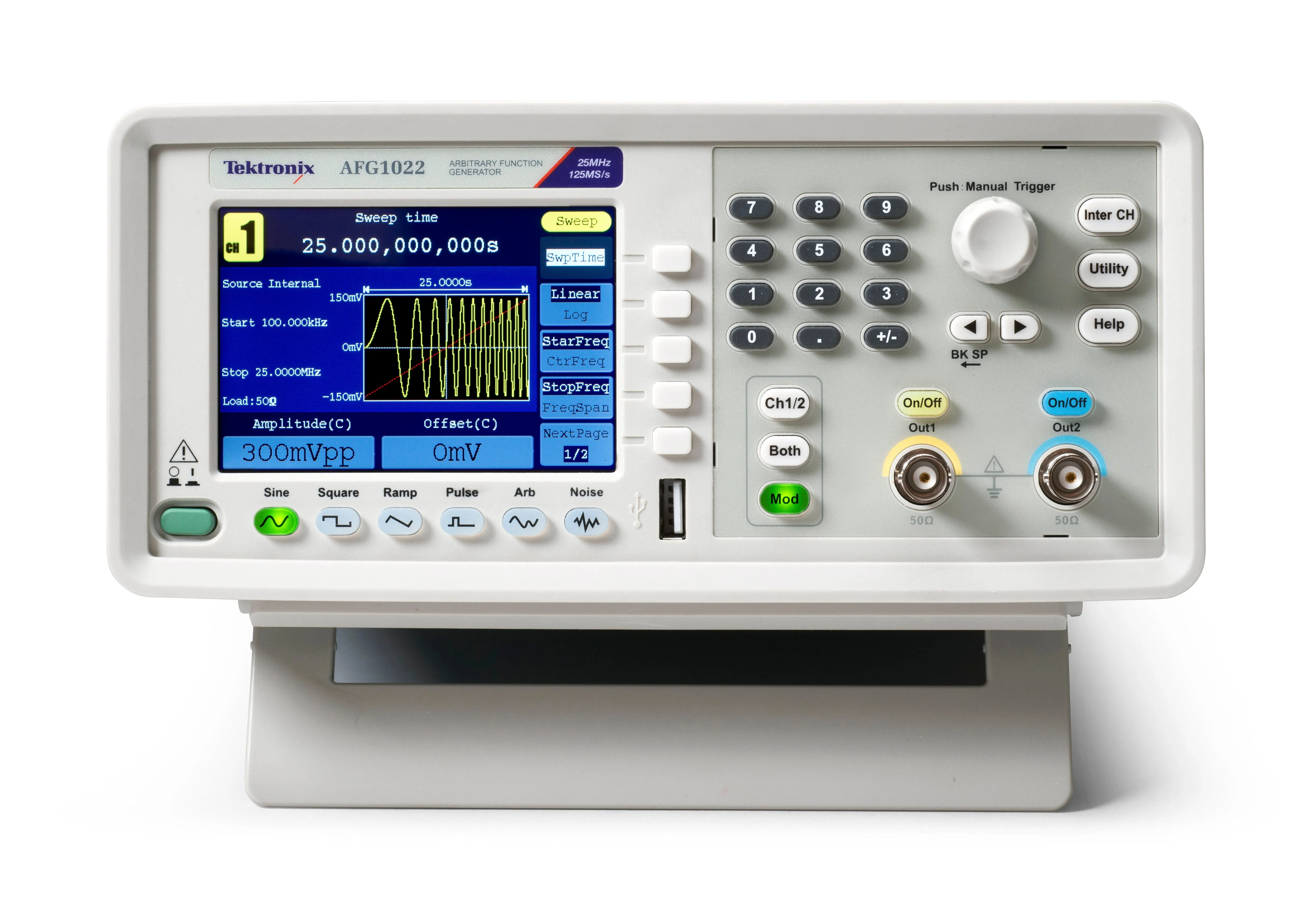

Tektronix AFG1022 Arbitrary Function Generator
Request a quote
25 MHz dual-channel arbitrary function generator with 125 MS/s sampling, 8k-point memory, 14-bit resolution, and integrated frequency counter for electronics testing and signal generation.
Product details
| Model | AFG1022 |
| Manufacturer | Tektronix |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Tektronix AFG1022 is a dual-channel arbitrary function generator designed for education and electronics testing. With 25 MHz bandwidth, 125 MS/s sampling rate, and 14-bit vertical resolution, it delivers precise waveform generation across a wide frequency range. The instrument supports continuous, sweeping, burst, and multiple modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM), making it suitable for experimental work, communications testing, and sensor simulation.
Key Features
- Dual-channel operation with 1 μHz to 25 MHz output frequency range
- Continuous, sweeping, burst, and modulation modes (AM, FM, PM, ASK, FSK, PSK, PWM)
- 64 MB internal non-volatile memory for arbitrary waveform storage
- Built-in 200 MHz frequency counter with 6-digit resolution for frequency, period, pulse width, and duty cycle measurement
- 3.95-inch TFT LCD display with intuitive front panel and menu navigation
- USB host/device interface for memory expansion and remote control
- Free ArbExpress software for custom waveform editing via USB memory stick
- 50 built-in standard and arbitrary waveforms
- Compatible with TekSmartLab educational platform
- Standard 5-year warranty
Applications
- Electric and electronics experiments
- Communications experiments
- Sensor simulation
- Functional test
Included Accessories
- Safety and Compliance Instructions
- Documentation CD with Quick Start User Manual, Programmer Manual, and Specifications Manual
- USB cable (Type A to Type B)
- BNC cables (x2)
- Power cord
- Certificate of calibration
- Fuses (0.5 A and 1 A, 5 x 20 mm, time-delay)
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 10MHz <= 100MHz |
| Frequency | 25 MHz |
| Sampling Rate | 125 MS/s |
| Number of Channels | 2 Channel |
| Vertical Resolution | 14 bit |
| Memory | 8 kpts |
| Series | AFG1000 Series |
| Accessories | CT4036 |
| Dimensions | 9.0 x 4.4 x 12.1" |
| Display Type | 3.95 LCD, TFT |
| Interface | Other, USB |
| Warranty | 5 Years |
