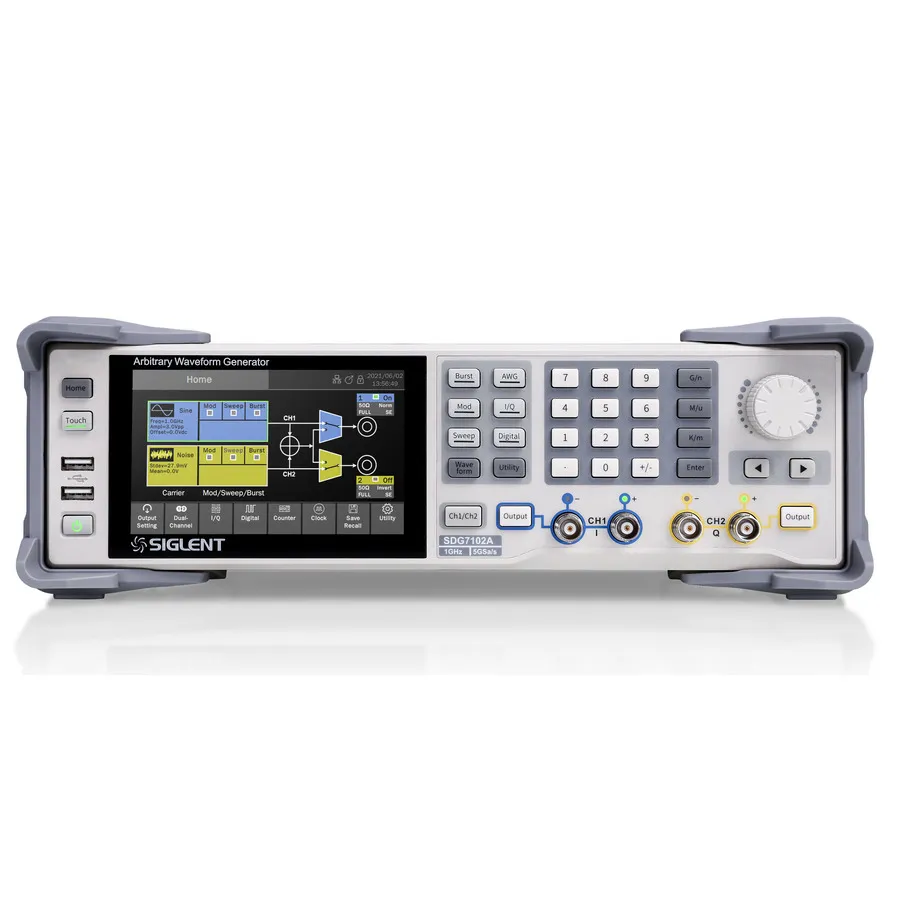

Siglent SDG7102A Arbitrary Waveform Generator

Overview

The Siglent SDG7102A is a dual-channel arbitrary waveform generator providing the highest bandwidth in the SDG7000A series. With 1 GHz bandwidth, 5 GSa/s sample rate, and 14-bit vertical resolution, it is ideally suited for demanding applications requiring maximum frequency coverage and signal fidelity.

Key Features

• 1 GHz maximum bandwidth with 5 GSa/s sample rate
• Dual-channel differential and single-ended output with 16-bit LVDS/LVTTL digital bus
• 14-bit vertical resolution with up to 512 Mpts memory depth per channel
• Generates arbitrary waveforms, continuous wave, pulses, noise, and PRBS patterns
• Vector signal generation with up to 500 MS/s symbol rate
• Advanced modulation, sweeping, and bursting capabilities
• Dual-channel operation with tracking, coupling, copying, and superposition functions
• 5-inch capacitive touchscreen (800x480) with mouse and keyboard support
• High-precision frequency counter and multiple interfaces (10MHz In/Out, Trigger In/Out, Markers)
• SCPI command support for easy system integration

Applications

• Ultra-high-frequency component testing and characterization
• Advanced RF and microwave signal generation
• Complex waveform simulation and analysis
• High-performance system integration and validation
• Research and development in signal processing and communications

Included Accessories

• Power Cord
• USB Cable
• BNC Cable
• Wireless Mouse
