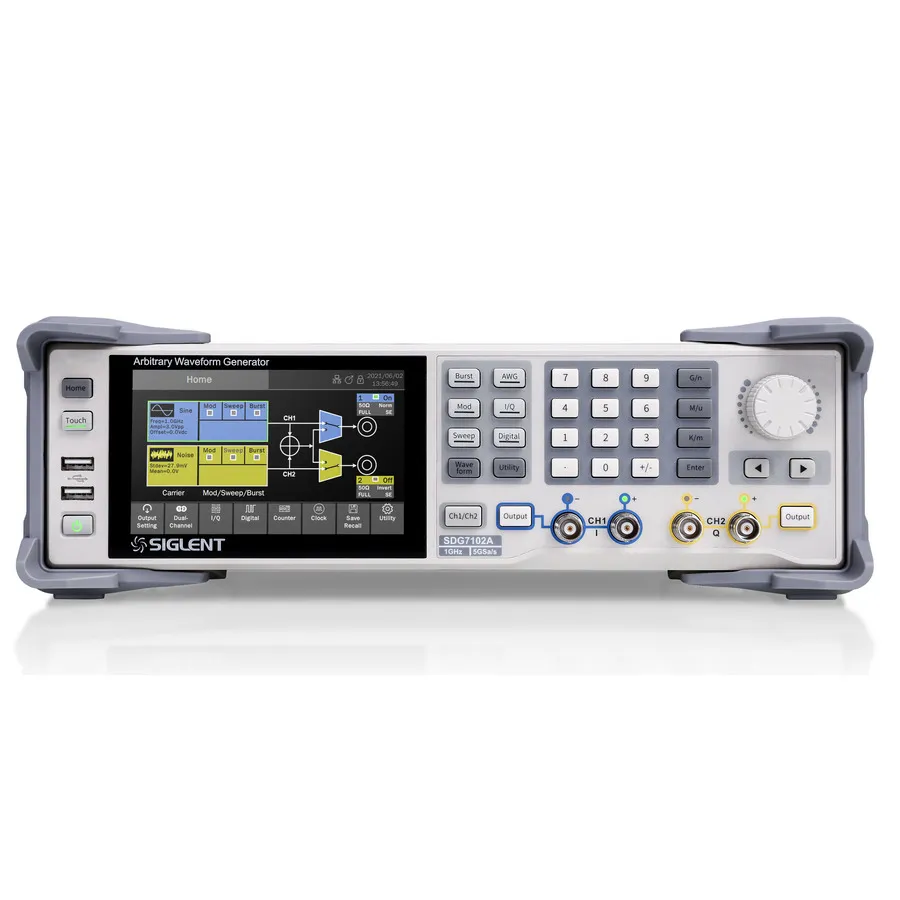

Siglent SDG7032A/10M_OCXO_L Arbitrary Waveform Generator

Overview

The Siglent SDG7032A/10M_OCXO_L is a dual-channel arbitrary waveform generator with factory-installed 10 MHz high-precision Oven Controlled Crystal Oscillator (OCXO) timebase. With 350 MHz bandwidth, 5 GSa/s sample rate, and 14-bit vertical resolution, it provides superior frequency stability and accuracy for advanced signal generation applications.

Key Features

• 10 MHz high-precision OCXO timebase factory-installed (cannot be added after purchase)
• 350 MHz bandwidth with 5 GSa/s maximum sample rate
• Dual-channel differential and single-ended output with 16-bit LVDS/LVTTL digital bus
• 14-bit vertical resolution with up to 512 Mpts memory depth per channel
• Generates arbitrary waveforms, continuous wave, pulses, noise, and PRBS patterns
• Vector signal generation with up to 500 MS/s symbol rate
• Advanced modulation, sweeping, and bursting capabilities
• Dual-channel operation with tracking, coupling, copying, and superposition functions
• 5-inch capacitive touchscreen (800x480) with mouse and keyboard support
• High-precision frequency counter and multiple interfaces (10MHz In/Out, Trigger In/Out, Markers)
• SCPI command support for easy system integration

Applications

• High-precision signal generation and calibration
• RF and microwave signal generation with stable frequency
• Component testing requiring frequency stability
• System integration and functional testing
• Research and development in signal processing

Included Accessories

• Power Cord
• USB Cable
• BNC Cable
• Wireless Mouse
