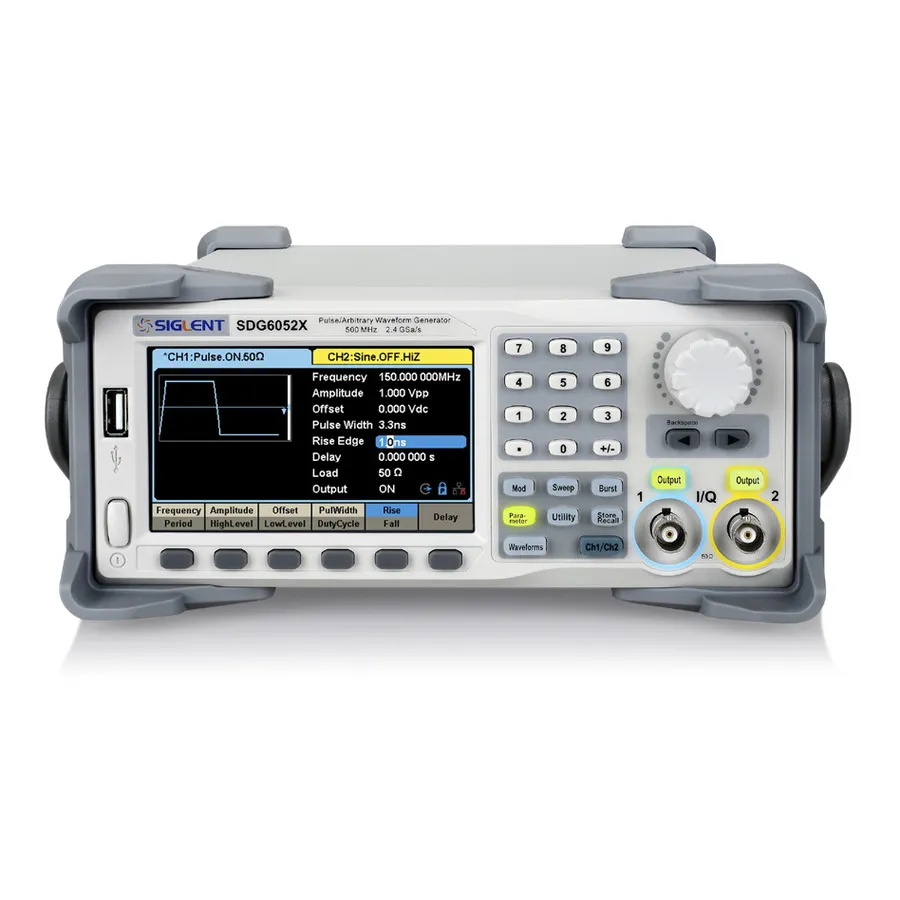

Siglent SDG6022X 200MHz Dual-Channel Function/Arbitrary Waveform Generator

Overview

The Siglent SDG6022X is a dual-channel pulse/arbitrary waveform generator with a maximum output frequency of 200 MHz, part of the SDG6000X series. It features a 2.4 GSa/s sampling rate, 16-bit vertical resolution, and supports advanced signal generation with TrueArb and EasyPulse technologies.

Designed as a multi-function signal generator, the SDG6022X can generate arbitrary waveforms, noise, IQ signals, and PRBS patterns. The device includes waveform combining and channel coupling functions, making it suitable for complex and demanding applications in testing and measurement.

Key Features

• 200 MHz maximum output frequency with 2 channels
• 2.4 GSa/s sampling rate with 16-bit vertical resolution
• 20 Mpts waveform length with support for sequence playback
• TrueArb and EasyPulse technology for high-fidelity, low-jitter signals
• 196 built-in arbitrary waveforms
• Multi-function signal generation: arbitrary waveforms, noise, IQ signals, and PRBS patterns
• Waveform combining, channel coupling, copy, and tracking functions
• Adjustable rise and fall time
• High-precision frequency counter
• 4.3-inch touchscreen display
• Standard interfaces: USB host, USB device (USBTMC), LAN (VXI-11, Socket, Telnet)
• Optional: GPIB via USB-GPIB adaptor and IQ Signal Generator with EasyIQ PC software

Applications

• Electronic component testing and validation
• Pulse and arbitrary waveform measurement applications
• Complex signal generation for research and development
• Educational and training laboratory environments

Included Accessories

• Quick Start guide
• Power cord
• Calibration certificate
• USB cable
• BNC coaxial cables (2)
