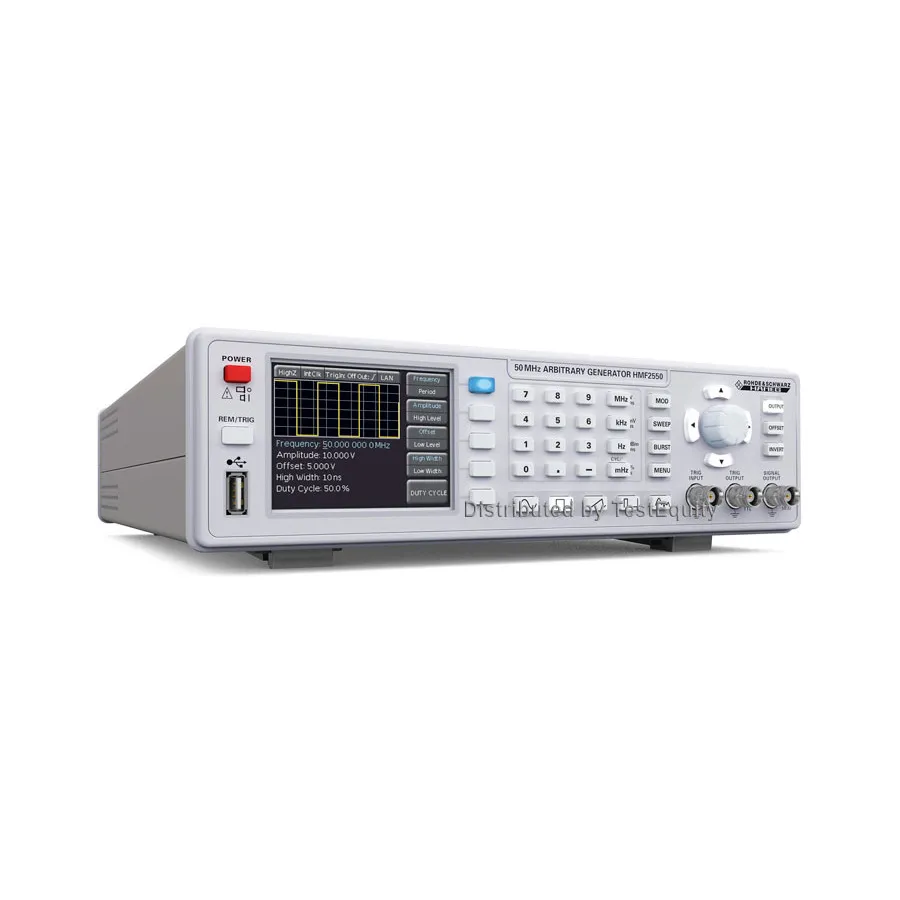

Rohde & Schwarz HMF2550 Arbitrary Function Generator
Request a quote
Rohde & Schwarz HMF2550 arbitrary function generator with 10 μHz to 50 MHz frequency, 5 mVpp to 10 Vpp output, 0.04% THD, and arbitrary waveform generation.
Product details
| Model | HMF2550 |
| Manufacturer | Rohde & Schwarz |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz HMF2550 is an arbitrary function generator with extended frequency range up to 50 MHz. It generates precise, low-distortion waveforms for comprehensive testing and characterization of electronic components and circuits. With programmable pulse parameters, multiple modulation modes, and real-time signal monitoring, it serves laboratory, development, and field testing applications.
Key Features
- Frequency range: 10 μHz to 50 MHz
- Output voltage: 5 mVpp to 10 Vpp into 50 Ω, or 10 mVpp to 20 Vpp open circuit
- DC offset: ±5 mV to 5 V
- Total harmonic distortion: 0.04% typical
- Arbitrary waveform generator: 250 MSa/s, 14-bit, 256 kpoint memory
- Waveforms: sine, square, pulse, triangle, ramp, arbitrary, and predefined curves (white noise, pink noise, and others)
- Modulation modes: AM, FM, pulse, PWM, FSK (internal and external)
- Real-time oscillographic signal display
- USB and RS-232 interfaces for remote control
- Front USB connector for file management
- Fanless design
Specifications
| Series | HMF Series |
| Alternate Product Number | 3593.0622.02 |
| Type | Arbitrary Function Generator |
