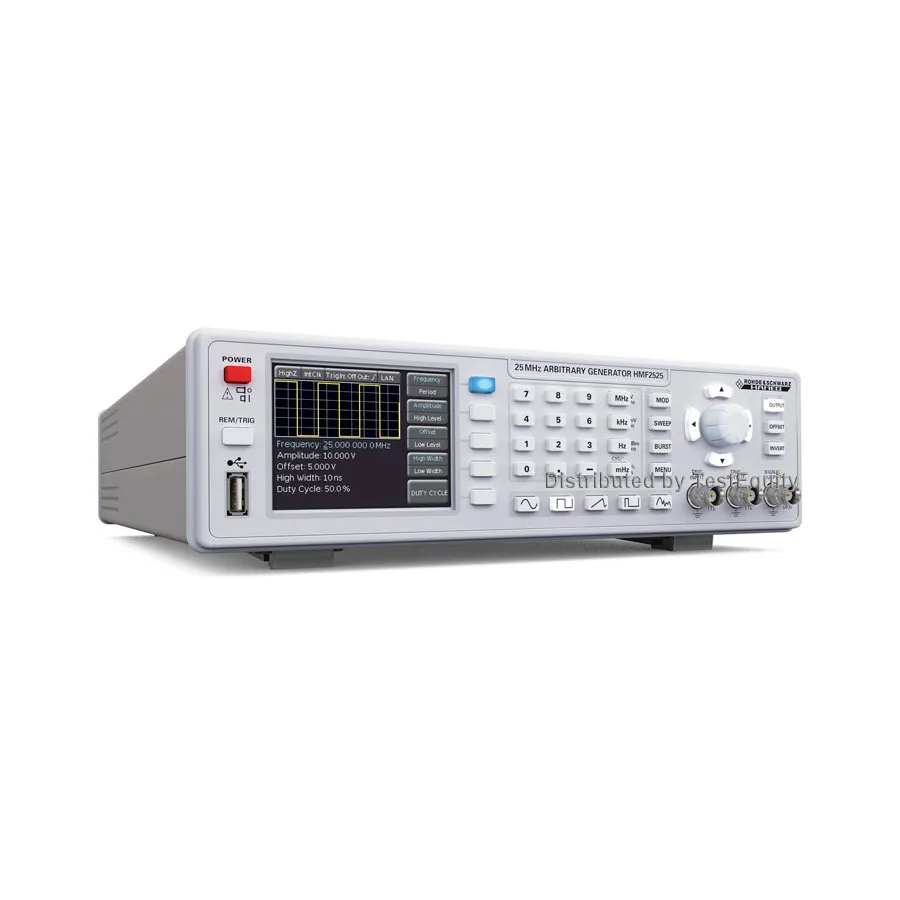

Rohde & Schwarz HMF2525 Function and Arbitrary Waveform Generator

Overview

The Rohde & Schwarz HMF2525 is a versatile function and arbitrary waveform generator capable of producing a wide range of signals from DC to 25MHz. With 250 MSa/s sampling rate, 14-bit resolution, and 256k-point arbitrary waveform memory, the HMF2525 serves as a comprehensive signal generation solution for bench testing, circuit development, and laboratory applications. Its support for standard curves such as white noise and cardiac waveforms makes it suitable for both general electronics work and specialized medical device testing.

Key Features

• Frequency range: 10µHz to 25MHz
• Arbitrary waveform generator: 250 MSa/s sampling, 14-bit resolution, 256k-point memory
• Output voltage: 5mVpp to 10Vpp (into 50Ω)
• DC offset: ±5mV to ±5V
• Waveform types: Sine, square, pulse, triangle, ramp, arbitrary, and standard curves
• Standard curves include: white noise, cardiac waveforms, and more
• Low total harmonic distortion: 0.04%
• GPIB, USB, and LAN connectivity options
• SCPI programmable command set

Applications

• Circuit development and prototyping
• Component and device testing
• Educational electronics and signal processing labs
• Medical device testing and cardiac waveform simulation
• Audio and ultrasonic frequency generation
