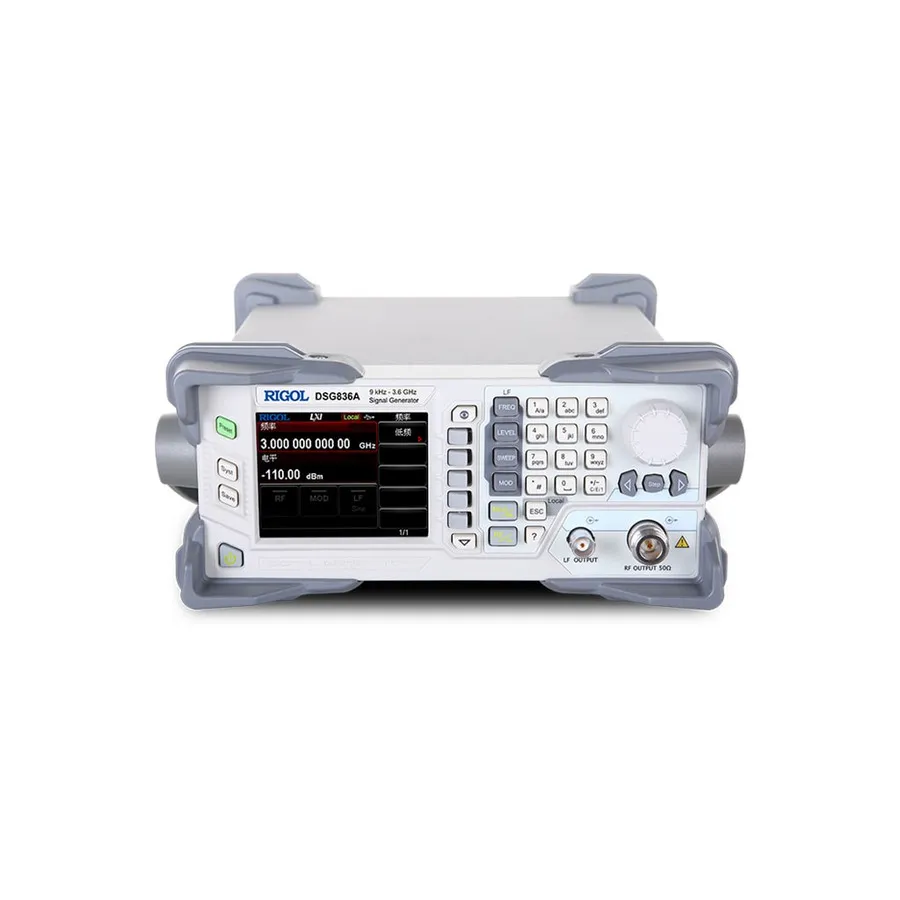

RIGOL DSG836A RF Signal Generator
Request a quote
RIGOL DSG836A delivers RF signal generation from 9 kHz to 3.6 GHz with IQ modulation support, up to +20 dBm output power, and -112 dBc/Hz phase noise.
Product details
| Model | DSG836A |
| Manufacturer | RIGOL |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The RIGOL DSG836A is a professional RF signal generator covering 9 kHz to 3.6 GHz with IQ modulation support. Part of the DSG800A series, it provides maximum output power up to +20 dBm and low SSB phase noise of -112 dBc/Hz. This instrument is designed for IoT and RF applications from design to debugging, offering signal generation capabilities with exceptional value.
Key Features
- Frequency range from 9 kHz to 3.6 GHz with 0.01 Hz resolution
- Internal and external IQ modulation supporting FSK, QAM, and QPSK signals
- High output power up to +20 dBm
- Low SSB phase noise of -112 dBc/Hz
- Amplitude accuracy of ±0.5 dB
- Complete AM/FM/ØM analog modulation functions
- Flexible frequency and amplitude sweep functions
- Standard LF output function
- Powerful pulse modulation function
- Compact size for efficient bench space utilization
Applications
- IoT device signal generation and testing
- RF receiver testing with IQ modulation
- Transmitter design and verification
- Education and training in RF technology
Specifications
| Maximum Frequency | 3 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | DSG800A Series |
