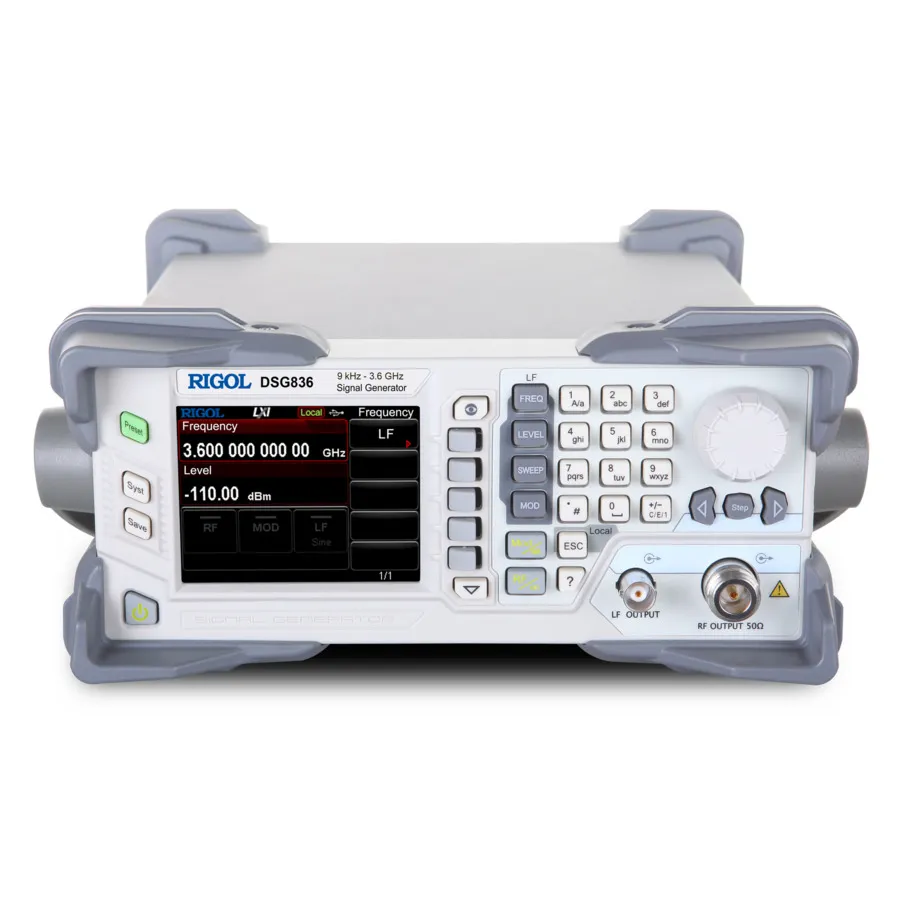

RIGOL DSG836 RF Signal Generator
Request a quote
RIGOL DSG836 RF signal generator covering 9 kHz to 3.6 GHz with -112 dBc/Hz phase noise, +20 dBm output, and advanced modulation including IQ, AM, FM, and pulse.
Product details
| Model | DSG836 |
| Manufacturer | RIGOL |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The RIGOL DSG836 is a high-performance RF signal generator offering comprehensive signal generation capabilities from 9 kHz to 3.6 GHz. It combines economical pricing with advanced features including IQ modulation, making it suitable for IoT, RF, and communications testing across design, development, and production environments.
Key Features
- Extended frequency range from 9 kHz to 3.6 GHz with 0.01 Hz resolution
- Up to +20 dBm maximum output power
- Exceptional phase noise performance of -112 dBc/Hz typical
- High amplitude accuracy of ±0.5 dB
- Internal and external IQ modulation with FSK, QAM, and QPSK support
- Complete AM/FM/Phase analog modulation functions
- Advanced pulse modulation capabilities
- Flexible frequency and amplitude sweep functions
- System flatness calibration for accurate output
- Compact design optimized for bench space and portability
- Optional OCXO timebase for enhanced frequency stability
Applications
- RF and microwave component testing
- IoT device and receiver validation
- Frequency-agile signal testing
- Research and development for communications systems
- Manufacturing quality assurance and production testing
- Educational laboratory demonstrations
Specifications
| Maximum Frequency | 3 GHz |
| Frequency Range | 0.5 - 4.0 |
| Series | DSG800 Series |
