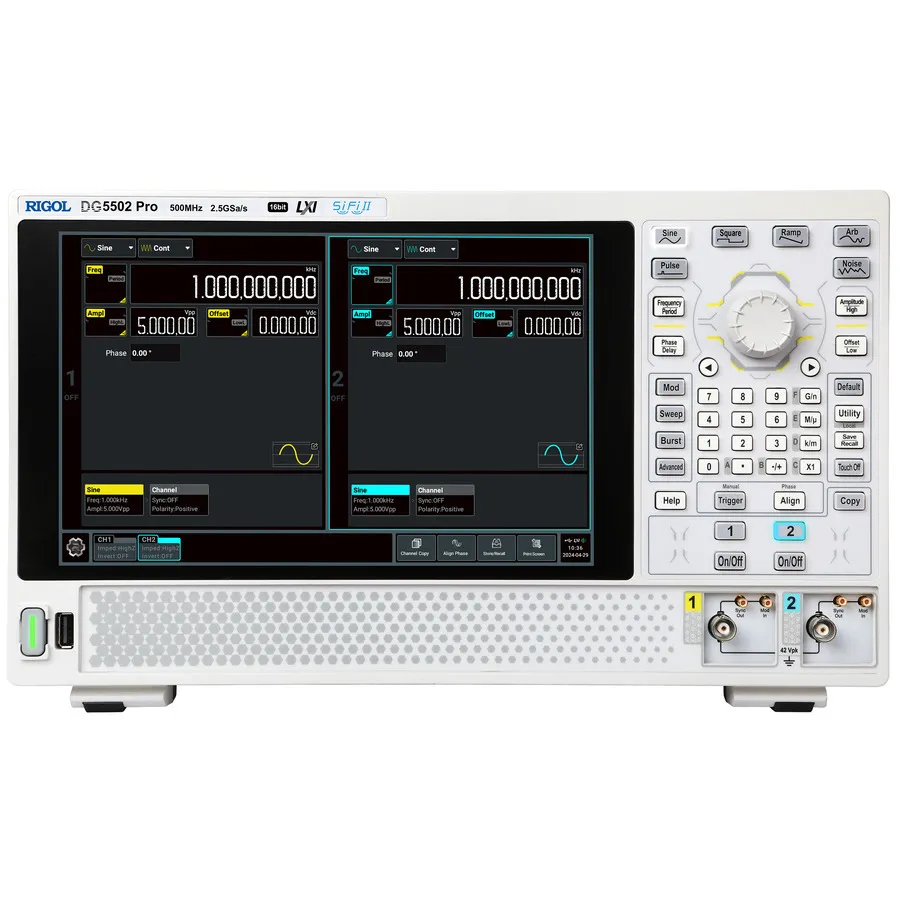

RIGOL DG5502 Pro Arbitrary Waveform Generator

Overview

The RIGOL DG5502 Pro is a high-performance dual-channel function and arbitrary waveform generator from the DG5000 Pro Series. Designed for demanding RF, microwave, and digital applications, it features a large 10.1-inch HD touch screen, dual isolated outputs, and optional battery operation for portable use. The instrument integrates multiple signal generation and modulation capabilities into a single comprehensive platform.

Key Features

• Dual-channel output, isolated from ground
• 500 MHz maximum output frequency
• 2.5 GSa/s sample rate with 16-bit vertical resolution
• 10.1-inch HD touch screen for intuitive operation
• 64 Mpts/CH memory depth (128 Mpts/CH optional)
• Built-in high-order harmonic generator (up to 20th order)
• Square waveform: 170 MHz max frequency, 0.8 ns min rise time
• Pulse generation: 120 MHz max frequency, 4.2 ns min pulse width
• Optional functions: Sequence, IQ modulation, Multi-pulse, Pattern, Multi-tone
• Battery holder available for portable field testing
• Web Control function for remote operation

Applications

• 500 MHz RF and microwave signal generation
• High-frequency digital and analog testing
• Telecommunications equipment design and validation
• Semiconductor and component characterization
• Field service and maintenance
• Advanced research and development

Included Accessories

• Power cord (standard for destination country)
• USB cable (CB-USBA-USBB-FF-150)
• Two BNC cables (CB-BNC-BNC-MM-100)
