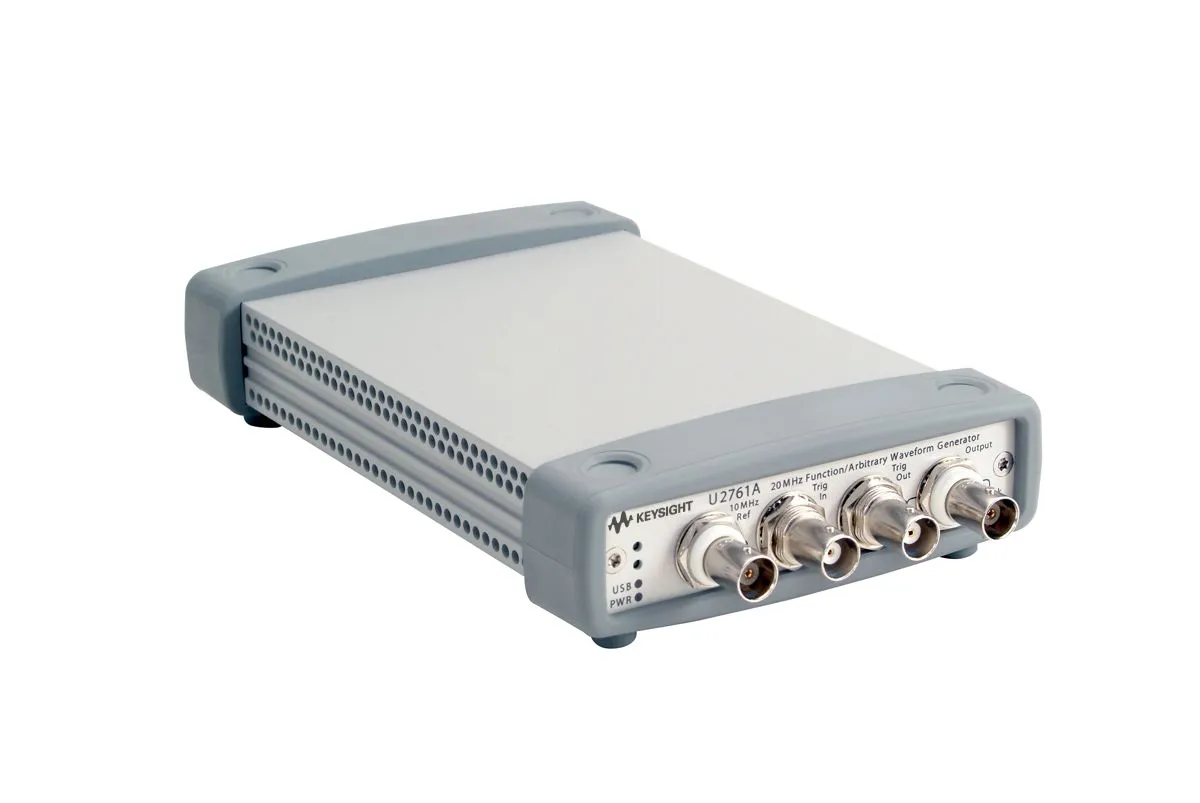

Keysight U2761A 20MHz Function Generator
Request a quote
Keysight U2761A is a 20MHz USB modular function generator offering 10 standard waveforms, pulse, and arbitrary waveform generation with Measurement Manager software.
Product details
| Model | U2761A |
| Manufacturer | Keysight |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Keysight U2761A is a 20MHz USB modular function generator for test signal generation and waveform synthesis. It offers 10 standard waveforms including sine, square, triangle, and ramp, plus pulse generation and arbitrary waveform capabilities. The instrument is controlled via the bundled Agilent Measurement Manager software with an integrated arbitrary waveform editor, making it easy to create and deploy custom test signals.
Key Features
- Frequency range up to 20MHz
- 10 standard waveforms plus pulse waveforms
- Arbitrary waveform generation with editor software
- USB 2.0 interface with plug-and-play connectivity
- Agilent Measurement Manager software with front-panel emulation
- Standalone or modular operation in U2781A chassis
- Compatible with Agilent VEE, NI LabVIEW, and Visual Studio
Applications
- Test signal generation for circuit validation
- Component functional testing and characterization
- Waveform synthesis for automated measurements
- Research and development testing
Specifications
| Channel/Port Count | 1 |
| High Frequency (range) | 10MHz <= 100MHz |
