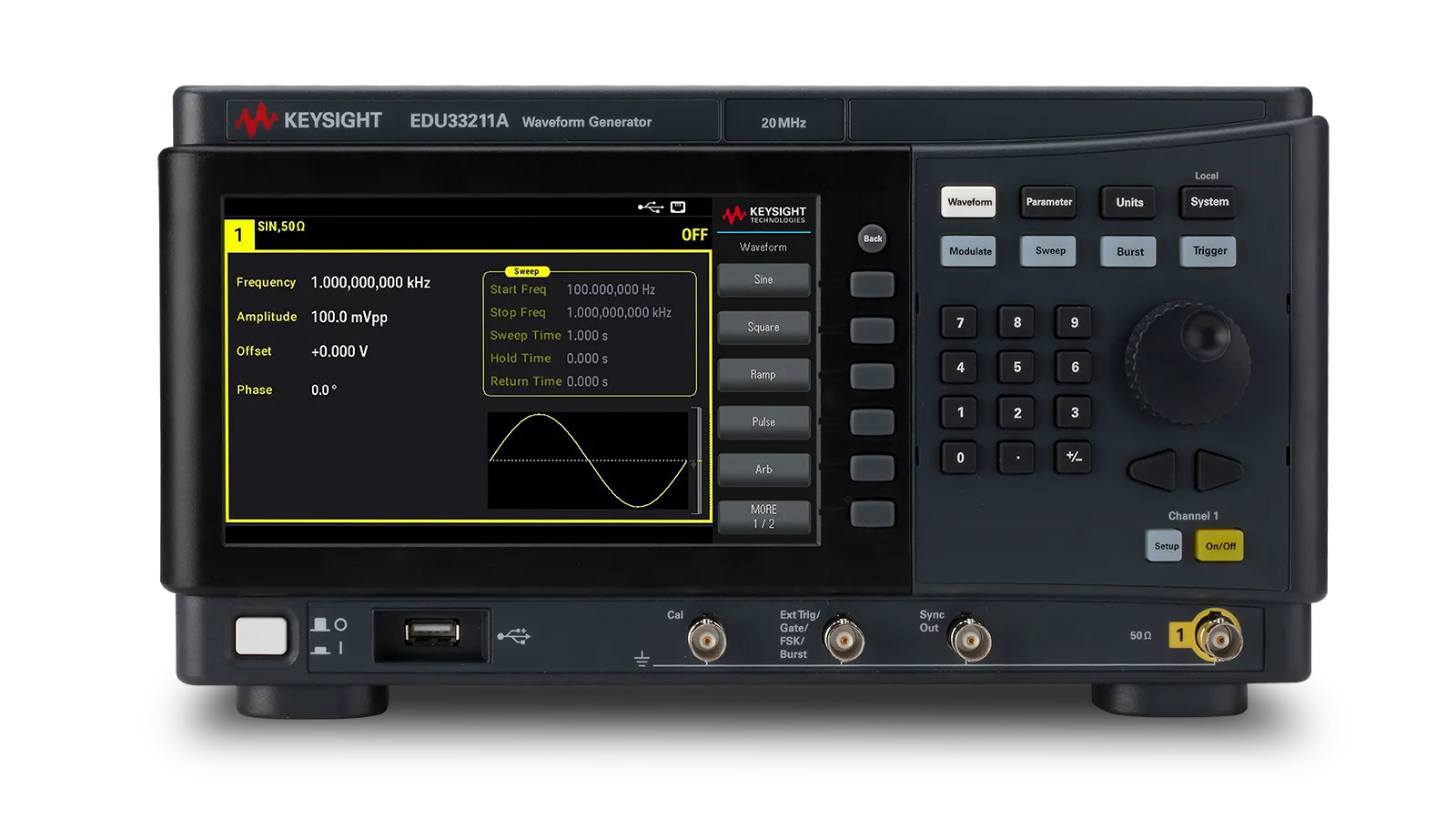

Keysight EDU33211A Function/Arbitrary Waveform Generator

Overview

The Keysight EDU33211A is a 20 MHz single-channel function/arbitrary waveform generator designed for education and research applications. It features a 7-inch WVGA color display that allows simultaneous viewing of waveform settings and parameters. With USB and LAN connectivity, the generator supports remote access and control via SCPI language, IVI driver, web browser, and PathWave BenchVue software.

Key Features

• 20 MHz single-channel output with 7-inch WVGA color display
• 17 built-in arbitrary waveforms including sine, square, ramp, triangle, pulse, PRBS, DC, and Gaussian noise
• Specialty waveforms such as cardiac, exponential, Gaussian pulse, haversine, Lorentz, and sinc
• Six modulation types: AM, FM, PM, FSK, BPSK, and PWM
• 16-bit arbitrary waveform capability with 8 M samples memory per channel
• USB memory port for saving and loading setup parameters and waveforms
• Color-coded keypads and connectors prevent setup and connection errors
• SCPI and IVI driver support for automation and integration
• PathWave BenchVue software control (basic version free)
• Ideal for Smart Bench Essentials (SBE) integrated lab setups

Connectivity and Control

• USB port for local and remote connectivity
• LAN (Ethernet) interface for networked operation
• Kensington lock for physical security
• External trigger, gate, FSK, and burst input connectors
• Sync/trigger output connector

Applications

• Electronics education and laboratory training
• Circuit design and testing
• Signal simulation and analysis
• Modulation technique demonstrations
• Smart Bench Essentials integrated lab systems
