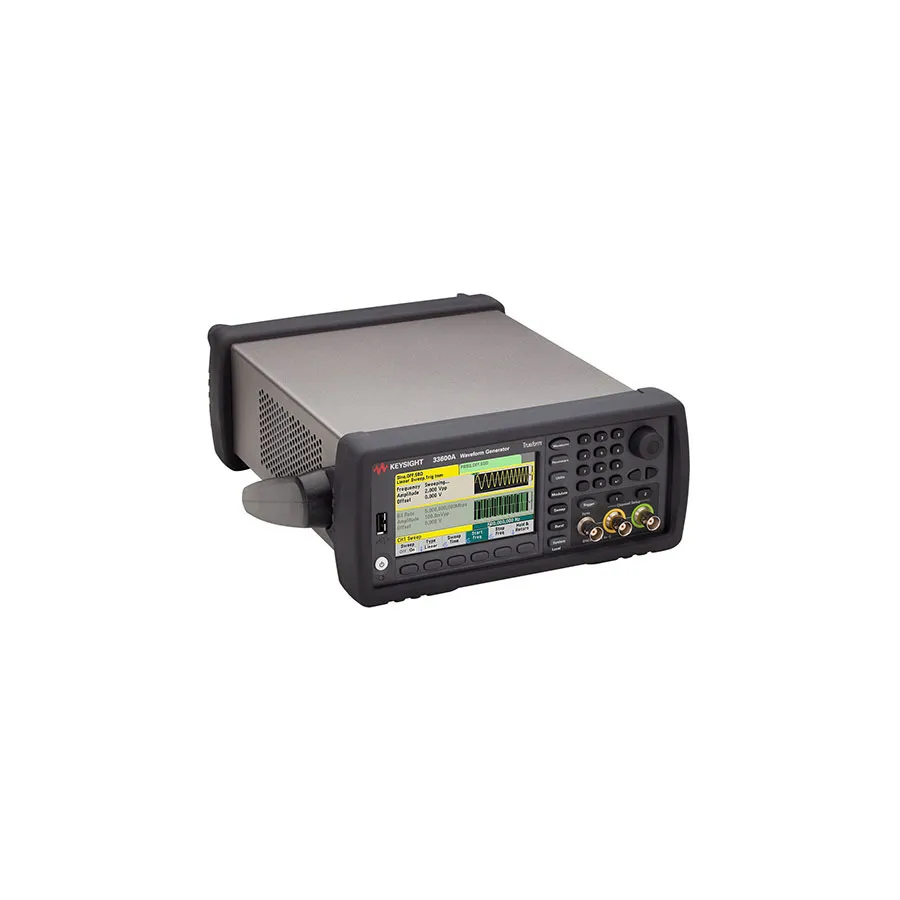

Keysight 33622A/OCX Trueform Waveform Generator

Overview

The Keysight 33622A/OCX is a premium dual-channel Trueform waveform generator combining the 120 MHz 33622A platform with an integrated high-stability OCXO timebase. This comprehensive signal generation solution provides engineers and researchers with clean, low-distortion output and exceptional frequency accuracy, ideal for demanding applications in telecommunications, research, and precision testing where both signal quality and timing stability are critical requirements.

Key Features

• 120 MHz bandwidth with 2-channel independent output
• Integrated high-stability OCXO timebase for superior frequency accuracy and phase noise
• Trueform signal generation technology for best-in-class signal fidelity
• Standard waveforms: sine, square, ramp, pulse, triangle, Gaussian noise, PRBS, and DC
• Comprehensive modulation: AM, FM, PM, FSK, BPSK, PWM, and sum modulation
• Arbitrary waveform generation: 4 MSa user-defined with multi-segment sequencing (expandable to 64 MSa with Option MEM)
• Built-in arbitrary waveforms: Cardiac, Exponential Fall/Rise, Gaussian Pulse, Haversine, Lorentz, and Sinc
• Amplitude ranges from 1 mVpp to 10 Vpp
• Multiple interfaces: LAN (LXI-C), USB, with optional GPIB support
• BenchVue enabled for automated test development and custom waveform design

Applications

• High-precision telecommunications and RF signal generation
• Frequency and timing synchronization testing
• Arbitrary waveform synthesis for complex signal testing
• Component characterization and validation
• Low-jitter signal generation for digital and mixed-signal testing
• Research and educational demonstrations requiring precision timing
