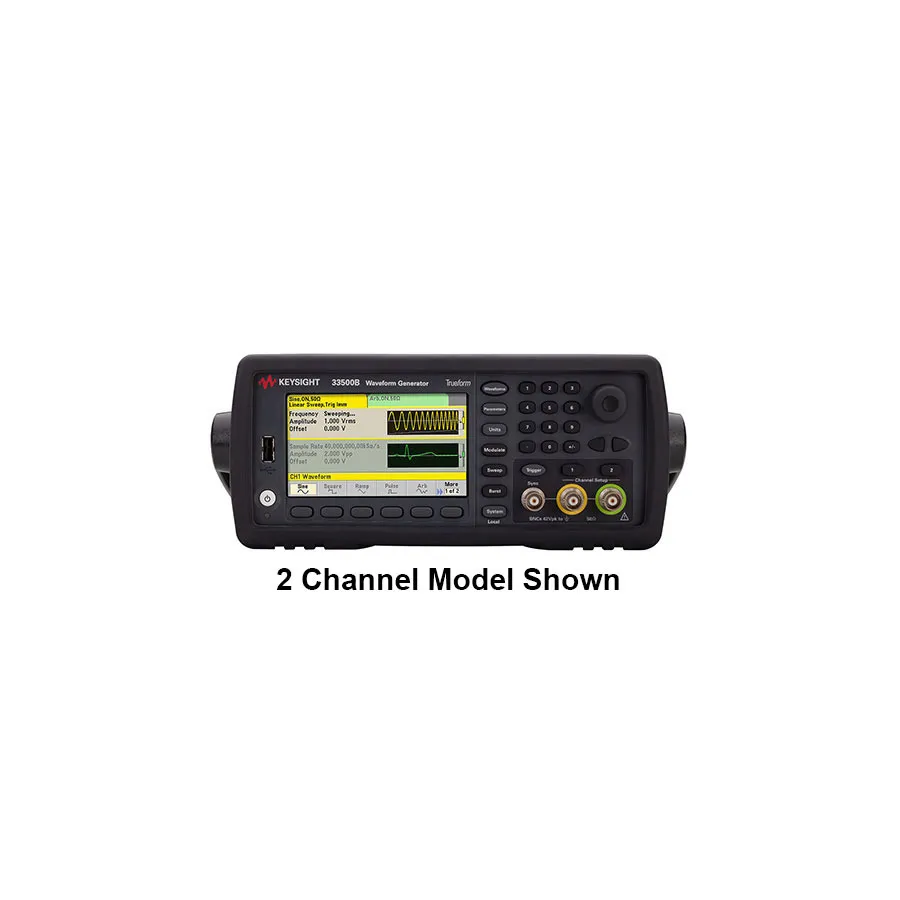

Keysight 33522B/OCX Trueform Function/Arbitrary Waveform Generator

Overview

The Keysight 33522B/OCX is a high-performance 30 MHz, dual-channel function and arbitrary waveform generator part of the Trueform Series. This configuration includes the optional OCX upgrade, featuring an Ultra-High Stability (UHS) OCXO timebase that delivers exceptional frequency stability and minimal phase noise for demanding metrology and signal integrity applications.

Key Features

• 30 MHz frequency range from 1 µHz to 30 MHz sine output
• Dual-channel independent or summed waveform generation
• Trueform signal generation with superior signal fidelity and lower harmonic distortion
• Ultra-High Stability (UHS) OCXO timebase for lowest phase noise
• Standard waveforms: Sine, Square, Ramp, Pulse, Triangle, Gaussian Noise, PRBS, DC
• Modulation capabilities: AM, FM, PM, FSK, BPSK, PWM, and Sum modes
• Built-in arbitrary waveforms: Cardiac, Exponential, Gaussian Pulse, Haversine, Lorentz, Sinc, and others
• User-defined arbitrary waveforms up to 1 MSa standard (16 MSa with MEM option)
• Amplitude range: 1 mVpp to 10 Vpp
• Multi-segment arbitrary waveform sequencing
• LAN (LXI-C), GPIB, and USB interfaces
• BenchVue software enabled for automated test design and control

Applications

• Precision metrology and frequency reference
• Signal integrity and device characterization
• Communication protocol simulation and testing
• Research and development of RF/microwave systems
• Educational laboratories requiring high-stability references
