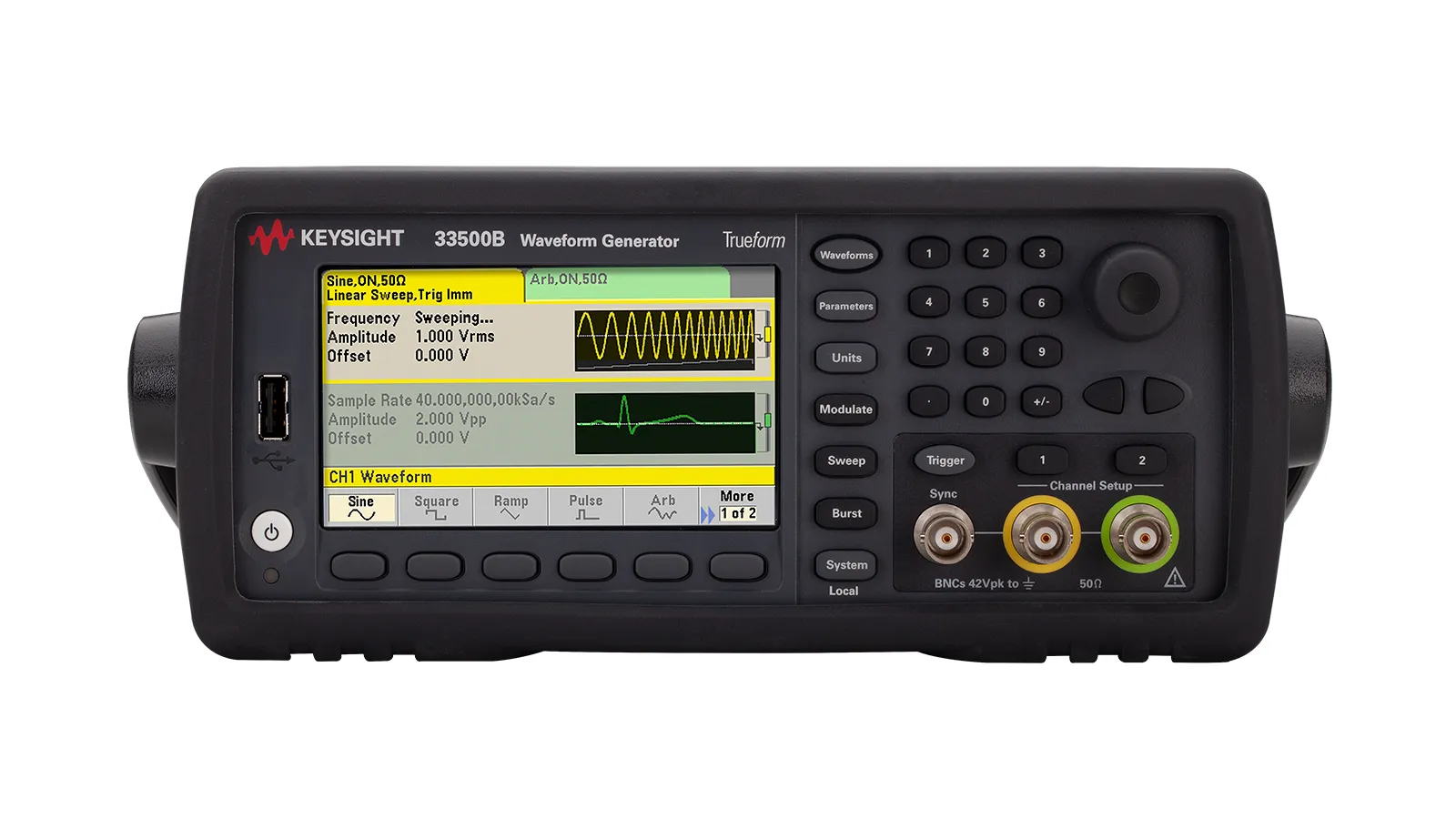

Keysight 33522B Trueform Waveform Generator
Keysight 33522B is a 30 MHz dual-channel Trueform function/arbitrary waveform generator offering superior signal fidelity, lower harmonic distortion, and reduced jitter.
Product details
| Model | 33522B |
| Manufacturer | Keysight |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Keysight 33522B is a 30 MHz, dual-channel Trueform waveform and function generator designed for applications requiring clean, low-distortion signal generation. Part of the Trueform Series, it features exclusive signal generation technology that surpasses direct digital synthesis (DDS) performance with exceptional signal fidelity and stability.
The 33522B supports point-by-point arbitrary waveform definition with anti-aliasing technology, allowing users to generate complex waveforms accurately at any sample rate while preserving short-duration anomalies critical for device testing and validation.
Key Features
- 30 MHz bandwidth with dual-channel output
- Trueform signal generation technology with superior signal fidelity
- Lower harmonic distortion compared to DDS generators
- Reduced jitter for exceptionally low phase noise
- Variable bandwidth noise generator for adjustable frequency content
- Waveform summing and combining capability for dual-tone signals
- Standard arbitrary waveform capability with anti-aliasing
- BenchVue software enabled for intuitive control and automated testing
- LAN (LXI-C), GPIB, and USB interfaces
Applications
- Device characterization and design validation
- Signal quality testing and measurement
- Complex waveform generation for protocol simulation
- Jitter and noise measurement applications
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 10MHz <= 100MHz |
| Frequency | 30 MHz |
| Number of Channels | 2 Channel |
| Series | 33500B Series |
