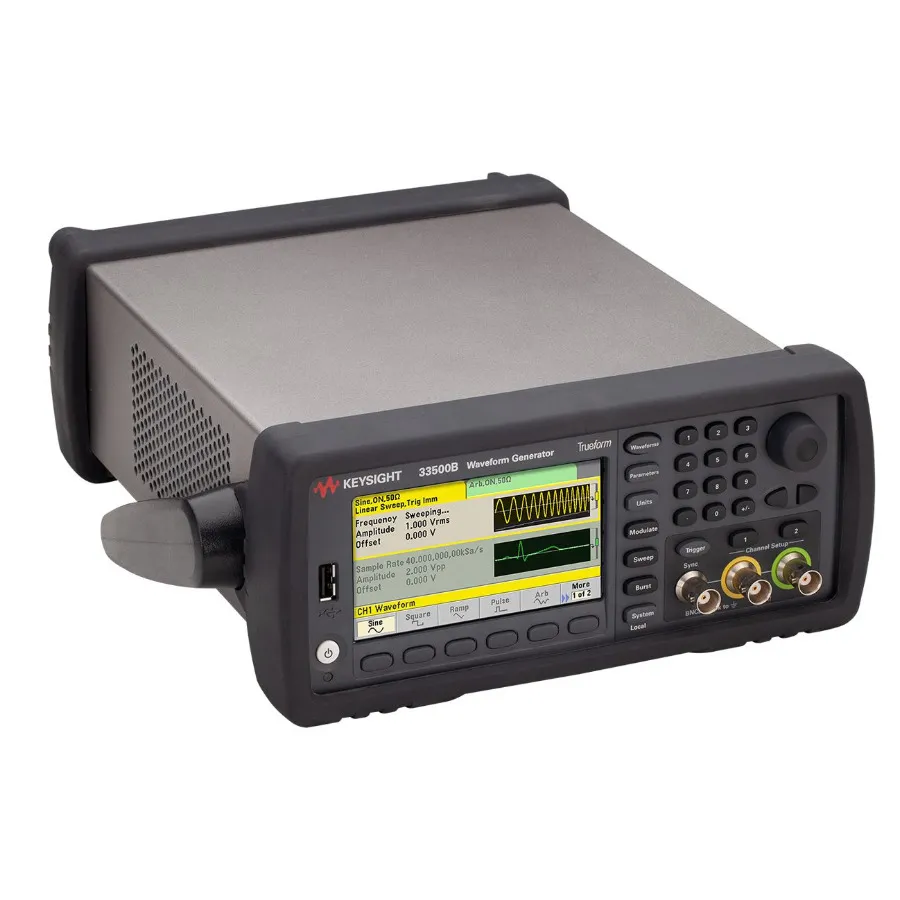

Keysight 33512B/OCX Waveform Generator
Request a quote
Keysight 33512B/OCX is a dual-channel 20 MHz waveform generator with Trueform technology, standard arbitrary waveform capability, and precision OCXO timebase for accurate signal generation.
Product details
| Model | 33512B/OCX |
| Manufacturer | Keysight |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Keysight 33512B/OCX is a dual-channel 20 MHz waveform generator with Trueform signal generation technology and precision OCXO timebase. It combines high-fidelity signal generation with standard arbitrary waveform capability for comprehensive testing applications requiring exceptional timing stability.
Key Features
- Dual-channel output with independent control
- 20 MHz bandwidth with Trueform technology for superior signal fidelity
- Standard arbitrary waveform capability with point-by-point definition
- Precision OCXO (oven-controlled crystal oscillator) timebase
- 250 MSa/s sampling rate with 16-bit resolution
- 1 mVpp to 10 Vpp amplitude range
- 1 MSa/channel standard waveform memory, upgradable to 16 MSa/channel
- 5x lower harmonic distortion than traditional DDS generators
- 10x reduced jitter for precise timing
- Variable bandwidth noise generation capability
- USB, LAN (LXI-C), and GPIB connectivity
- BenchVue software support for automated testing
Applications
- Device testing and validation
- Component characterization
- Precision frequency reference applications
- Dual-channel signal generation
- Automated test system development
Specifications
| Frequency | 20 MHz |
| Number of Channels | 2 Channel |
| Series | 33500B Series |
