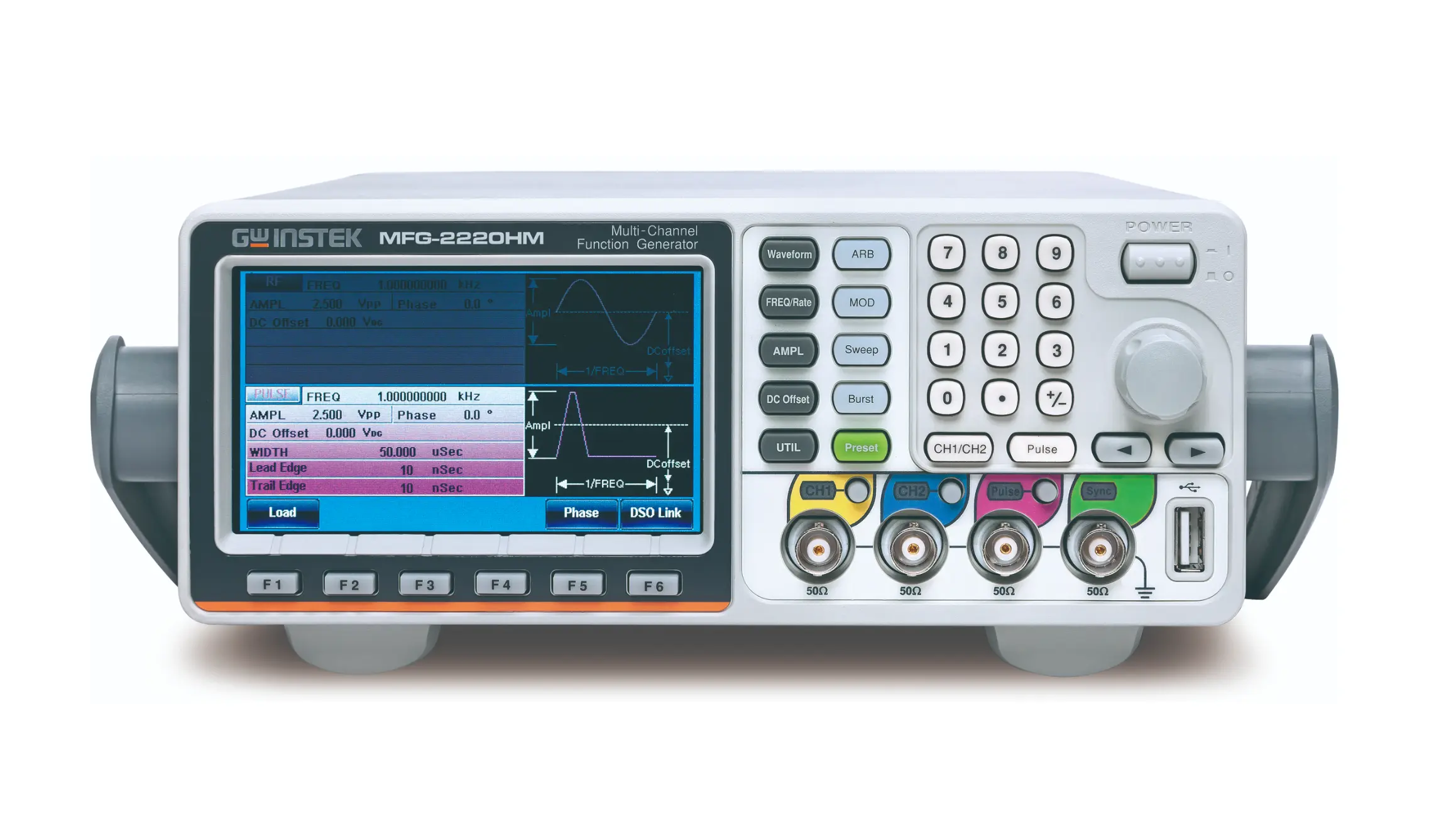

GW Instek MFG-2220HM 200MHz Dual Channel Arbitrary Function Generator
Request a quote
GW Instek MFG-2220HM is a 200MHz dual-channel arbitrary function generator with 25MHz pulse generator, 200MSa/s sample rate, and AM/FM/PM modulation.
Product details
| Model | MFG-2220HM |
| Manufacturer | GW Instek |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The GW Instek MFG-2220HM is a 200MHz dual-channel arbitrary function generator from the MFG-2000 series. This advanced model combines simultaneous dual-channel waveform generation with a 25MHz pulse generator, providing comprehensive signal generation capabilities for research, development, and testing applications.
Key Features
- 200MHz dual-channel arbitrary function generator with 1μHz minimum frequency
- 25MHz full-function pulse generator
- 200MSa/s sample rate with 14-bit resolution and 16k point memory depth
- AM/FM/PM/FSK/PWM modulation methods
- Synchronized dual-channel with delay, sum, and coupling functions
- 150MHz frequency counter
- Sweep, Burst, and Trigger functions
- USB Host/USB Device/LAN interface connectivity
- 4.3-inch TFT color display
Applications
- High-frequency signal generation and testing
- Synchronized multi-channel waveform applications
- Educational and research institutions
- RF and communication signal simulation
- Power electronics and control signal testing
Included Accessories
- GTL-110 BNC Cable x2
Specifications
| Channel/Port Count | 2 |
| High Frequency (range) | 100MHz <= 1GHz |
| Frequency | 200 MHz |
| Series | MFG-2000 Series |
