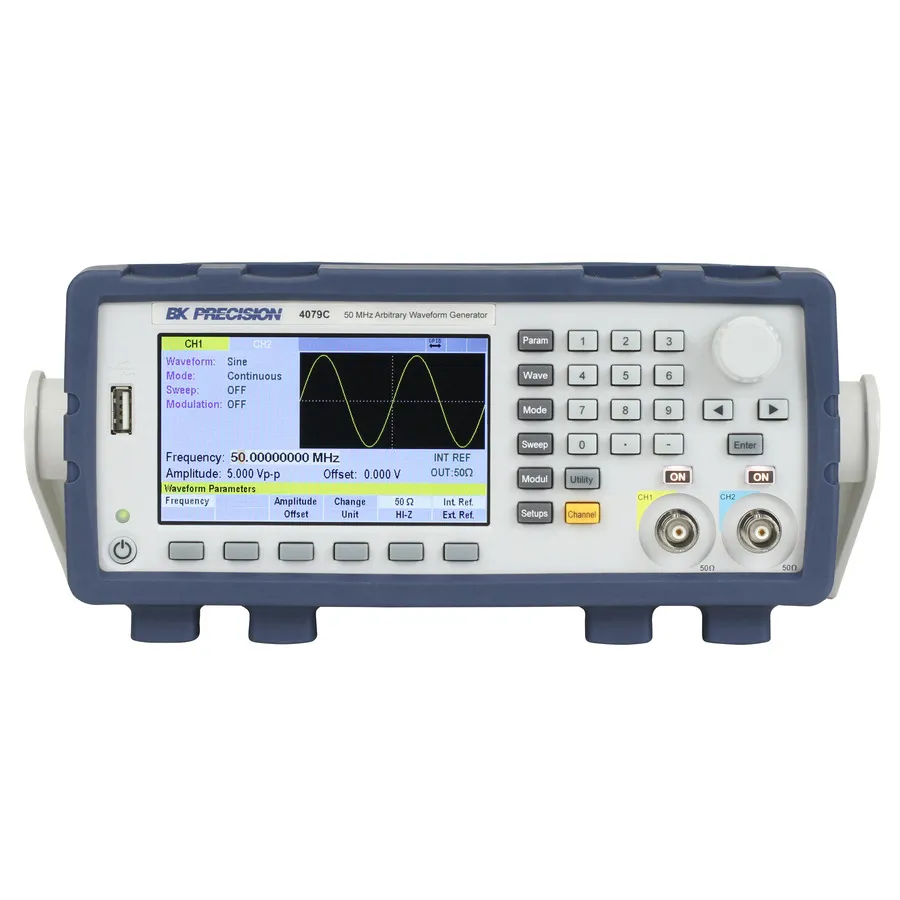

B&K Precision 4079C-GPIB Arbitrary Waveform Generator
B&K Precision 4079C-GPIB is a 50 MHz dual-channel AWG with 250 MSa/s sampling, 16-bit resolution, and USB, LAN, and GPIB interfaces for flexible system integration.
Product details
| Model | 4079C-GPIB |
| Manufacturer | B&K Precision |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The B&K Precision 4079C-GPIB is a versatile dual-channel arbitrary waveform generator designed for high-performance signal generation in automated test systems. Operating at frequencies up to 50 MHz with a 250 MSa/s sampling rate and 16-bit amplitude resolution, it produces high-fidelity waveforms without distortion. The instrument provides variable output voltages from 0 to 10 Vp-p into 50 ohms or up to 20 Vp-p into an open circuit, with DC offset capabilities for biasing output signals. GPIB interface support enables seamless integration into legacy test configurations.
Key Features
- 50 MHz waveform generation frequency
- Dual-channel configuration with independent output ON/OFF control
- 250 MSa/s sampling rate with up to 4 million points per channel
- 16-bit amplitude resolution for enhanced accuracy and reduced distortion
- Linear and logarithmic sweep modes
- Modulation support: AM, FM, PM, BPSK, and FSK
- Multiple operation modes: continuous, triggered, burst, and gate
- 4.3-inch LCD display with internal setup storage and recall
- USB (USBTMC-compliant), LAN, and GPIB interfaces standard
Applications
- Automated test system integration
- Circuit testing and signal validation
- Frequency sweep and modulation testing
- Signal simulation and waveform analysis
Included Accessories
- Power cord
- USB cable
- Test report
- Certificate of calibration
Specifications
| Frequency | 50 MHz |
| Sampling Rate | 250 MS/s |
| Number of Channels | 2 Channel |
| Vertical Resolution | 16 bit |
| Memory | 4 Mpts |
| Series | 4078C Series |
| Display | 4.3 in LCD IPS |
| Display Digits | 8 Digits |
| Interface | USB, LAN, GPIB |
| Risetime | 6 ns |
| Warranty | 3 Years |
