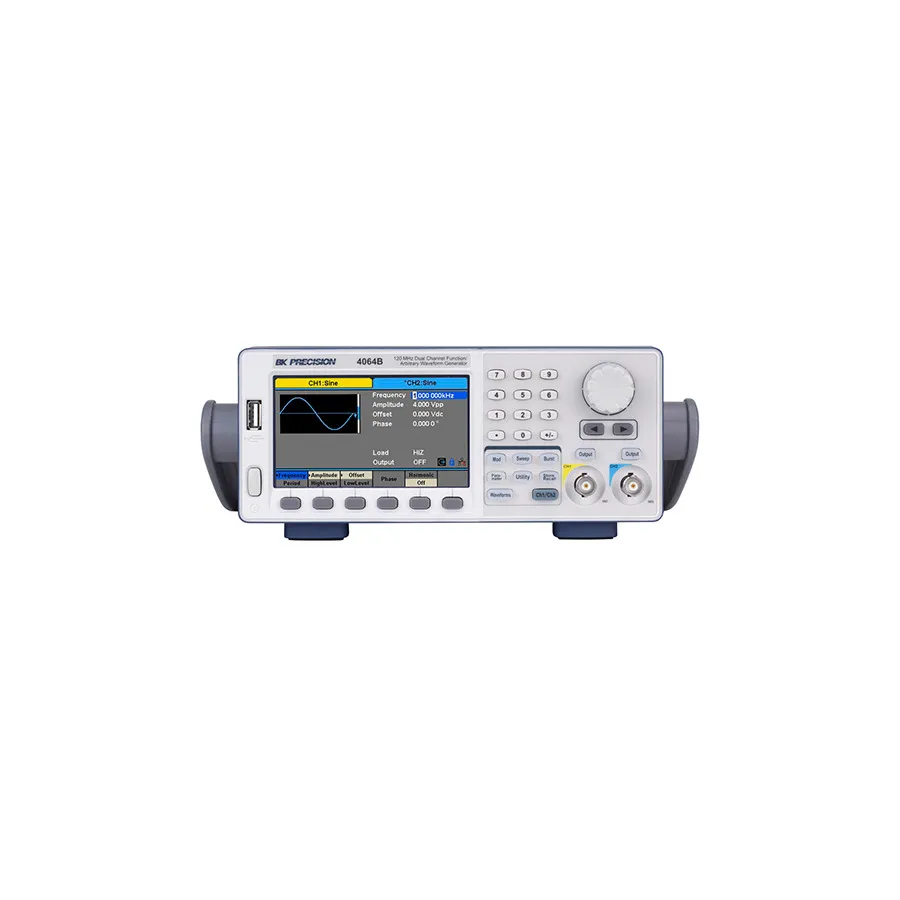

B&K Precision 4064B Dual Channel Function/Arbitrary Waveform Generator

Overview

The B&K Precision 4064B is a dual-channel function and arbitrary waveform generator that combines DDS and true point-by-point architectures. It provides a 120 MHz sine frequency range, 25 MHz square range, and up to 1.2 GSa/s sample rate for stable, high-fidelity signal generation with low jitter. The 4.3-inch touch screen display and intuitive numeric keypad interface make operation straightforward for laboratory and production testing.

Key Features

• 120 MHz sine frequency range, 25 MHz square frequency range
• 300 MSa/s DDS and 75 MSa/s true point-by-point arbitrary waveform capability
• 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
• 16-bit resolution with 8 Mpt arbitrary waveform length
• Dual independent channels with one-button phase synchronization
• 4.3-inch color touch screen display
• Linear and logarithmic sweep modes
• AM, DSB-AM, FM, PM, PSK, FSK, ASK, and PWM modulation types
• 196 built-in predefined arbitrary waveforms
• Gate and burst mode operation
• USB (USBTMC-compliant), LAN, and GPIB connectivity
• LabVIEW drivers available

Applications

• High-frequency RF and signal simulation
• Audio and ultrasound equipment testing
• Circuit design and verification
• Pulse and timing applications
• Educational and research environments
