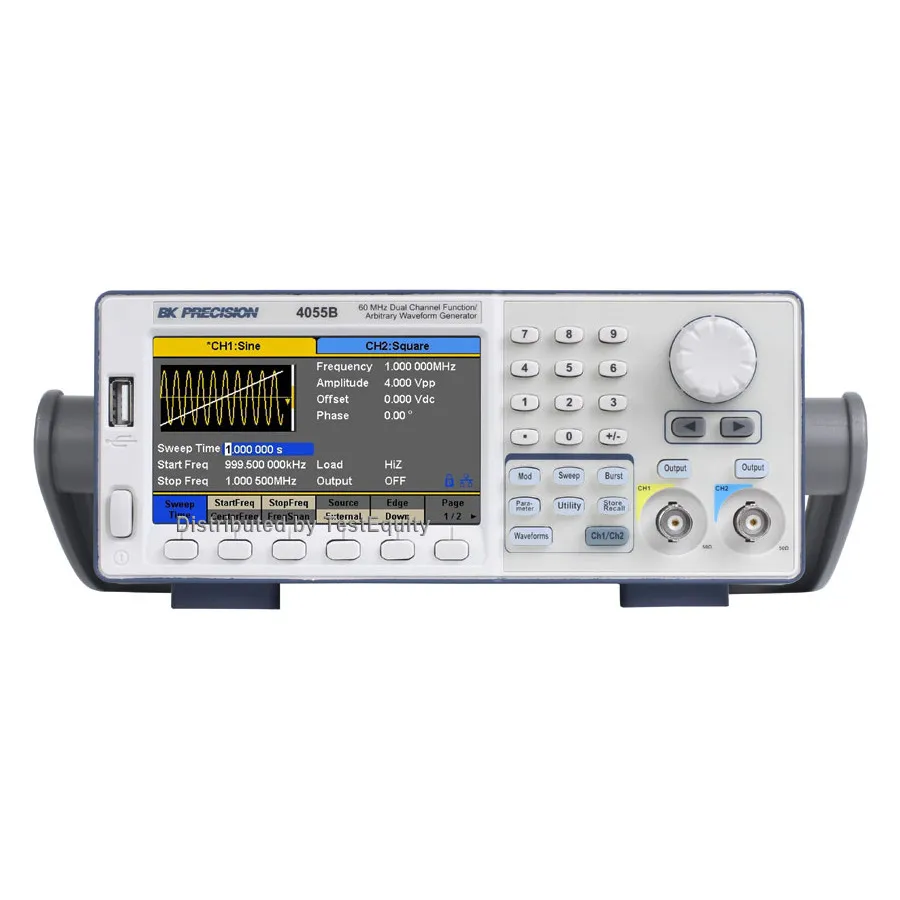

B&K Precision 4055B Function/Arbitrary Waveform Generator
B&K Precision 4055B is a dual-channel 60 MHz function/arbitrary waveform generator with 14-bit, 150 MSa/s resolution, extensive modulation, and GPIB connectivity.
Product details
| Model | 4055B |
| Manufacturer | B&K Precision |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The B&K Precision 4055B is a dual-channel 60 MHz function/arbitrary waveform generator designed for education and professional applications requiring high signal fidelity and versatile waveform generation. With an intuitive interface featuring a large 4.3-inch LCD color display and numeric keypad, the 4055B generates stable and precise sine, square, triangle, pulse, and arbitrary waveforms with 14-bit, 150 MSa/s resolution. CH1 and CH2 outputs can be varied from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit).
The instrument supports extensive modulation schemes including AM/FM, DSB-AM, ASK/FSK, PM/PSK, and PWM. With more than 1000 user-defined 16k-point arbitrary waveforms that can be saved, the included waveform editing software makes custom waveform creation straightforward.
Key Features
- Sine and square wave frequency range: 1 μHz to 60 MHz
- 14-bit, 150 MSa/s arbitrary waveform generator with 16k point memory
- Two independent channels with individual output On/Off buttons
- Large 4.3-inch color LCD display with numeric keypad
- 196 built-in predefined arbitrary waveforms
- AM/DSB-AM/ASK/FM/FSK/PM/PSK/PWM modulation functions
- Variable DC offset and adjustable duty cycle
- Internal/external triggering with gate and burst modes
- Built-in frequency counter and harmonics generator
- Channel copy, track, and combine functions with phase synchronization
- Low-jitter square wave generation for clock signals and trigger validation
- Connectivity: LAN, USB device (USBTMC), USB host, and optional GPIB
- PC software for arbitrary waveform editing and LabVIEW drivers available
- Short circuit output protection and three-year warranty
Applications
- Educational demonstrations and laboratory work
- Clock signal generation and trigger creation
- Serial data bus validation
- Signal conditioning and modulation testing
- Arbitrary waveform synthesis for research
Included Accessories
- Getting Started Manual
- AC Power Cord
- USB Type A-to-Type B Cable
- Certificate of Calibration
Specifications
| Series | 4000B Series |
