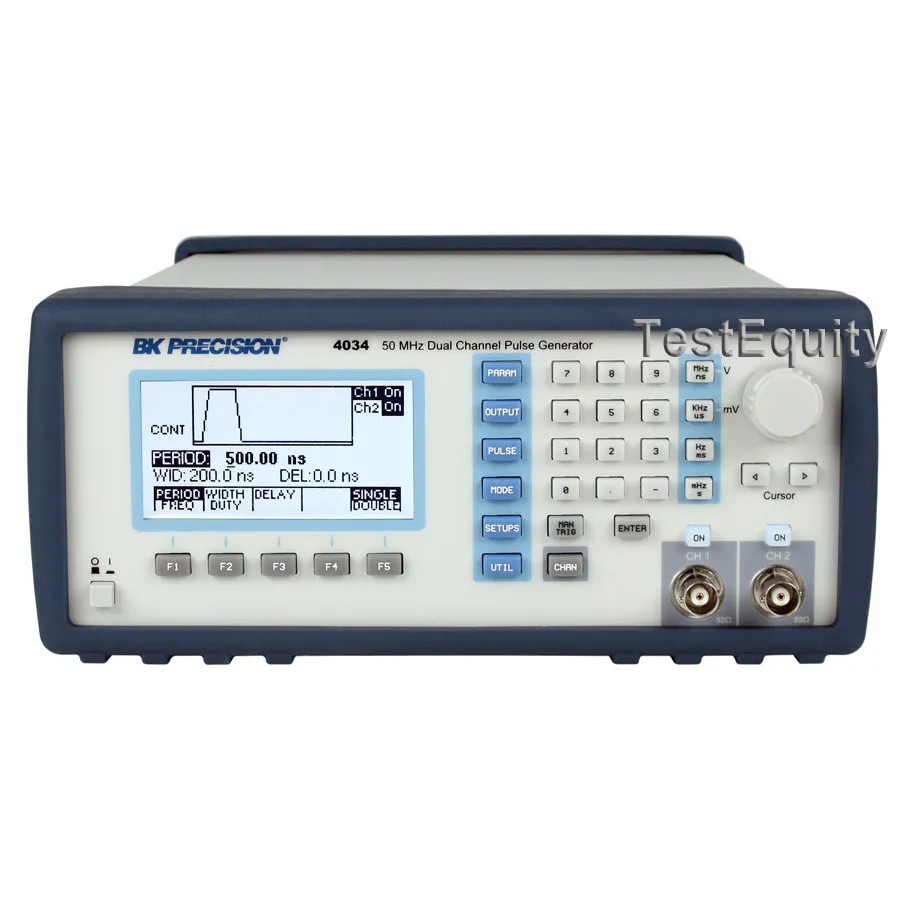

B&K Precision 4034 Dual Channel Pulse Generator

Overview

B&K Precision 4034 is a high-performance dual-channel pulse generator designed for testing digital systems and circuits based on TTL, CMOS, or ECL technologies. Both channels offer full functionality with independently programmable parameters including pulse width, transition time, and delay. Channels can be easily synchronized, providing flexible control for complex testing scenarios.

Key Features

• Dual channel operation with independent parameter control
• Repetition rate from 0.1 Hz to 50 MHz
• Pulse width programmable from 10 ns to 10 s
• Transition times (rise and fall) variable from 6 ns to 100 ms
• Output levels adjustable from -10 V to +10 V
• Pulse amplitudes from 0.1 Vpp to 10 Vpp into 50 ohm load
• Flexible trigger modes: Continuous, Triggered, Gated Burst, and External Width
• Programmable delay and double pulse generation
• Stores up to 99 different test setups with auto-retention of last configuration
• GPIB and RS-232 programmable; SCPI compatible

Applications

• Automatic Test Equipment (ATE)
• Avionics and radar testing
• Switching power supply testing
• Active component characterization

Included Accessories

• AC power cord
• CD containing instruction manual
• RS-232 cable
• Test report and certificate of calibration
