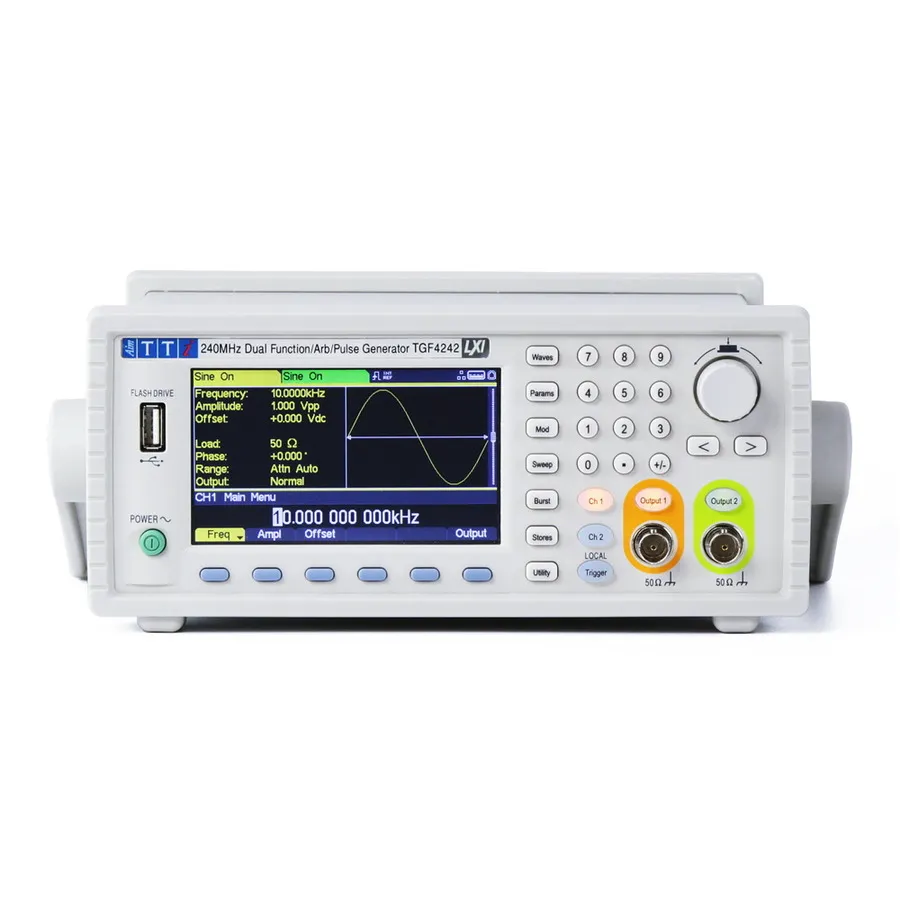

Aim TTi TGF4242 Function/Pulse/Arbitrary Generator
Request a quote
Aim TTi TGF4242 dual-channel generator with 240MHz bandwidth, 0.05% audio band THD, precise 0.001° phase control, and advanced arbitrary waveform capability.
Product details
| Model | TGF4242 |
| Manufacturer | Aim TTi |
| Category | Function & Arbitrary Waveform Generators |
| Availability | Made to order |
Description
Overview
The Aim TTi TGF4242 is a high-performance dual-channel arbitrary function generator delivering advanced signal generation from 0.001 mHz to 240 MHz. Featuring two identical, full-performance channels supporting independent, coupled, or tracking operation, the TGF4242 is ideal for complex multi-channel applications requiring precise signal synchronization and control.
Key Features
- Dual-channel design with independent, coupled, or tracking modes
- Frequency range: 0.001 mHz to 240 MHz
- Exceptional sine wave purity with 0.05% audio band THD
- Ultra-precise inter-channel phase control with 0.001° resolution (±3600°)
- Square wave generation up to 25 MHz with adjustable duty cycle and 3 ns edge transitions
- High-frequency resolution: up to 14-digit or 1 µHz precision
- Pulse generation from 1 mHz to 100 MHz with 100 ps resolution and 30 ps jitter
- Wideband noise generator with 50 MHz bandwidth
- Advanced modulation: AM, FM, PM, PWM, FSK, and sum modulation
- Harmonic generation up to 16 harmonics
- PRBS pseudo-random bit sequence generation with 8 sequence lengths
- Flexible trigger modes: Gate and Burst operation with internal or external sources
- Sweep functions: linear and logarithmic bi-directional sweep
- Integrated frequency counter/timer measuring up to 125 MHz
- High-stability TCXO timebase
- 4.3-inch high-resolution color display with channel-specific colors
- Comprehensive connectivity: USB host port, USB device, and LAN (LXI-compliant); optional GPIB interface
- Waveform Manager Plus software for Windows-based waveform editing and management
Waveform Storage
- Store up to four arbitrary waveforms internally
- External USB flash drive support for up to 1,000 waveforms each
- Save and recall up to nine full instrument setups in non-volatile memory
Applications
- Circuit design and testing
- RF systems verification and characterization
- Communications system testing
- Automated test equipment (ATE)
- Bench-top and production test environments
- Education and training
Specifications
| Frequency | 240 MHz |
| Sampling Rate | 800 MS/s |
| Number of Channels | 2 Channel |
| Vertical Resolution | 16 bit |
| Series | TGF4000 Series |
