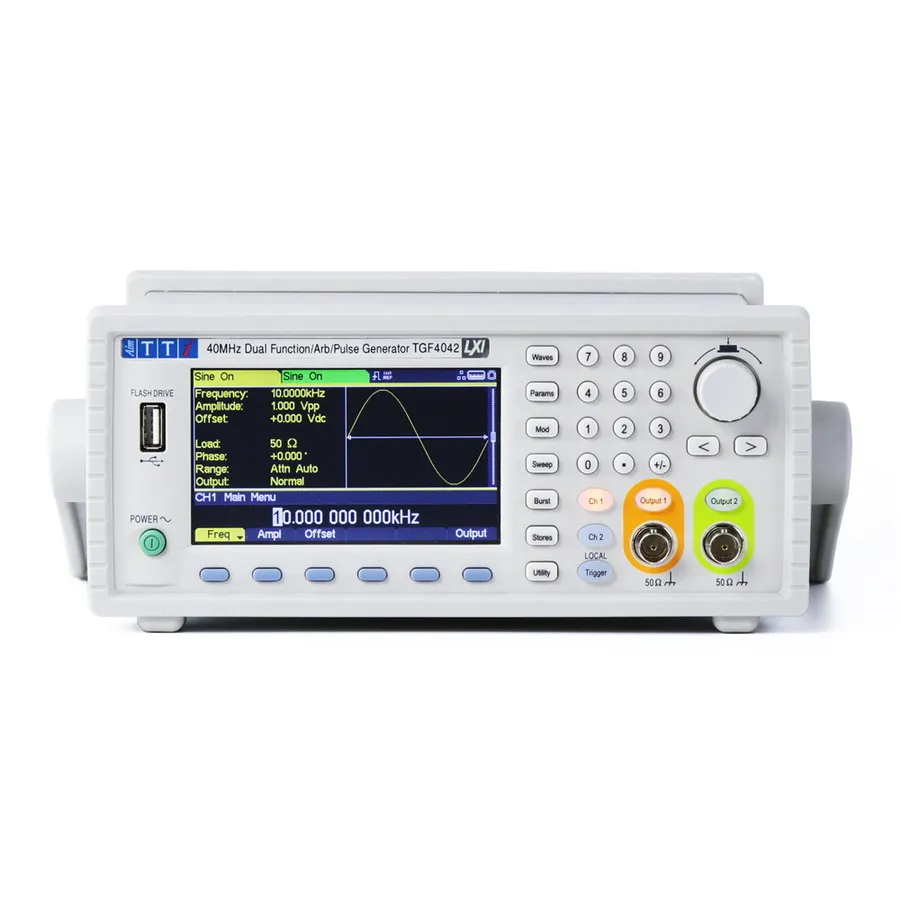

Aim TTi TGF4042 Function/Pulse/Arbitrary Generator

Overview

The Aim TTi TGF4042 is a dual-channel function/pulse/arbitrary waveform generator offering signal generation from 1 mHz to 40 MHz. The instrument features two identical, independently controllable channels that can operate in coupled or tracking modes with ultra-precise channel-to-channel phase control.

Key Features

• Dual-channel design with independent or linked operation
• Frequency range: 1 mHz to 40 MHz
• High sine wave purity with 0.05% audio band THD
• Precise inter-channel phase control with 0.001° resolution
• Square wave generation up to 25 MHz with variable duty cycle
• Pulse generation from 1 mHz to 100 MHz with 100 ps width resolution
• 14-digit frequency resolution (1 µHz)
• High-stability TCXO timebase
• 4.3-inch high-resolution color display with channel-specific colors
• USB and LXI connectivity for remote control

Applications

• Bench testing and circuit verification
• Automated test equipment (ATE)
• Communications and RF design
• Education and training
