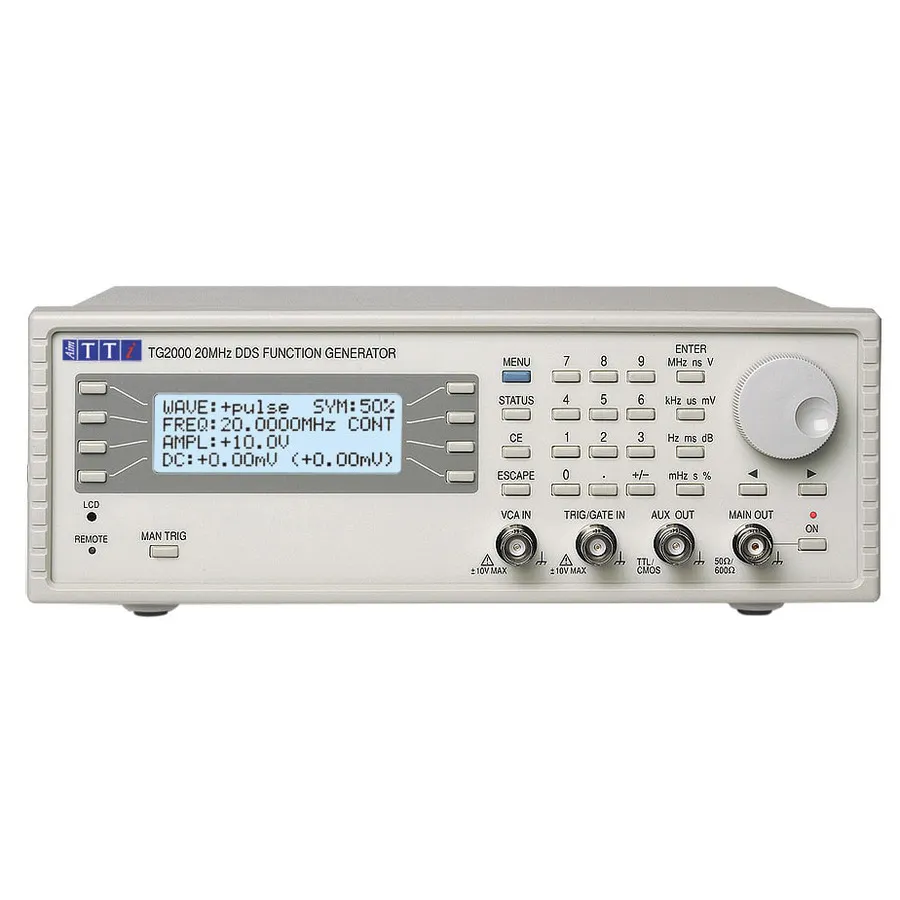

Aim TTi TG2000 Function Generator

Overview

The Aim TTi TG2000 is a 20MHz DDS (direct digital synthesis) function generator offering high-quality waveform generation at a competitive price point. Using DDS technology with a precision crystal master clock, the TG2000 delivers exceptional frequency accuracy, stability, and spectral purity with low phase noise. The generator provides complete digital control of all functions, enabling full remote control via USB or RS232 interfaces and storage of complete instrument setups for automated testing sequences.

Key Features

• Frequency range: 0.001Hz to 20MHz with 6-digit or 1mHz resolution
• Frequency stability: 1ppm with 10ppm one-year accuracy
• Amplitude: 5mV to 20V peak-to-peak from 50 or 600 Ohm output impedance
• Low distortion, high spectral purity sine waves
• Modulation modes: AM, FSK, gated, and tone switching
• Internal phase-continuous sweep (linear or logarithmic)
• USB and RS232 interfaces for full remote control
• Backlit LCD display (4 rows × 20 characters)
• Numeric keypad and rotary encoder for parameter control
• Nine user memories plus auto-save of current state
• Auxiliary sync outputs: waveform sync, sweep sync, and trigger out

Applications

• General-purpose function generation and waveform synthesis
• Test and measurement in research and development
• Automated test system implementation
• Frequency response analysis
• Educational demonstrations and training
