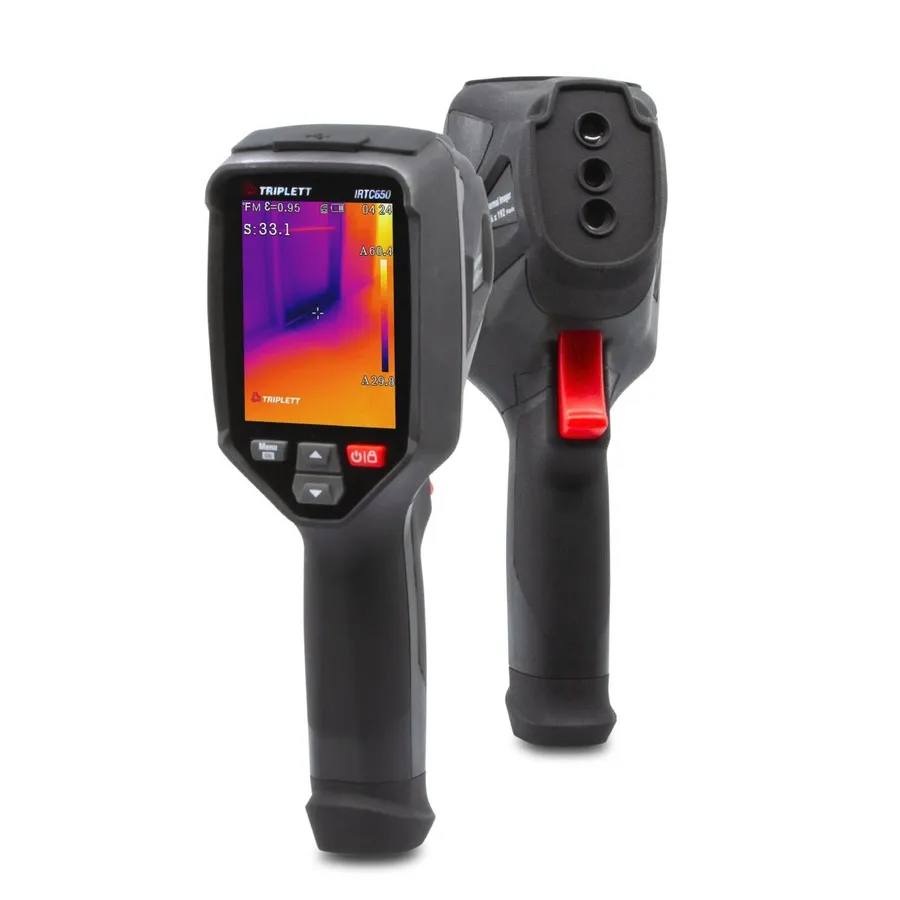

Triplett IRTC650 Thermal Imaging Camera
Triplett IRTC650 is an advanced thermal imaging camera with 256×192 pixel IR resolution, ≤40mK thermal sensitivity, temperature range -20 to 550°C, ideal for preventive maintenance and diagnostics.
Product details
| Model | IRTC650 |
| Manufacturer | Triplett |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The Triplett IRTC650 is an advanced thermal imaging camera designed for preventive maintenance and troubleshooting in electrical systems, HVAC equipment, mechanical machinery, and automotive applications. It features a 256 × 192 pixel infrared thermal sensor with ≤40mK sensitivity and a built-in 2MP visible light camera. The dual-camera system displays thermal and visible light images on a 3.2-inch color LCD screen with multiple display modes including Infrared, Visible Light, Picture-in-Picture, and Fusion, enabling comprehensive analysis of both thermal anomalies and physical conditions.
Key Features
- Temperature range: -20 to 550°C (-4 to 1022°F)
- IR resolution: 256 × 192 pixels with ≤40mK thermal sensitivity (NETD)
- Basic accuracy: ±2% or ±2°C
- Field of View: 62 × 48 degrees
- Focus-free operation with 0.5m minimum focus distance
- Visible light camera: 2MP (1600 × 1200 pixels)
- Display modes: Infrared, Visible Light, PIP (Picture-in-Picture), and Fusion
- 8 color display palettes: Iron, Rainbow, Grey, Grey Inverted, Brown, Blue-Red, Hot-Cold, Feather
- Real-time center spot and automatic hot/cold markers
- Frame rate: 9 Hz (9 frames per second)
- Spectral response: 8-14µm
- Adjustable emissivity: 0.01 to 1.0
- Built-in 3.4 GB storage for MP4 video and JPG images
- Menu interface available in 6 languages: English, Italian, Spanish, French, German, Chinese
- Real-time clock/calendar function
- USB connectivity for PC data transfer
- Rechargeable Lithium Ion battery
- Auto power-off feature (disableable)
Applications
- Electrical system fault detection and preventive maintenance
- HVAC system diagnostics and efficiency assessment
- Mechanical equipment monitoring and failure detection
- Building insulation and envelope integrity assessment
- Water leak and moisture detection
- Heat loss identification from poor insulation or faulty windows/doors
- Automotive electrical and thermal diagnostics
Included Accessories
- Rechargeable Lithium Ion battery
- SD card
- USB cable
Specifications
| Resolution | 320 x 240 |
| Series | IRTC Series |
| Field of View | 62 x 48 |
| Includes | Rechargeable Lithium Ion battery, SD card, USB cable, limited 3-year warranty |
| Maximum Temperature | 550°C |
| Minimum Temperature | -20°C |
| Sensitivity | ≤40mk |
