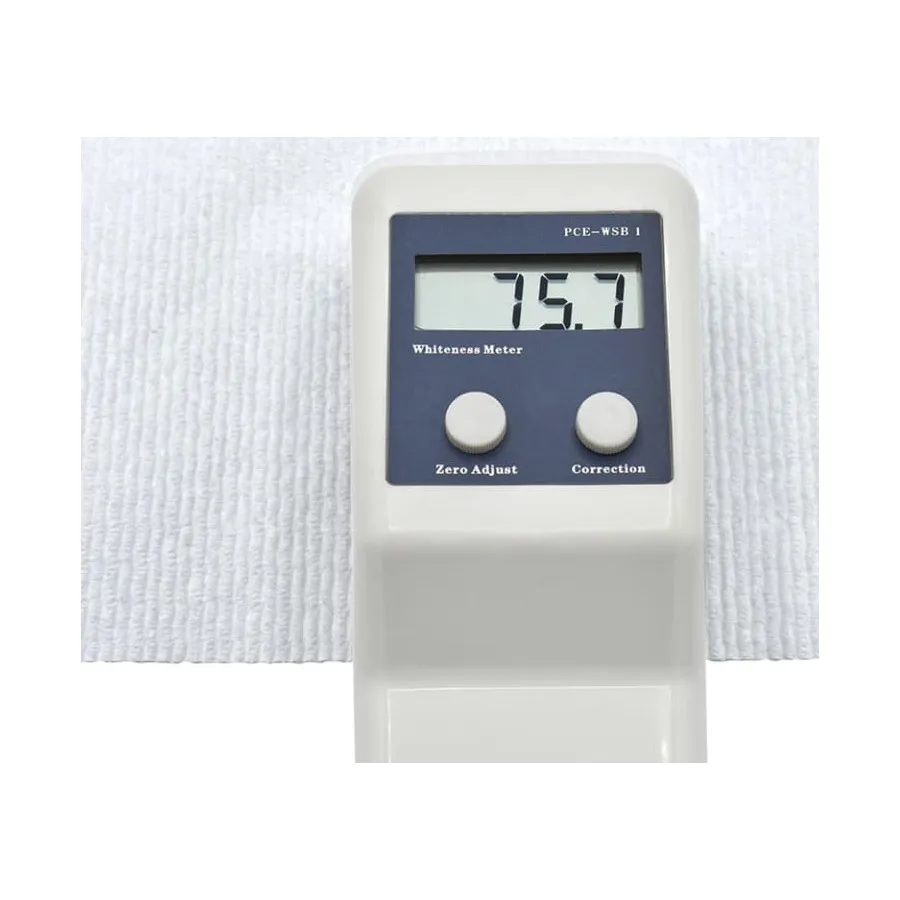

PCE Instruments PCE-WSB 1 Digital Whiteness Color Meter
Request a quote
PCE-WSB 1 handheld digital whiteness meter with 0-100 scale and ±0.1 accuracy for measuring brightness of paper, textiles, paint, and other materials.
Product details
| Model | PCE-WSB 1 |
| Manufacturer | PCE Instruments |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The PCE-WSB 1 is a portable, battery-operated digital whiteness meter for measuring brightness levels of a wide range of non-metallic materials. The device uses a diffuse reflection method to assess whiteness on a 0-100 scale and is widely used in quality control across paper, textile, paint, chemical, and cosmetics manufacturing. It includes factory calibration and comes with calibration standards for validation and periodic recalibration in the field.
Key Features
- Brightness measurement on 0-100 scale (displays up to 199.9)
- Whiteness degree measurement of blue light (Wb = R457)
- Repeat accuracy: ±0.1
- Resolution: 0.1
- Easy-to-read LCD display
- Compact and lightweight design
- Ideally suited for flat surfaces
- Factory calibrated
- Meets ISO 2470 and ISO 3688 standards
Applications
- Paper and cardboard brightness assessment
- Textile and fabric whiteness measurement
- Paint and enamel quality control
- Plastic and porcelain brightness verification
- Building material and cement evaluation
- Chemical, powder, and starch analysis
- Flour and salt brightness testing
- Detergent and cosmetics quality control
Included Accessories
- PCE-WSB 1 digital whiteness meter
- Black calibration standard
- White calibration standard
- Brilliance calibration standard
- 2x Powder test boxes
- Protective carrying case
- User manual
Specifications
| Aperture Size | 15 mm |
| Battery Type | 1.5V AA |
| Height | 2.50" |
| Length | 9.25" |
| Power Supply | 5V Power Supply/Battery Powered |
| Safety Rating | CE |
| Special Features | Measures brightness level by measuring the intensity of the light reflection diffused on a scale of 0 to 100 (displays values up to 199.9) |
| Warranty | 2 Years |
| Width | 2.90" |
