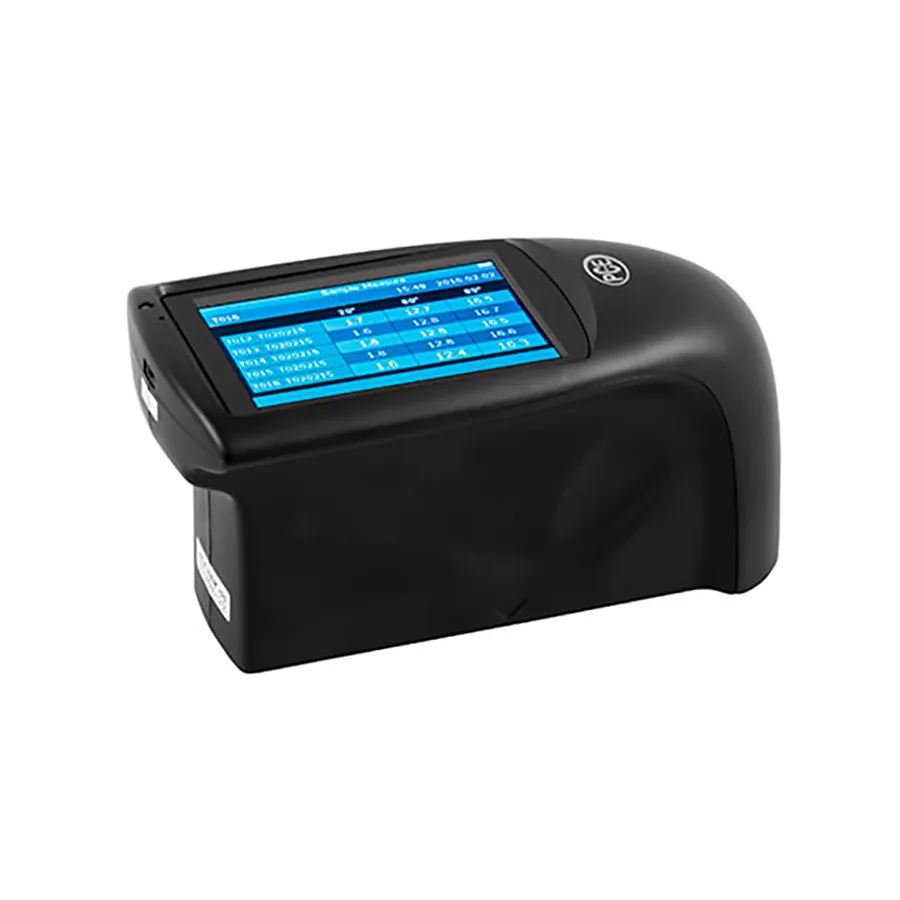

PCE Instruments PCE-PGM 100 Gloss Meter
Request a quote
PCE Instruments PCE-PGM 100 is a multi-angle gloss meter with 20°/60°/85° geometries, touchscreen display, and internal memory for 1000 measurements.
Product details
| Model | PCE-PGM 100 |
| Manufacturer | PCE Instruments |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-PGM 100 is a professional gloss meter designed for quality control and incoming goods inspection. It measures surface gloss across three distinct geometries—20°, 60°, and 85°—using the reflection principle. The instrument emits light onto a surface, measures the reflected light, and calculates the degree of gloss, making it suitable for testing a wide variety of surface finishes.
Key Features
- Three measurement geometries: 20°, 60°, and 85°
- Wide measuring range: 20° and 60° (0–1000 GU), 85° (0–160 GU)
- 3.5-inch TFT touchscreen display
- High readability: 0.1 GU
- Internal memory up to 1000 measurements
- Integrated evaluation software for data analysis
- Complies with standards: ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
- Calibration plate included
Applications
- Quality control and incoming goods inspection
- Surface finish testing for paints and coatings
- Gloss measurement across multiple angles
Included Accessories
- Gloss meter PCE-PGM 100
- Charging adapter
- Rechargeable lithium-ion battery
- USB cable
- Calibration plate
- Evaluation software on CD-ROM
- Instruction manual
Specifications
| Angle | 20, 60, 85 Deg. |
| Battery Type | 3.7V Li-ion |
| Display Scale | 320x480 |
| Display Size | 3.5" |
| Height | 6.30" |
| IO Interface | USB, RS-232 |
| Length | 3.00" |
| Memory | Internal Memory |
| Power Supply | Battery Powered |
| Safety Rating | CE |
| Series | PCE-PGM Series |
| Warranty | 2 Years |
| Width | 3.50" |
