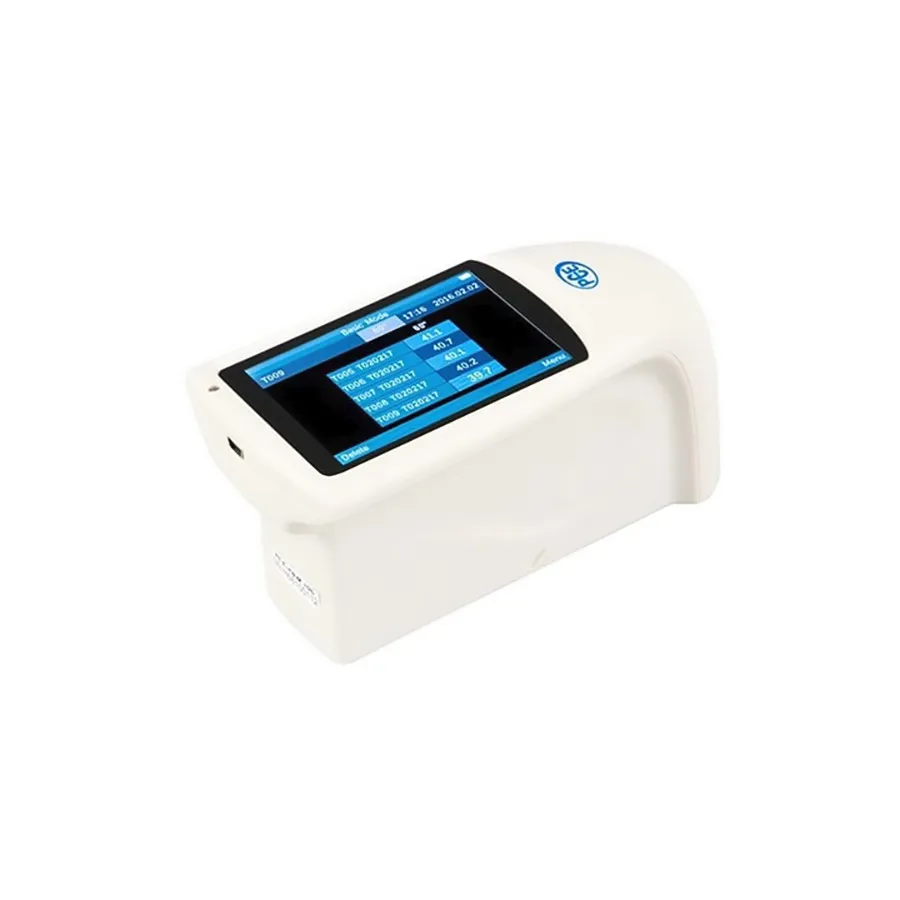

PCE Instruments PCE-IGM 60 Gloss Meter
Request a quote
PCE-IGM 60 gloss meter with 60° measuring geometry, 3.5" touch display, USB and RS-232 interfaces, and up to 2000 measurement points for surface analysis.
Product details
| Model | PCE-IGM 60 |
| Manufacturer | PCE Instruments |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The PCE-IGM 60 gloss meter is an optical measuring instrument with a single measuring geometry of 60°. It analyzes surfaces by transmitting light at a 60° angle, with most light penetrating the surface while remaining light reflects back for gloss value calculation. The device stores measured values internally and includes software for later analysis on a computer, with capacity for up to 2000 measurement points to handle the majority of surface types.
Key Features
- 60° measuring geometry for standard gloss measurement
- 3.5-inch TFT touch display
- Measuring range: 0–300 GU
- D65 light source with 400–700 nm wavelength
- Up to 2000 measurement point capacity
- Internal memory for data storage
- USB and RS-232 interfaces
- Includes evaluation software on CD-ROM
Applications
- Surface gloss quality control in manufacturing
- Paint and coating finish verification
- Material surface characteristic analysis
- Production line quality assurance
Included Accessories
- Lithium-Ion battery
- Evaluation software (CD-ROM)
- USB cable
- Calibration plate
- Instruction manual
Specifications
| Angle | 60 Deg. |
| Battery Type | Li-Ion |
| Height | 6.30" |
| IO Interface | USB, RS-232 |
| Length | 6.30" |
| Memory | Internal Memory |
| Power Supply | Battery Powered |
| Safety Rating | CE |
| Series | PCE-IGM Series |
| Warranty | 2 Years |
| Wavelengths | 400-700 nm |
| Width | 3.40" |
