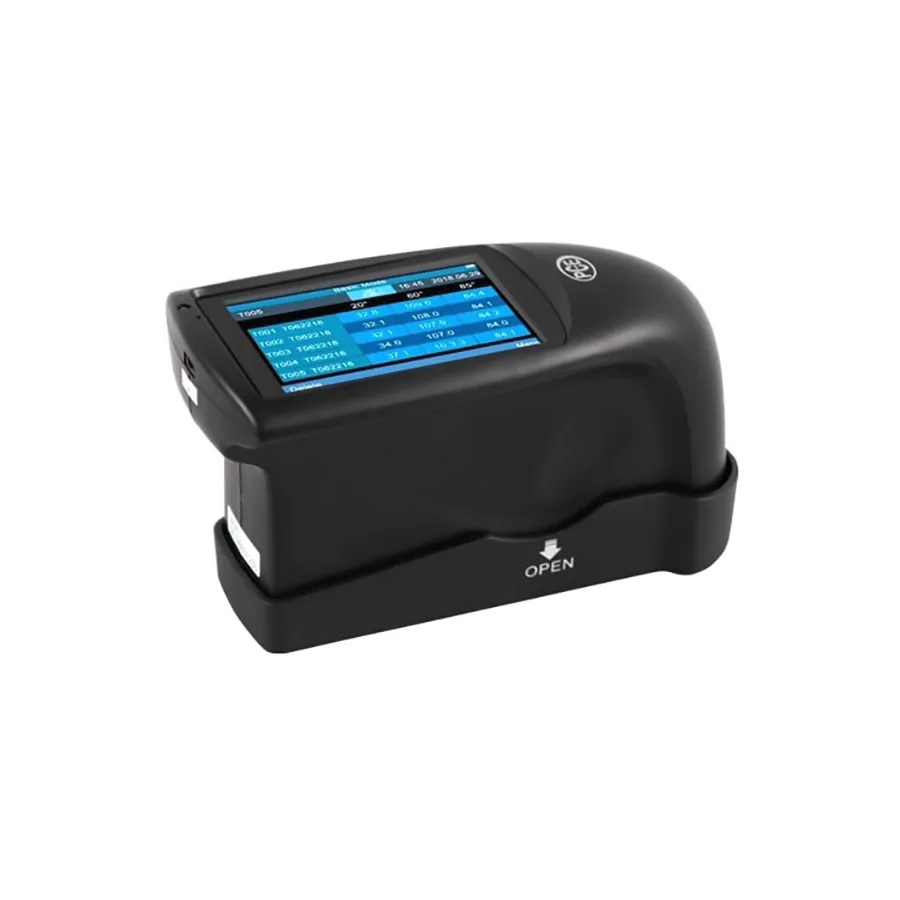

PCE Instruments PCE-IGM 100 Gloss Meter
Request a quote
PCE-IGM 100 gloss meter with three measuring geometries (20°, 60°, 85°), 3.5" touch display, USB and RS-232 interfaces, and internal memory for quality control applications.
Product details
| Model | PCE-IGM 100 |
| Manufacturer | PCE Instruments |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The PCE-IGM 100 gloss meter is a precision tester for determining surface gloss by measuring spectral reflections of light beams on surfaces. Equipped with a responsive 3.5-inch TFT touch display, it enables easy navigation and is particularly valuable in quality control applications where consistent surface characteristics are essential across production batches.
Key Features
- Three measuring geometries: 20°, 60°, and 85°
- 3.5-inch TFT touch display (320 x 480 pixels)
- D65 light source with 400–700 nm wavelength
- Internal memory for measurement storage
- USB and RS-232 interfaces for data transfer
- Includes evaluation software on CD-ROM
- Calibration plate included
Applications
- Surface quality control in manufacturing and production
- Quality assurance for paints, coatings, and finishes
- Surface texture and characteristic verification
- Research and material analysis
Included Accessories
- Evaluation software (CD-ROM)
- Charging adapter
- USB cable
- Calibration plate
- Instruction manual
Specifications
| Angle | 20, 60, 85 Deg. |
| Battery Type | Li-Ion |
| Height | 6.30" |
| IO Interface | USB, RS-232 |
| Length | 3.00" |
| Memory | Internal Memory |
| Power Supply | Battery Powered |
| Safety Rating | CE |
| Series | PCE-IGM Series |
| Warranty | 2 Years |
| Wavelengths | 400-700 nm |
| Width | 3.50" |
