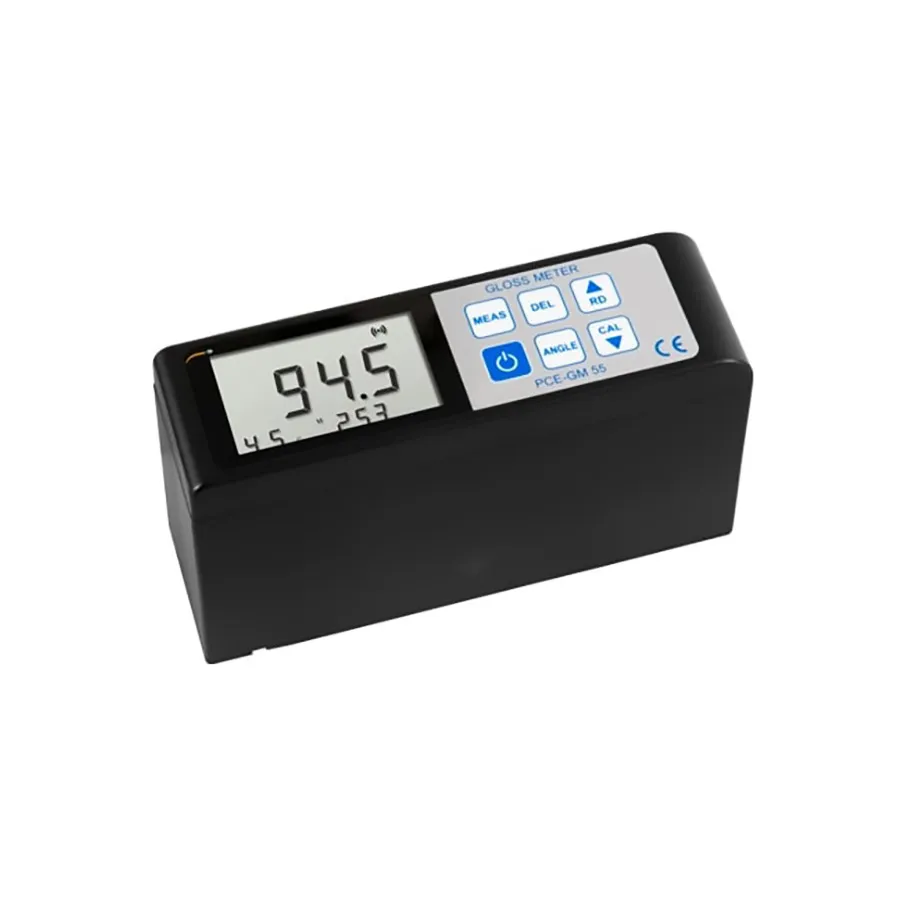

PCE Instruments PCE-GM 55 Gloss Meter
Request a quote
PCE Instruments PCE-GM 55 is a 3-angle gloss meter for measuring surface gloss on paints, textiles, and paper with 0-200 gloss unit range.
Product details
| Model | PCE-GM 55 |
| Manufacturer | PCE Instruments |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The PCE-GM 55 is a 3-angle gloss meter designed to measure surface gloss on paints, coatings, textiles, and paper. It employs the principle of light reflection to determine gloss levels and is compliant with ASTM, DIN, and EN ISO standards. The device features an LCD display and supports data storage of up to 254 measurements, with the ability to transfer results to a PC via an integrated serial interface for analysis and reporting.
Key Features
- Three measuring angles: 20°, 45°, and 75°
- Measuring range: 0 to 200 gloss units
- Resolution: 0.1 gloss units
- 7 × 14 mm elliptical measuring surface
- Data storage for up to 254 measurements
- LCD display with continuous measurement
- Serial interface for PC data transfer
- Li-Ion rechargeable battery with 5V USB charging
Applications
- Paint and coating gloss testing and quality assurance
- Textile and paper surface quality assessment
- Manufacturing quality control and compliance verification
Specifications
| Angle | 20, 45, 75 Deg. |
| Battery Type | Li-Ion |
| Height | 5.50" |
| IO Interface | Serial |
| Length | 1.80" |
| Memory | Internal Memory |
| Power Supply | Battery Powered |
| Safety Rating | CE |
| Series | PCE-GM Series |
| Warranty | 2 Years |
| Width | 3.00" |
