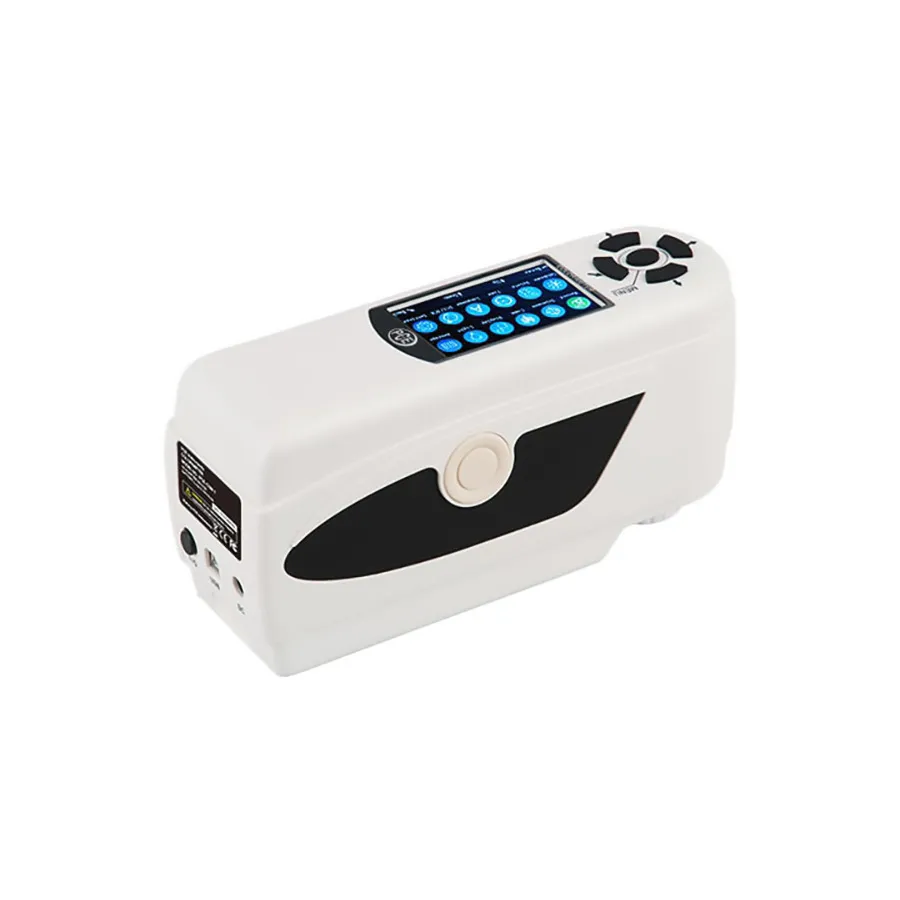

PCE Instruments PCE-CSM 6 Colorimeter
Request a quote
PCE-CSM 6 colorimeter for quality control with CIE L*a*b color spaces, 8mm aperture, and storage for 20,000 samples.
Product details
| Model | PCE-CSM 6 |
| Manufacturer | PCE Instruments |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The PCE-CSM 6 is a portable colorimeter designed for quality control applications. It offers high accuracy color measurement using multiple color space options and comes equipped with a rechargeable lithium-ion battery and included PC software for data analysis.
Key Features
- Color spaces: CIE L*a*b*C*h and CIE L*a*b*
- 8mm diameter measuring aperture
- D65 light source with white calibration
- Color difference formulas: Delta E*ab, Delta L*a*b, Delta E*C*h
- Silicon photoelectric diode sensor
- Storage: 100 reference values and 20,000 samples
- Rechargeable lithium-ion battery
- USB interface for PC data transfer
- Included PC software for analysis
Applications
- Quality control and color accuracy verification
- Color difference determination
- Chromaticity index measurement
- Color sample database management
- Color difference cumulative analysis
Included Accessories
- Aluminum carrying case
- Rechargeable lithium-ion battery
- Mains adapter
- White calibration plate
- PC software
- Instruction manual
Specifications
| Aperture Size | 8 mm |
| Battery Type | 3.7V Li-ion |
| Height | 8.07" |
| IO Interface | USB, RS-232 |
| Length | 2.75" |
| Memory | Internal Memory |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC |
| Series | PCE-CSM Series |
| Style | Portable |
| Warranty | 2 Years |
| Width | 3.93" |
