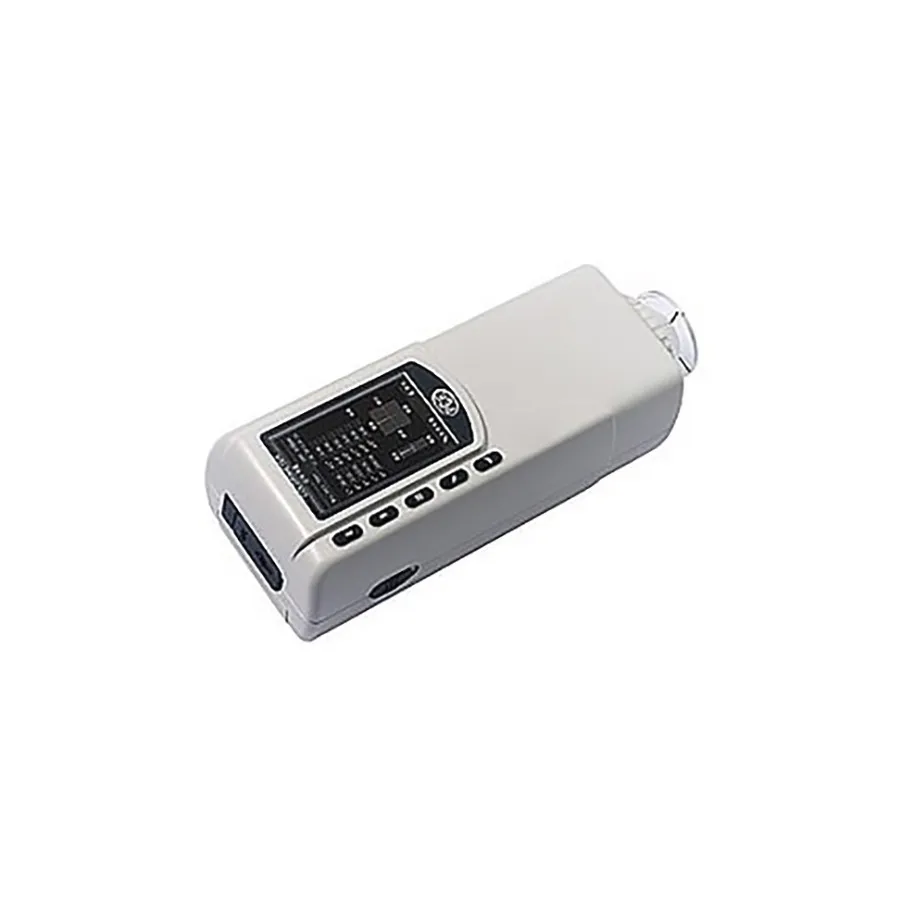

PCE Instruments PCE-CSM 2 Handheld Colorimeter

Overview

The PCE Instruments PCE-CSM 2 is a handheld colorimeter designed for quality control across various industrial sectors. It features an 8mm measuring aperture with 45°/0° geometry and a D65 LED light source. The device measures color spectra using a silicon photoelectric diode sensor and supports multiple CIE color spaces (L*a*b*C*h, L*a*b, XYZ). The ergonomic design allows for vertical measurement without placing the entire device on the object, making it ideal for measuring damp objects, textiles, and food products.

Key Features

• 8mm measuring aperture with 45°/0° geometry
• Silicon photoelectric diode sensor
• D65 LED light source
• Color spaces: CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
• Color difference formulas: Delta E*ab, Delta L*ab, Delta E*C*H
• Automatic white and black calibration
• Reference value storage and sample comparison
• Rechargeable lithium-ion battery
• Included CQCS3 PC software for data analysis
• User-friendly menu navigation

Applications

• Dental technology color matching
• Painting and coating quality control
• Plastic manufacturing color consistency
• Food product color assessment (meat, fruit, etc.)
• Textile color standardization

Included Accessories

• USB Cable
• Lithium-ion Battery
• AC Power Adapter
• Wrist Band
• Standard Calibration Plate (white)
• Computer Software (CQCS3)
• Soft Carry Case
• Instruction Manual
