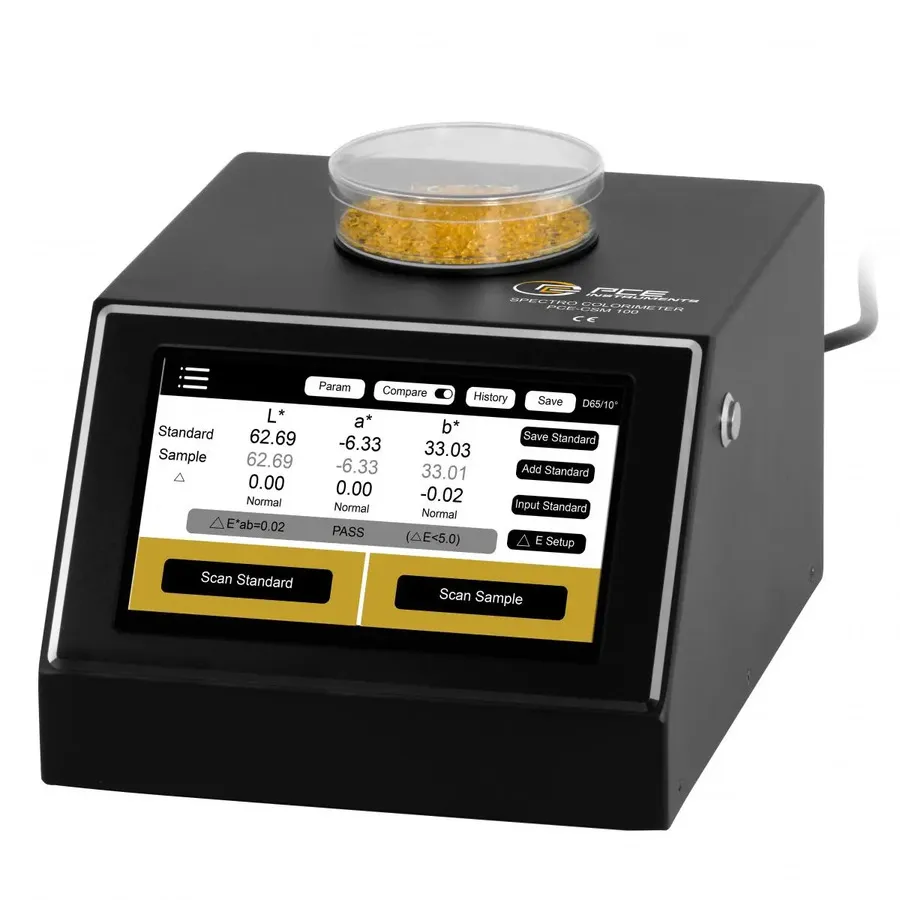

PCE Instruments PCE-CSM 100 Colorimeter

Overview

The PCE Instruments PCE-CSM 100 is a precision desktop colorimeter designed for objective color testing in industrial and commercial applications. It features a 50mm measuring aperture with D/8° measuring geometry including a mirror component (SCI) and a full-spectrum LED light source. The device records color data in the wavelength range from 400 to 700 nm with a spectral interval of 10 nm, completing measurements in approximately 1.5 seconds. It is ideal for production monitoring, quality inspection, and incoming goods verification across various industries.

Key Features

• D/8° measuring geometry with SCI (mirror component)
• 50mm measuring aperture with full-spectrum LED light source
• 7" IPS touchscreen display (1024 × 600 pixels)
• Wavelength range 400–700 nm with 10 nm spectral interval
• 12 color spaces: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, and more
• 8 ΔE color difference formulas: ΔEab, ΔEuv, ΔE94, ΔE00, CMC variants
• Integrated electronic color tables with over 90% accuracy
• Integrated QC function with customizable tolerance thresholds
• High repeatability: ΔEab ≤ 0.03, cross-device consistency ΔEab ≤ 0.4
• Spectral reflectance curve analysis
• Memory for 1000 color values and 1000 comparison recordings
• USB and wireless data transfer capabilities
• Multilingual menu navigation
• Mains powered for reliable continuous operation

Applications

• Production monitoring and process control
• Quality inspection and incoming goods verification
• Laboratory color analysis
• Plastics processing color matching and consistency
• Paint and printing industry quality control
• Textile industry color standards and matching

Included Accessories

• Device cable
• USB-C cable
• Cleaning cloth
• Sample containers (2)
• Operating manual
• PC software
