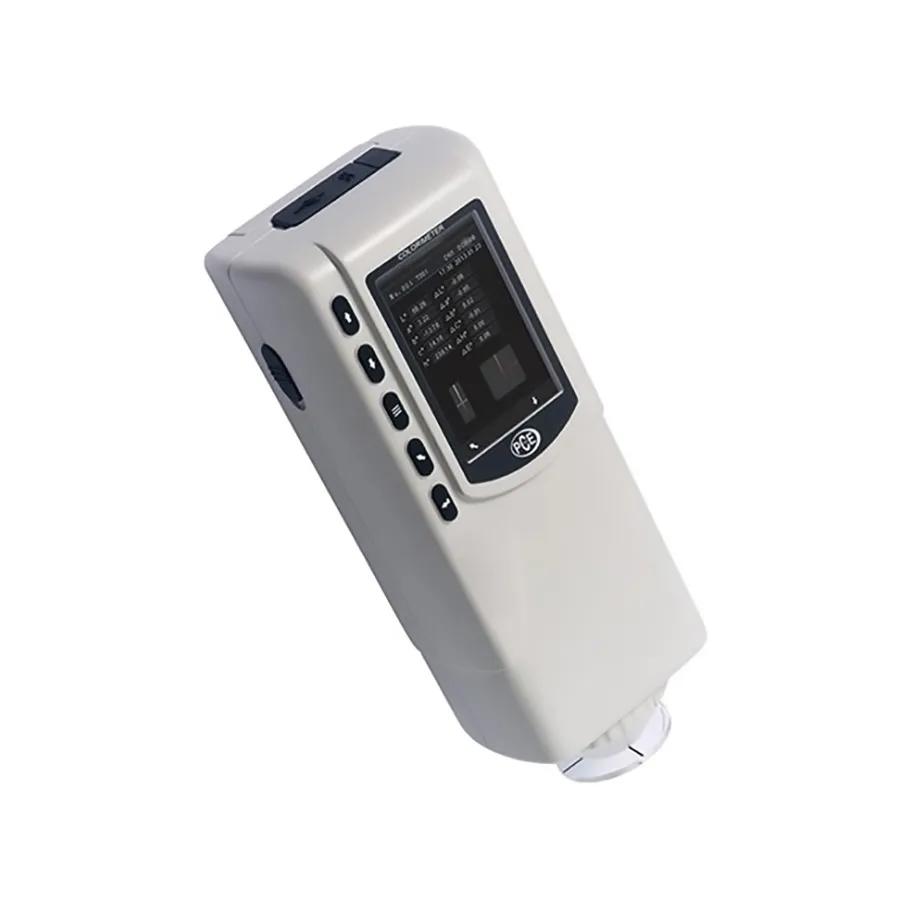

PCE Instruments PCE-CSM 1 Handheld Colorimeter

Overview

The PCE Instruments PCE-CSM 1 is a handheld portable colorimeter designed for quality control applications. It features a 6mm measuring aperture and supports multiple color spaces (CIE L*a*b*C*h, CIE L*a*b, CIE XYZ) for comprehensive color analysis. The device allows you to store up to 100 reference values and 20,000 samples, with measured data easily transferable to a PC via USB interface.

Key Features

• 6mm measuring aperture with 8/d geometry
• Silicon photoelectric diode sensor
• Multiple color spaces: CIE L*a*b*C*h, CIE L*a*b, CIE XYZ
• Color difference formulas: Delta E*ab, Delta L*ab, Delta E*C*H
• Automatic white and black calibration
• Reference value storage and sample comparison
• Rechargeable Li-ion battery
• Included PC software for data analysis

Applications

• Quality control in manufacturing
• Color matching and verification
• Material color consistency checking

Included Accessories

• USB Cable
• Li-ion Battery
• AC Power Adapter / Charger
• Wrist Band
• Calibration Plate (white)
• Lens Cap (serves as black calibration plate)
• Soft Carrying Case
• PC Software
• User Manual
