Megger MPAC208 Pro Kit provides professional acoustic and thermal imaging with 208 MEMS microphones, 100 kHz bandwidth, and integrated thermal module.
Product details
| Model | MPAC208 Pro Kit |
| Manufacturer | Megger |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The Megger MPAC208 Pro Kit is a complete professional-grade solution for acoustic and thermal diagnostics in complex industrial environments. It combines the high-performance MPAC208 acoustic imaging camera with the MPAC-V ultrasonic verifier and the MPAC-TM640 thermal imaging module. The integrated system enables comprehensive asset evaluation through simultaneous acoustic and thermal analysis, with real-time overlay displays on the 8-inch touchscreen for immediate fault identification and assessment.
Key Features
MPAC208 Acoustic Camera
- 208 MEMS microphone array with 100 kHz bandwidth (2 kHz to 100 kHz capture range)
- 13 megapixel optical camera with 8-inch 1920 x 1200 touchscreen display
- Dynamic range 28 dB to 132 dB (adjustable)
- Up to 200m detection range for remote fault location
- 10 hour battery life with two 5-hour smart battery packs
- Gas leak, partial discharge, and mechanical fault detection modes
MPAC-V Verifier
- Sound pressure level and frequency response verification
- Acoustic cloud image alignment verification
- Sampling rate 96 kHz with frequency range 20 kHz to 48 kHz
- Multiple preloaded test sound files for camera performance confirmation
- USB-C dual-port power adaptor and cable included
MPAC-TM640 Thermal Module
- Infrared resolution 640 x 512 at 12 µm with 6x optical zoom
- Temperature measurement range -20°C to +120°C or +120°C to +550°C
- Noise Equivalent Temperature Difference (NETD): 60 mK at 25°C
- Frame rate 25 Hz with 13 mm focal length and 32.9° x 26.6° field of view
- Plug-and-play USB-C integration with MPAC208 imager
- Robust aluminum housing with manual focusing
Applications
- Leak detection in compressed air and gas systems
- Predictive maintenance of mechanical systems and rotating equipment
- High-voltage equipment inspections and partial discharge analysis
- Industrial reliability and energy efficiency auditing

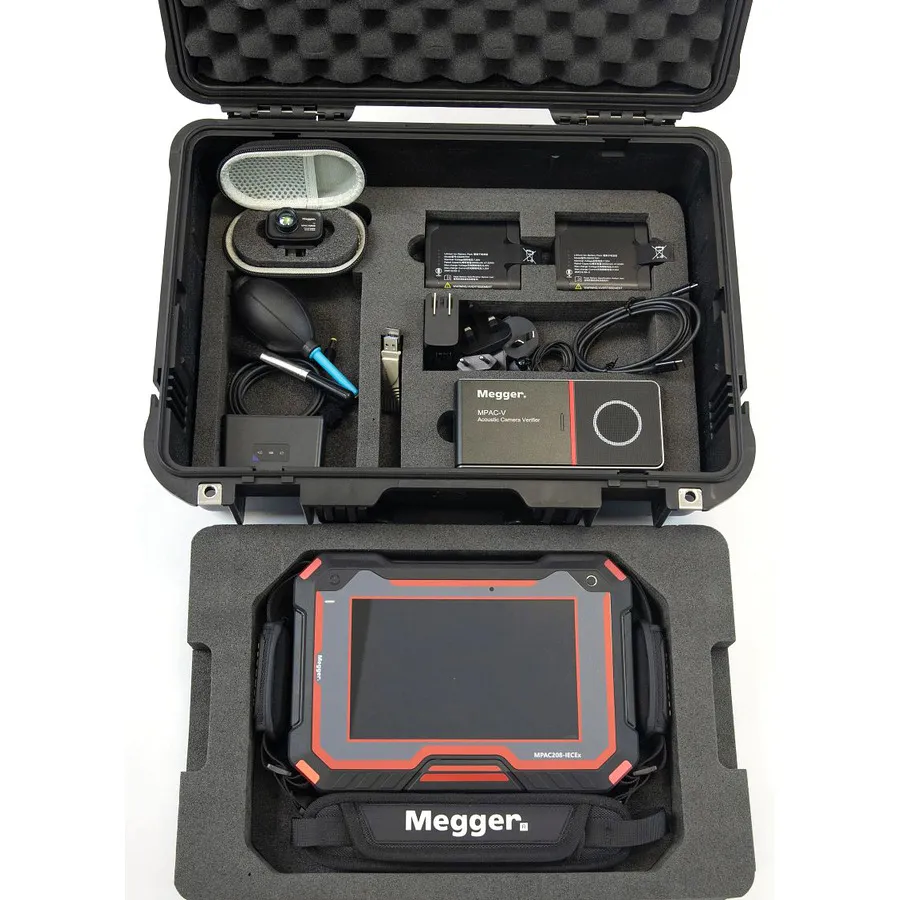

Included Accessories
- MPAC208 Acoustic Camera unit
- MPAC-V Verifier/Ultrasound Generator
- MPAC-TM640 Thermal Camera Module (640 x 512)
- Hand straps and shoulder strap
- Universal mains power charger and USB-C charging cable
- Headphones
- Hard protective carry case
- Two smart battery packs and smart battery charger
- 64 GB microSD card and USB-A card reader
- 8 GB USB-C/USB-A memory stick
- Cleaning tool
- Acoustic and Thermal Analysis Software
Specifications
| Resolution | 1920 x 1201 |
| Display Type | 8-inch Capacitive Touchscreen |
| Series | MPAC208 Series |
| Alternate Product Number | 1016-922 |
| Dynamic Range | 132 dB |
| Frequency Range | 2 to 100 kHz |
| Includes | MPAC208, MPAC-V, Camera Module MPAC-TM640, Hand and Shoulder straps, Mains power charger, Charging cable, Headphones, Carry case, microSD card, microSD card reader, Memory stick, Cleaning tool, Battery pack (x2)and Charger, Acoustic & Thermal Analysis Sof |
| Interface | USB-C, Bluetooth, Micro SD Card |
| IP Rating | IP54 |
| Range | 0.5 to 200 m (1 - 656 ft) |
| Type | Acoustic Leak Detector |
