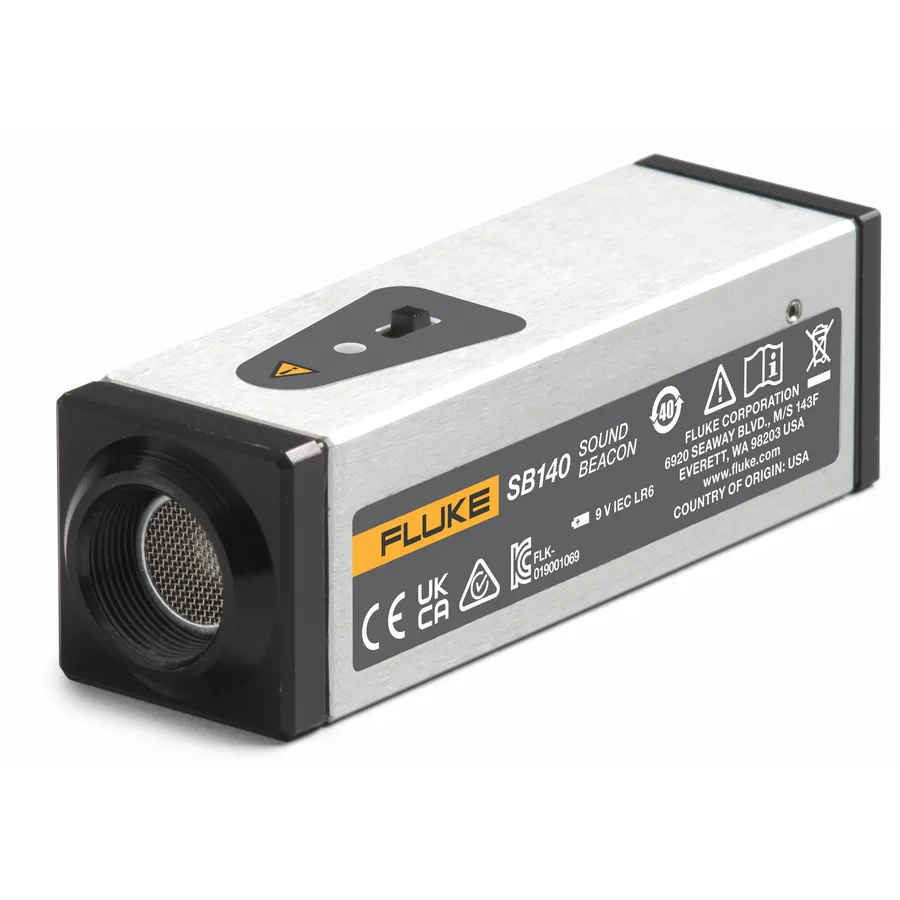

Fluke FLUKE-SB140 Sound Beacon
Request a quote
Fluke FLUKE-SB140 sound beacon emits 40 kHz ultrasound for non-pressurized leak detection in vessels, paired with acoustic imagers for visual identification.
Product details
| Model | FLUKE-SB140 |
| Manufacturer | Fluke |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-SB140 Sound Beacon is a portable leak detection tool designed for non-pressurized vessels and enclosures. It emits ultrasound at 40 kHz, which escapes through leak pathways and is visually detected by a paired Fluke acoustic imager. This approach eliminates the need for pressurization, making it ideal for applications where traditional pressure testing is not feasible.
Key Features
- Operates at 40 kHz frequency (±1.5 kHz)
- Battery-powered with greater than 300 hours of operation
- IP40 ingress protection rating
- Extruded aluminum housing for durability
- Simple on/off control switch
- 9-volt alkaline battery included
- Compatible with Fluke acoustic imagers in Beacon Mode
Applications
- Automotive window and door seal testing
- Aircraft tank and window seals
- Clean room tightness verification
- Refrigerator, washer, and dishwasher seal inspection
- Maritime vessel and container sealing assessment
- Building door and window seal testing
- Pitot-static system integrity checks
Included Accessories
- Sound beacon unit
- 9 V battery
- 1-inch probe
- Soft carrying case
- Instruction sheet
- Warranty card
Specifications
| Alternate Product Number | 6050675 |
| Battery Type | 9-Volt Alkaline |
| Frequency Range | 40 kHz |
| Includes | Sound Beacon unit, 9 V Battery, Soft Case, 1-inch Probe, Instruction Sheet, and Warranty Card |
| Operating Temperature Range | -20C to +54C (-4F to 130F) |
| Standards | Ingress protection - IEC 60529: IP40 |
