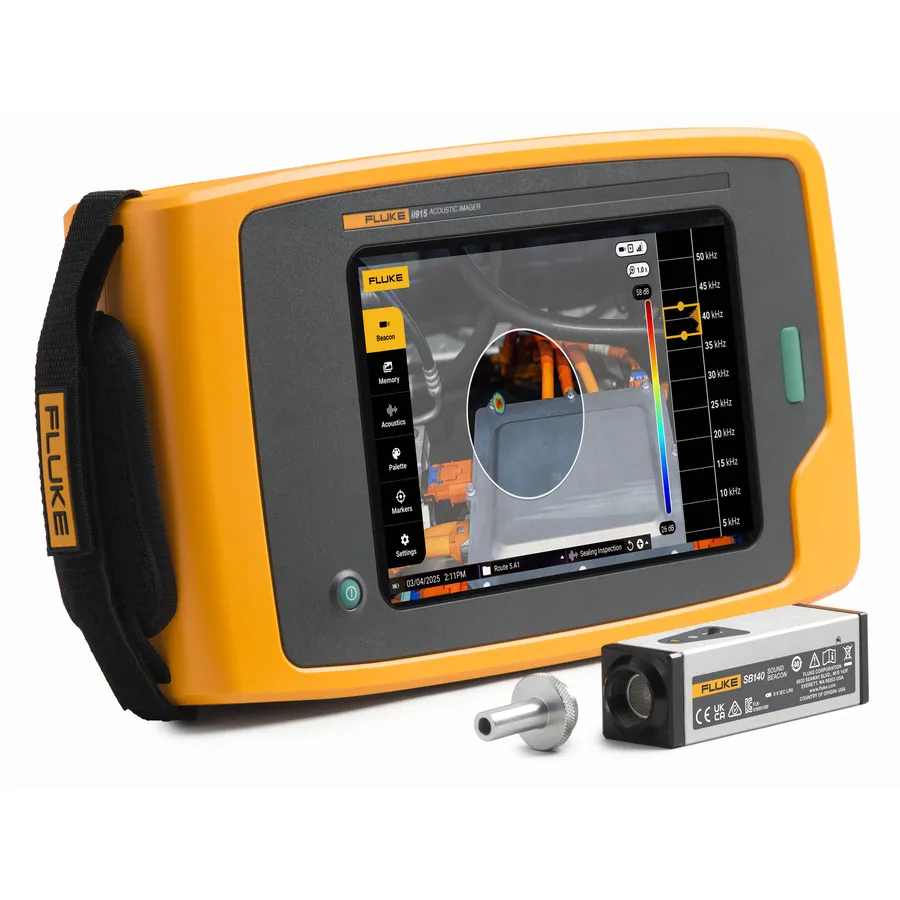

Fluke FLUKE-II915/SB140 Acoustic Imager with Sound Beacon
Request a quote
Fluke FLUKE-II915/SB140 combines the ii915 acoustic imager with SB140 Sound Beacon (40 kHz) for precision leak detection and tightness testing in sealed systems.
Product details
| Model | FLUKE-II915/SB140 |
| Manufacturer | Fluke |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-II915/SB140 combines the premium ii915 acoustic imager with the SB140 Sound Beacon ultrasonic emitter. This bundle is designed for applications requiring precision in detecting leaks and verifying seal integrity. The SB140 emits ultrasound at 40 kHz which travels through air and escapes through leak pathways, allowing the ii915 to visualize potential leak locations. Beacon Mode on the ii915 presets the frequency filter to 40 kHz for simplified operation.
Key Features
- ii915 Acoustic Imager: 2-100 kHz frequency range with 120 m detection distance
- 5.0 MP visual camera, 7-inch sunlight-readable LCD display
- LeakQ, PDQ, and MecQ analysis modes
- SB140 Sound Beacon: 40 kHz ±1.5 kHz ultrasonic emission
- Beacon Mode: preset frequency filter for simplified 40 kHz detection
- SB140 IP40 rated aluminum housing with >300 hours battery life
- WiFi connectivity and cloud integration via Fluke Connect Desktop
- 32 GB storage capacity for images and video
- 6-hour battery life on ii915
Applications
- Automotive: window and door seal testing
- Aviation: aircraft fuel tank and pitot-static system inspection
- Clean rooms: seal and tightness verification
- Appliances: refrigerator, washing machine, and dishwasher door sealing checks
- Maritime: vessel seals and cargo access area inspection
- Construction: door and window seal validation
Included Accessories
- ii915 Acoustic Imager with hand strap, neckstrap, and sensor covers
- SB140 Sound Beacon with 9V alkaline battery and soft case
- 1-inch probe accessory
- Li-Ion battery, USB-C power adapter, and charging cable
- Hard carrying case with rollers
Specifications
| Resolution | 5.0 megapixel |
| Display Type | 7" LCD |
| Series | ii Series |
| Alternate Product Number | 6053095 |
| Connectivity | WiFi |
| Display | 1280 x 800 |
| Frequency Range | 2 to 100 kHz |
| Includes | Sound Beacon unit, 9 V Battery, Soft Case, Accessory 1 inch probe, Instruction Sheet, and Warranty Card, 1X ii915 Main Body; 1X Hand Strap; 2X Sensor Array Cover; 1X Sensor Array; 1X Neckstrap; 1X USB-C Cable; 1X BP291; 1X Battery Charger ; 1X EDBC290; 1X |
| Interface | USB-C, WiFi |
| Operating Temperature Range | -10 to 45C |
| Type | Acoustic Leak Detector |
