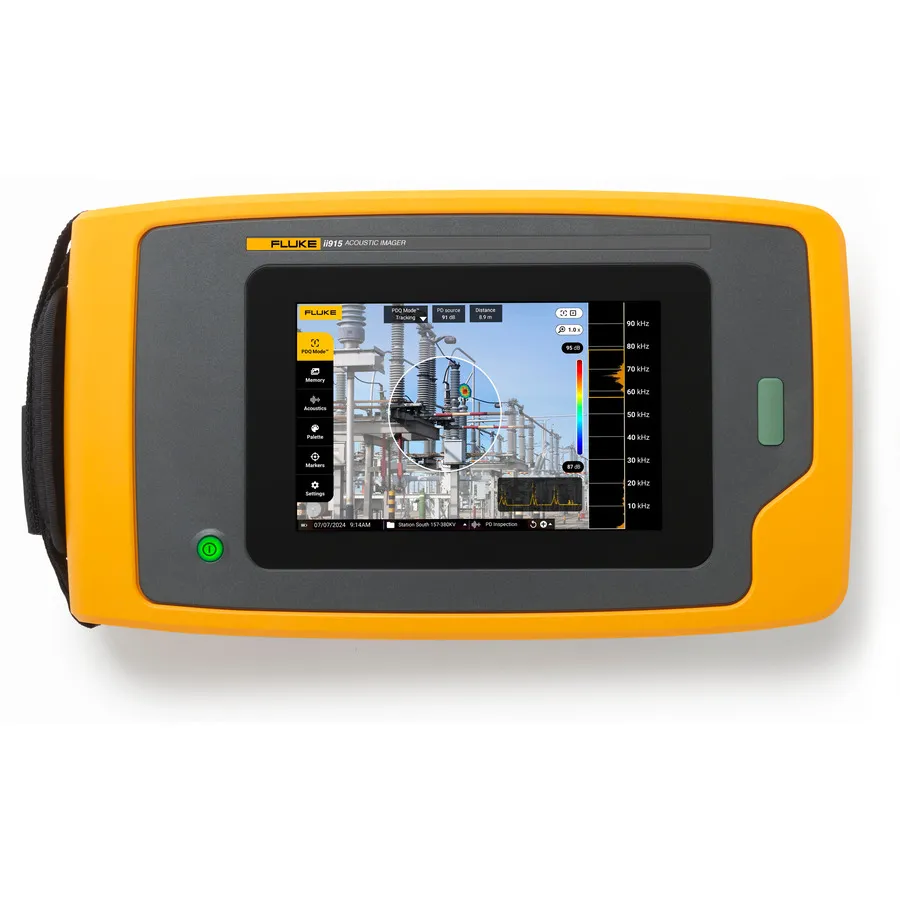

Fluke FLUKE-II915 Acoustic Imager
Request a quote
Fluke ii915 advanced acoustic imager for leak detection, partial discharge visualization, and mechanical issue scanning to 120 meters.
Product details
| Model | FLUKE-II915 |
| Manufacturer | Fluke |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The Fluke ii915 is an advanced acoustic imaging system designed for comprehensive asset inspection across compressed systems, electrical equipment, and mechanical infrastructure. Operating across a 2–100 kHz frequency range with extended detection to 120 meters (393 feet), it combines three specialized analysis modes: LeakQ for leak quantification, PDQ for partial discharge visualization in high-voltage systems, and MecQ for mechanical issue detection in large areas. This makes the ii915 the most capable solution in the ii Series for industrial maintenance teams.
Key Features
- Extended frequency range 2 to 100 kHz for comprehensive acoustic analysis
- Detection range up to 120 meters (393 feet) depending on ambient conditions
- 5.0 MP visual camera with 3× digital zoom and 7-inch sunlight-readable LCD
- LeakQ mode estimates leak size, rate, and cost impact on-device
- PDQ Mode visualizes partial discharge in insulators, transformers, and high-voltage equipment
- MecQ Mode enables efficient scanning of large areas to identify mechanical problems
- WiFi with automatic cloud upload to Fluke Connect Desktop and new ii-Series reporting platform
- 32 GB storage, 6-hour battery life, USB-C interface
- Customizable inspection profiles and real-time on-device data analysis
- Tripod connector for hands-free scanning
Applications
- Compressed air, gas, and steam system leak detection and cost estimation
- Partial discharge identification in electrical substations and distribution equipment
- Transformer and switchgear condition monitoring for electrical utilities
- Mechanical bearing, belt, and pump failure early detection
- High-voltage line inspection and grid maintenance
- Manufacturing facility predictive maintenance programs
Specifications
| Resolution | 5.0 megapixel |
| Display Type | 7" LCD |
| Series | ii Series |
| Alternate Product Number | 5594661 |
| Connectivity | WiFi |
| Display | 1280 x 800 |
| Frequency Range | 2 to 100 kHz |
| Includes | 1X Ii915 Acoustic Imager; 1X Hand Strap; 1X Sensor Array Cover; 1X Neckstrap; 1X Usb-C Cable; 1X Li-Ion Battery; 1X Power Adapter Usb-C; 1X Connector Set; 1X Hard Case; 1X Guide, Safety Info |
| Interface | USB-C |
| Operating Temperature Range | -10 to 40°C |
| Range | 0.5 to 120 meters (1.6 to 393 feet) |
| Storage | 32 GB |
| Type | Acoustic Leak Detector |
