Fluke FLUKE-II905/FPC3 Acoustic Imager
Request a quote
Fluke ii905 acoustic imager for visualizing sound leaks in compressed systems up to 70 meters with WiFi and LeakQ cost estimation.
Product details
| Model | FLUKE-II905/FPC3 |
| Manufacturer | Fluke |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview

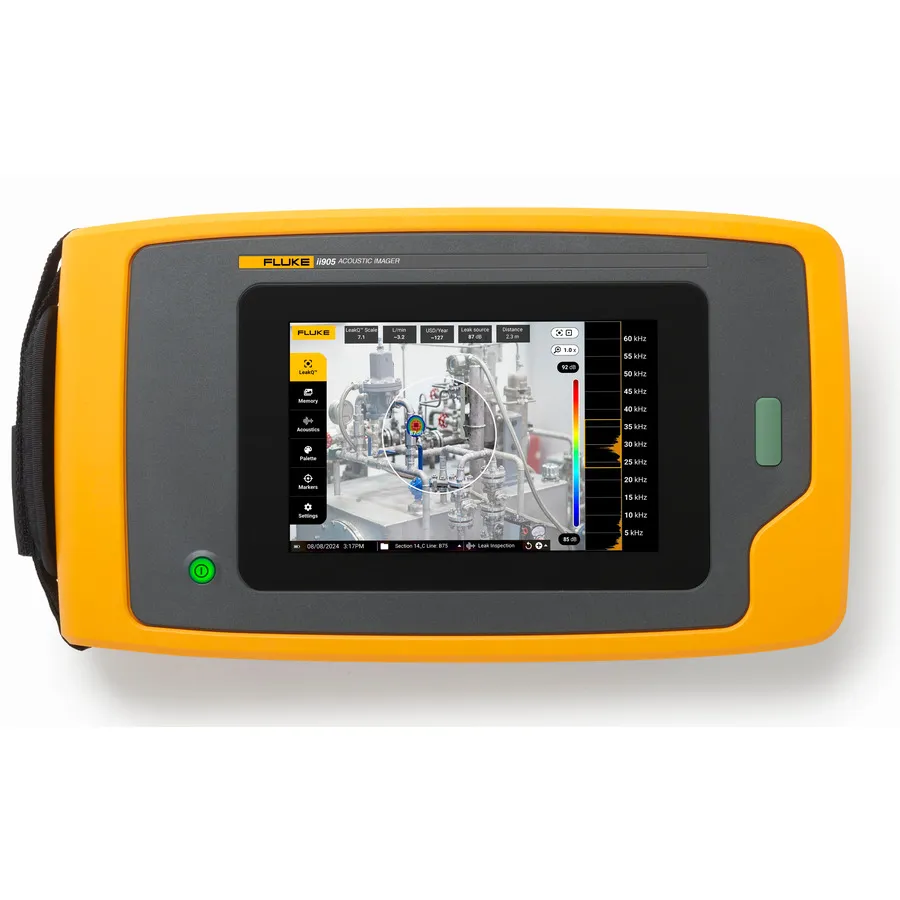

The Fluke ii905 Acoustic Imager is a professional instrument designed to locate and visualize leaks in compressed air, gas, steam, and vacuum systems. Using an array of sensitive microphones operating across a 2–65 kHz frequency range, it generates acoustic imagery overlaid on visual footage, making leak detection straightforward even in noisy industrial environments. The bundled 3-year Premium Care Plan provides comprehensive protection including accidental damage repair, annual calibration, priority support, and expedited service.
Key Features
- Frequency range 2 to 65 kHz with automatic background noise filtering via SoundMap technology
- Detection range up to 70 meters (230 feet) depending on ambient conditions
- 5.0 MP visual camera with 3× digital zoom and 7-inch sunlight-readable LCD display
- LeakQ analysis software estimates leak size, leak rate, and cost impact on-device
- WiFi connectivity with automatic cloud upload to Fluke Connect Desktop
- 32 GB storage supporting video capture up to 5 minutes per session
- 6-hour battery life for full-day field operation
- USB-C interface for data transfer and charging
- Tripod connector for hands-free operation
Applications
- Compressed air system leak detection and cost quantification
- Gas, steam, and vacuum system inspection
- HVAC and refrigeration diagnostics
- Manufacturing facility maintenance and condition monitoring
- Predictive maintenance programs
Included Accessories
- Hand strap, neck strap, and sensor array cover
- USB-C cable and power adapter
- Li-Ion rechargeable battery
- Connector set and hard protective case
- Quick start guide and safety information
- 3-year Premium Care Plan activation card
Specifications
| Resolution | 5.0 megapixel |
| Display Type | 7" LCD |
| Series | ii Series |
| Alternate Product Number | 6018211 |
| Connectivity | WiFi |
| Display | 1280 x 800 |
| Frequency Range | 2 to 65 kHz |
| Includes | 1X Ii905 Acoustic Imager; 1X Hand Strap; 1X Sensor Array Cover; 1X Neckstrap; 1X Usb-C Cable; 1X Li-Ion Battery; 1X Power Adapter Usb-C; 1X Connector Set; 1X Hard Case; 1X Guide, Safety Info; 1X Service Plan Activation Card |
| Interface | USB-C |
| Operating Temperature Range | -10 to 45°C |
| Range | 0.5 to 70 meters (1.6 to 230 feet) |
| Storage | 32 GB |
| Type | Acoustic Leak Detector |
