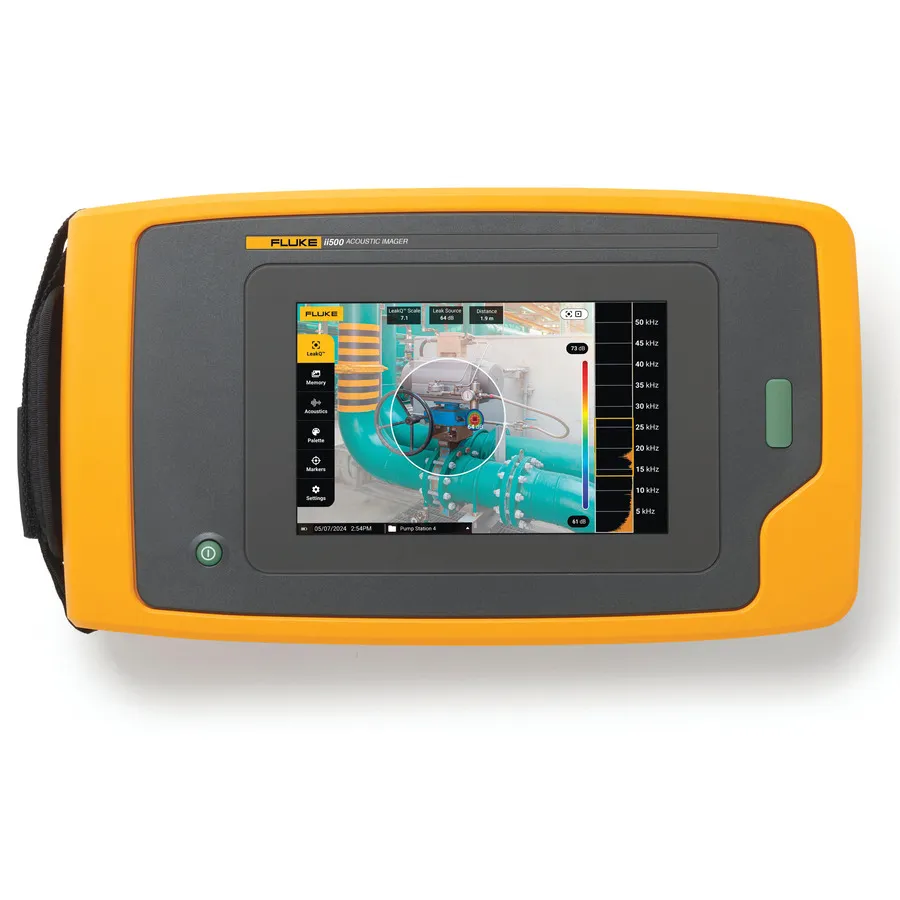

Fluke FLUKE-II500/FPC Acoustic Imager
Request a quote
Fluke ii500 Acoustic Imager visualizes compressed gas leaks with 2–52 kHz detection, 50m range, LeakQ quantification, and 6-hour battery.
Product details
| Model | FLUKE-II500/FPC |
| Manufacturer | Fluke |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The Fluke ii500 Acoustic Imager is a portable tool for detecting and visualizing leaks in compressed gas, air, steam, and vacuum systems. Using an acoustic array of sensitive microphones, it generates a SoundMap overlay on visual images to pinpoint leak locations and severity, enabling straightforward leak detection even during ongoing operations.
Key Features
- Frequency range 2–52 kHz with automatic background noise elimination
- Detection range up to 50 meters (164 feet) depending on ambient conditions
- 7-inch LCD touchscreen display with sunlight-readable backlight
- LeakQ leak quantification: scales leaks 1–10 and estimates leak rate and cost
- 0.3 MP visual camera with 63° field of view and 25 FPS frame rate
- 20 GB onboard storage for SoundMap images (.JPG, .PNG) and videos (.MP4, up to 5 minutes)
- 6-hour battery life for full-day field operations
- USB-C data transfer and charging
- Customizable inspection profiles for different application types
Applications
- Compressed air and gas system maintenance and leak detection
- Steam system inspection and optimization
- Vacuum system diagnostics
- Mechanical vibration and bearing condition monitoring
Included Accessories
- Hand strap and neck strap for ergonomic field use
- Sensor array cover for protection
- Li-Ion rechargeable battery and charger with charging bay
- USB-C cable for data transfer and charging
- Connector set and hard carrying case
- User guide and safety information
Specifications
| Resolution | 0.3 megapixel |
| Display Type | 7" LCD |
| Series | ii Series |
| Alternate Product Number | 6017815 |
| Display | 1280 x 800 |
| Frequency Range | 2 to 52 kHz |
| Includes | 1X Ii500 Acoustic Imager; 1X Hand Strap; 1X Sensor Array Cover; 1X Neckstrap; 1X Usb-C Cable; 1X Li-Ion Battery; 1X Battery Charger; 1X Charging Bay; 1X Connector Set; 1X Hard Case; 1X Guide, Safety Info; 1X Service Plan Activation Card |
| Interface | USB-C |
| Operating Temperature Range | -10 to 45°C |
| Range | 0.5 to 50 meters (1.6 to 164 feet) |
| Storage | 20 GB |
| Type | Acoustic Leak Detector |
