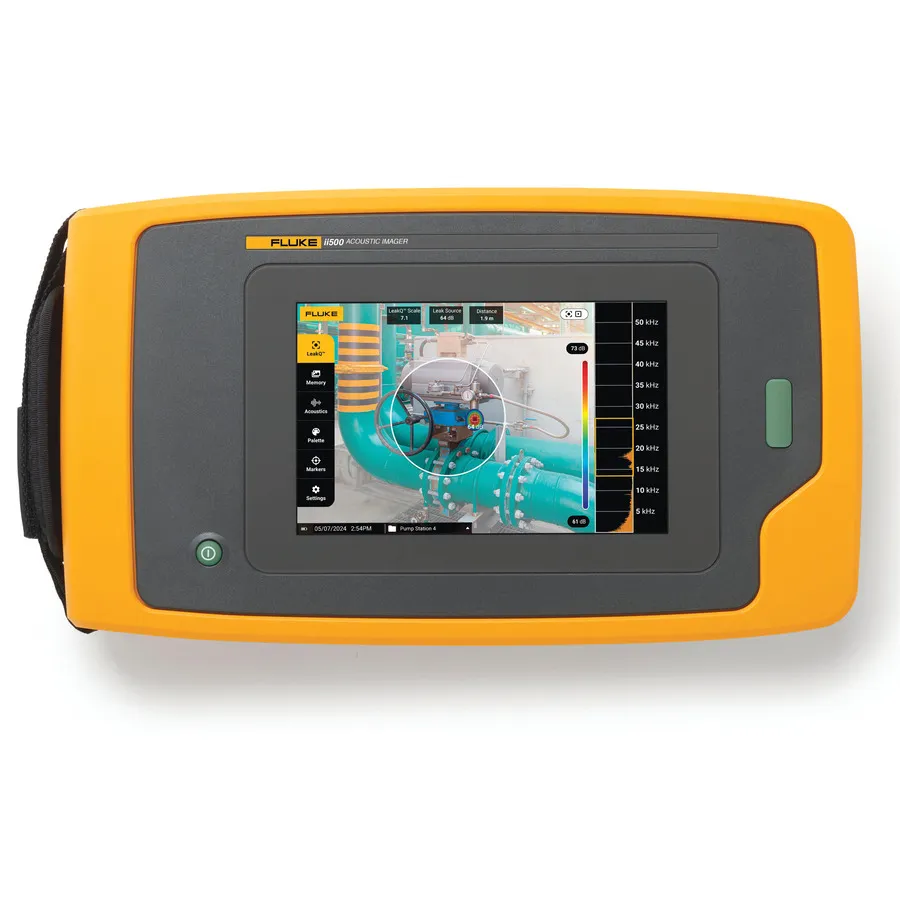

Fluke FLUKE-II500 Acoustic Imager
Request a quote
Fluke FLUKE-II500 is an acoustic imager that visualizes compressed gas and air leaks in real time with frequency range 2–52 kHz, detection range up to 50 meters, and LeakQ technology.
Product details
| Model | FLUKE-II500 |
| Manufacturer | Fluke |
| Category | Environmental Test & Measurement |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-II500 Acoustic Imager is a handheld device that visualizes sound energy to identify and locate leaks in compressed air, gas, and steam systems. Using an integrated acoustic array of sensitive microphones, the ii500 generates a SoundMap overlay on visual images, automatically adjusting for the selected frequency to eliminate background noise and make leak detection straightforward.
Key Features
- Frequency range 2–52 kHz for comprehensive acoustic detection
- Detection range up to 50 meters depending on ambient conditions
- LeakQ technology — Leak size scale (1–10) for quick assessment
- 7-inch LCD display with backlight, readable in sunlight
- Integrated acoustic array with highly sensitive microphones
- SoundMap visualization overlaid on visual images for intuitive interpretation
- 20 GB internal storage for images and videos (up to 5 minutes)
- 6-hour battery life for full shift operation
- USB-C connection for data transfer and file management
- Customizable inspection profiles for different detection types
Applications
- Compressed air system leak detection and maintenance
- Natural gas and industrial gas system inspection
- Steam system diagnostics
- Vacuum system monitoring
- Facility maintenance and energy efficiency audits
Included Accessories
- ii500 Acoustic Imager unit
- Hand strap for secure grip
- Sensor array cover for protection
- Neckstrap for hands-free carrying
- USB-C cable for data transfer
- Li-Ion rechargeable battery
- Battery charger with charging bay
- Connector set
- Hard protective case
- User guide and safety documentation
Specifications
| Resolution | 0.3 megapixel |
| Display Type | 7" LCD |
| Series | ii Series |
| Alternate Product Number | 5609242 |
| Display | 1280 x 800 |
| Frequency Range | 2 to 52 kHz |
| Includes | 1X Ii500 Acoustic Imager; 1X Hand Strap; 1X Sensor Array Cover; 1X Neckstrap; 1X Usb-C Cable; 1X Li-Ion Battery; 1X Battery Charger; 1X Charging Bay; 1X Connector Set; 1X Hard Case; 1X Guide, Safety Info |
| Interface | USB-C |
| Operating Temperature Range | -10 to 45°C |
| Range | 0.5 to 50 meters (1.6 to 164 feet) |
| Storage | 20 GB |
| Type | Acoustic Leak Detector |
