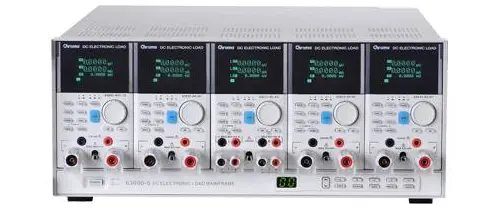

Chroma 63600-5 Modular DC Electronic Load
Request a quote
Chroma 63600-5 is a 5-slot modular DC electronic load mainframe supporting up to 10 channels and 2000W maximum power for multi-output power supply testing.
Product details
| Model | 63600-5 |
| Manufacturer | Chroma |
| Category | Electronic Loads |
| Availability | Made to order |
Description
Overview
The Chroma 63600-5 is a 5-slot modular DC electronic load mainframe engineered for comprehensive power supply testing. It accommodates flexible module combinations to support up to 10 channels and delivers a maximum total power capacity of 2000W, making it ideal for testing multi-output AC/DC power supplies, DC/DC converters, chargers, batteries, adapters, and power electronic components.
Key Features
- 5-slot modular mainframe configuration supporting up to 10 channels
- Maximum power capacity of 2000W with five 400W modules
- Ultra-low voltage operation at 0.4V typical (80A)
- Multiple load modes: CC, CR, CV, CP, and CZ (capacitive load simulation)
- Automatic OCP testing and Pmax measurement
- Real-time power supply load transient response simulation
- Ethernet, USB, and optional GPIB interfaces
- Full protection including OC, OP, OT protection and OV alarm
- High-precision voltage and current measurement
- User-defined waveforms and 100 programmable presets
Applications
- Multi-output AC/DC power supply testing
- DC/DC converter evaluation
- Charger and adapter testing
- Battery and fuel cell characterization
- Server and ATX PSU testing
- Research, development, production, and incoming inspection
Specifications
| Maximum Voltage | 600V |
| Maximum Power | 2kW |
| Maximum Current | Not Applicable |
