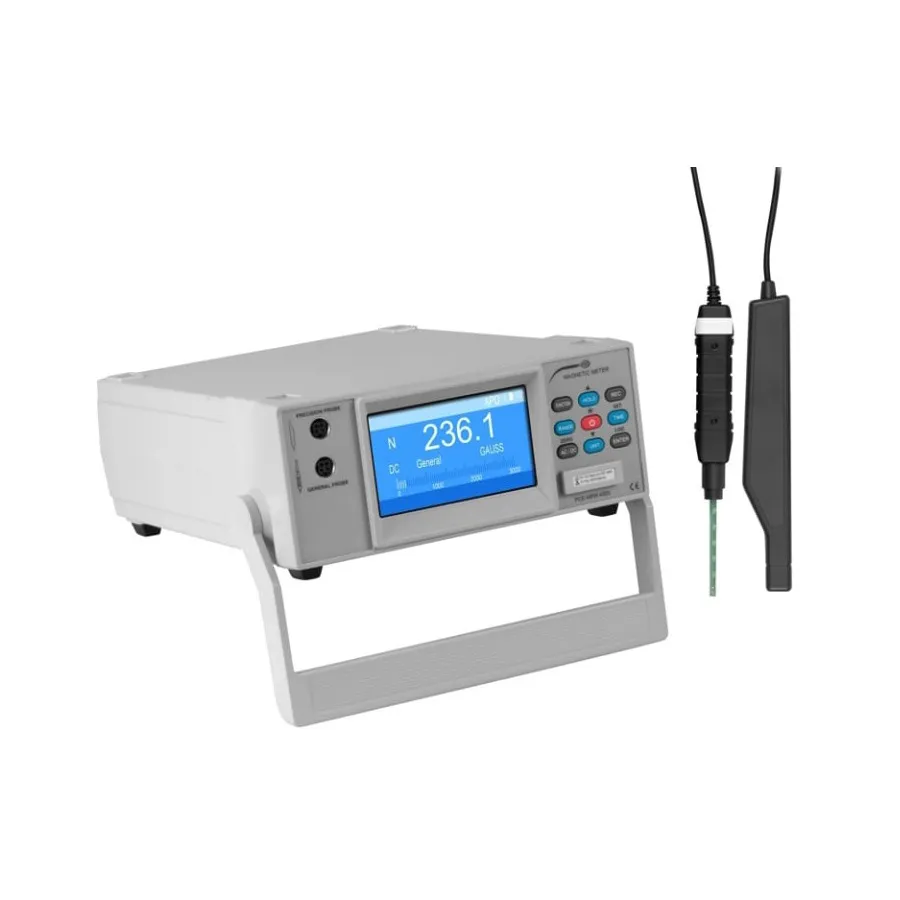

PCE Instruments PCE-MFM 4000 Benchtop Magnetometer

Overview

The PCE Instruments PCE-MFM 4000 is a benchtop magnetometer engineered for precise measurement of static and changing magnetic fields in laboratory and quality assurance settings. Supplied with two interchangeable sensors—a standard sensor for general measurements and a precision sensor for low-field measurements—the magnetometer accommodates a wide range of measurement applications. With automatic temperature compensation and support for both DC and AC magnetic field measurements, this device delivers reliable results for quality control, testing, and research applications.

Key Features

• Dual sensor design: standard sensor (0-3000 mT / 0-30,000 G) and precision sensor (0-300 µT / 0-3000 mG)
• Measures both DC and AC magnetic fields with automatic temperature compensation
• Polarity indication for DC magnetic field measurements
• Selectable units: mG, µT, G, mT
• Data-logging function with adjustable storage intervals (1 to 3600 seconds)
• Max, min, and hold functions
• Stores measurement data in Excel format on SD memory card
• Up to 99 individual measurements can be saved manually
• Serial interface for PC connection and data analysis
• Bright, easy-to-read display
• Automatic switch-off function
• Powered by 6 x 1.5V AA batteries or 9V plug-in power supply

Applications

• Laboratory testing and quality assurance measurements
• Research and development of magnetic materials
• Electromagnetic compatibility (EMC) testing
• Stationary magnetic field monitoring in production facilities
• Academic and industrial research

Included Accessories

• Standard sensor (0-3000 mT range)
• Precision sensor (0-300 µT range)
• SD memory card
• 6 x 1.5V AA batteries
• Instruction manual
